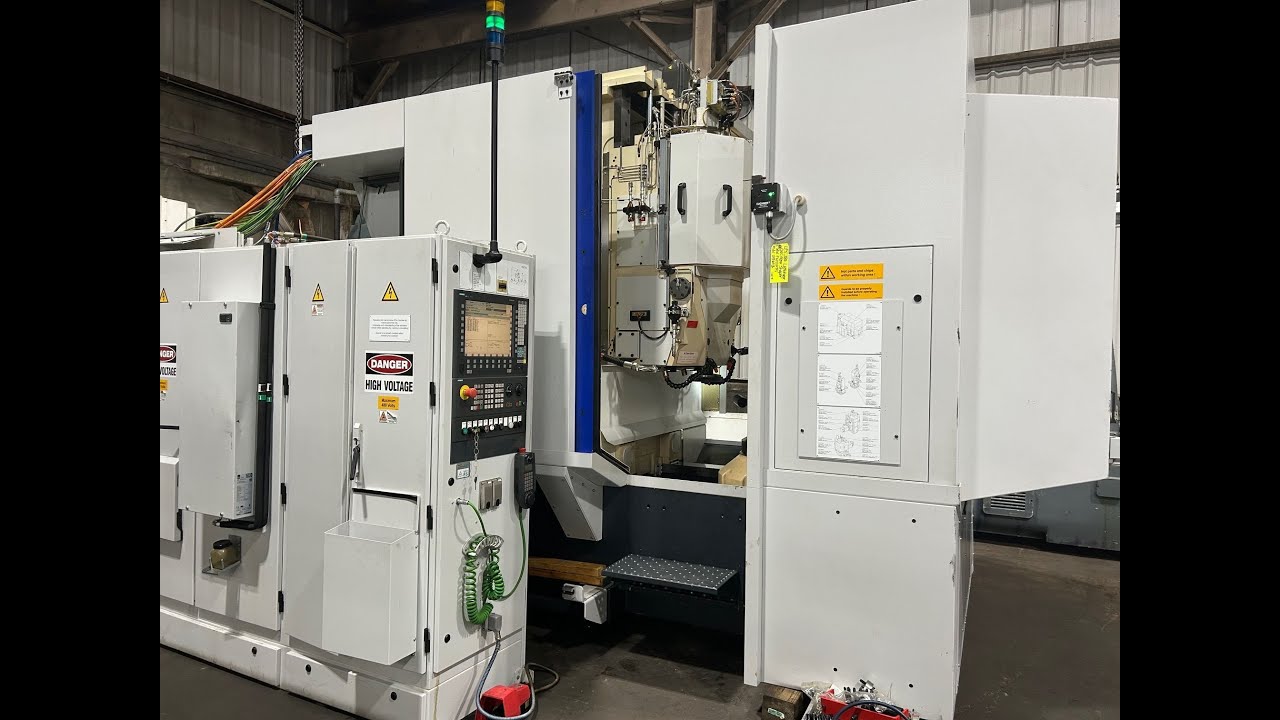

LIEBHERR LFS 380 - Gear Shaper

Specifications Print Specs
Model: LFS 380
Year:
Stock #: 25603
Highlights:
  • Siemens 840D Control
  • Spur Guide
  • Extended Column Tailstock W/Center
  • Tilting Column
  • 180 Degree Ring Loader
  • Chip Conveyor
  • Hydraulic System
  • Coolant System
  • Mist Collector
  • Manuals
  • Stack Light
  • Work Lights
  • CE Mark
  • 480 Volt
Machine Specifications
Year
Manufacturer
LIEBHERR
Module
6.0
Maximum Face Width
8.26"
Cutter Spindle Diameter
4.33"
Steady Column Axial Travel
9.84"
Control Manufacturer
Siemens
Guide
Spur
Maximum Workpiece Diameter
14.96"
Minimum Center Distance
1.96"
Maximum Center Distance
17.71"
Cutter Head Slide
9.84"
Stroke
3.937"
Maximum Stroke Speed
1500.0
Diametral Pitch
4.0"
Maximum Table Speed
30 RPM
Tiltable Column Range
-5.0

    Specifications:

  • Maximum Gear Diameter: 14.96"
  • Maximum Workpiece Outside Diameter: 14.96"
  • Maximum Gear Face: 8.26"
  • Maximum Center Distance: 17.71"
  • Minimum Center Distance: -1.96"
  • Maximum Spindle Stroke: 3.937"
  • Radial Speed Relating To 3.937" Diameter: 147.63 IPM
  • Column, Maximum Axial Travel: 9.84"
  • Cutter Spindle Diameter: 4.33"
  • Cutter Head, Maximum Normal Module: 0.23"
  • Cutter Head, Stroke Rate Range: 20 DS/MM-600 DS/MM
  • Cutter Head, Maximum Spindle Speed: 30 RPM
  • Cutter Head, Angular Setting/Vertical: +/-0,5 DEGREE
  • Cutter Head, Drive Motor: 48 HP
  • Cutter Head Slide, Stroke: 9.84"
  • Cutter Head, Angular Setting Vertical: +/- 0.5 DEGREES
  • Cutter Head Slide, Maximum Cutter Speed: 70.87 IPM
  • Cutter Spindle Speed, Maximum: 30 RPM
  • Tailstock, Maximum Travel: 21.25"
  • Maximum Normal Module: 6
  • Maximum Number of Strokes: 600 DS/MM
  • Stroke Drive Motor: 50 HP
  • Approximate Machine Dimensions: 215" X 78" X 140"
  • Approximate Machine Weight: 32,000 LBS
