Auctions and Liquidation

Riley Gear Corporation NY

Precision & Custom Gear Facility Closure and Consolidation Auction Sale

Bid Now Terms Conditions
Sale Type: Online Auction
Date: February 27, 2025 | 10:00 AM ET
Preview: February 26, 2025
Address: 61 Felton Street North Tonawanda, New York
Contact Name: Nick Gibbs
Email: Nick Gibbs
Description: Auction sale of Riley Gear Corporation's New York facility. Equipment to include Kapp Niles CNC Gear Grinders, Liebherr CNC Gear Hobbers, Liebherr CNC Gear Shaper, Doosan CNC Vertical Turning Centers and more. Precision equipment ranges in size up to 1200 mm Gear Diameter. Additional equipment surplus to operations in Saint Augustine, FL added.

AUCTION DETAILS

Sold in Partnership With:

AVAILABLE ASSETS

Gear Machinery

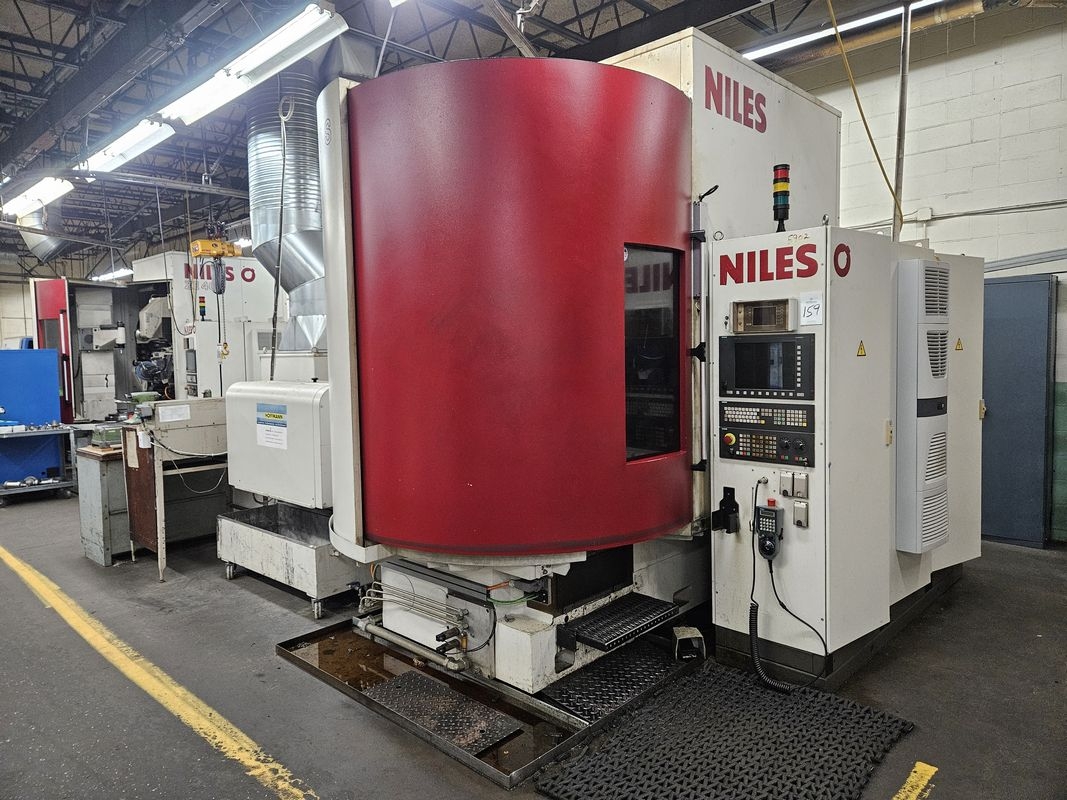

  • Kapp Niles ZE 800 S Gear Profile Grinding Machine S/N 0300257 (2007): Sinumerik 840D Control, Dittel M5100 MA Balancing System, Onboard Inspection, Counter Support, CNC Dresser, Internal Grinding, (2) Internal Grinding Arms, Hoffman Filtration System, Max. Gear Diameter 800 mm, Max. Workpiece Length 1100 mm, Module Range .5 - 20 mm, Max. Face Width 600 mm, Max. Helix Angle -45 to +120 Deg.

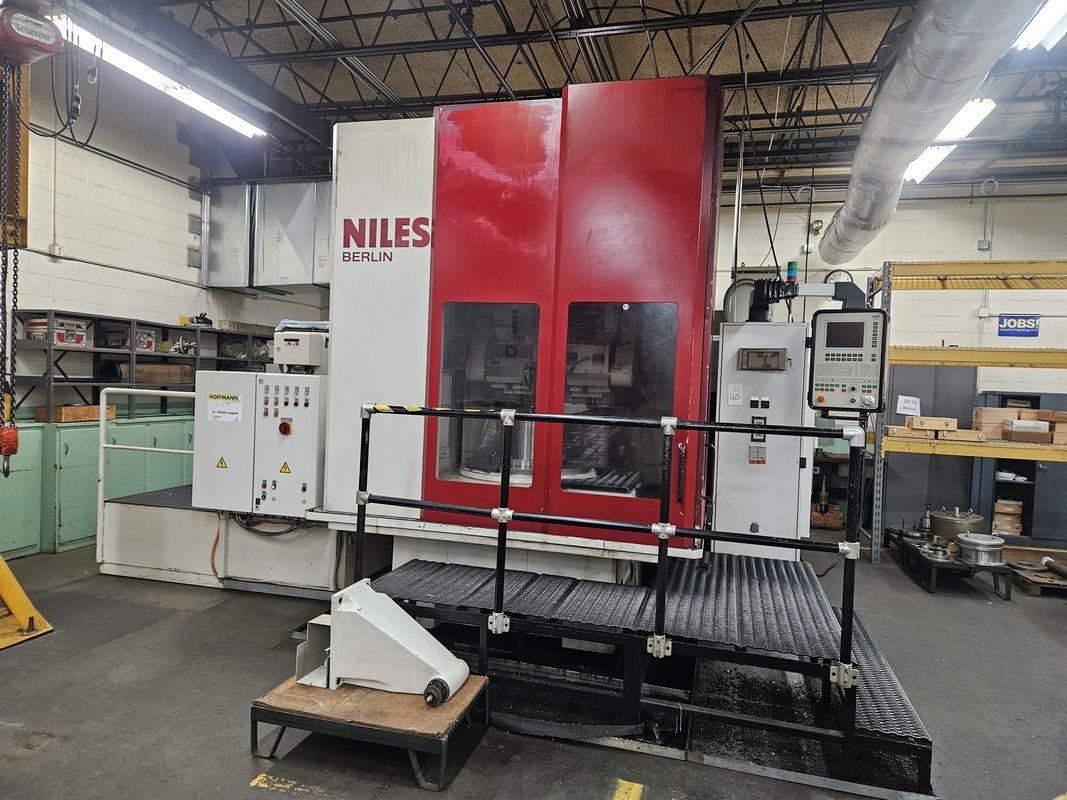

  • Kapp Niles ZP 12 CNC Gear Profile Grinding Machine: Kapp D 200 CNC Control, Mist Collector, Onboard Inspection Internal/External, CBN Capable, Dressable Profile, Control Pendant, CNC Dresser, Internal Grinding, Internal Grinding Arm, Hoffman Coolant Filtration System, Max. Gear Diameter 1250 mm, Max. Center Distance 810 mm, Max. Face Width 1000 mm, Max. Helix Angle -45 to +120 Deg.

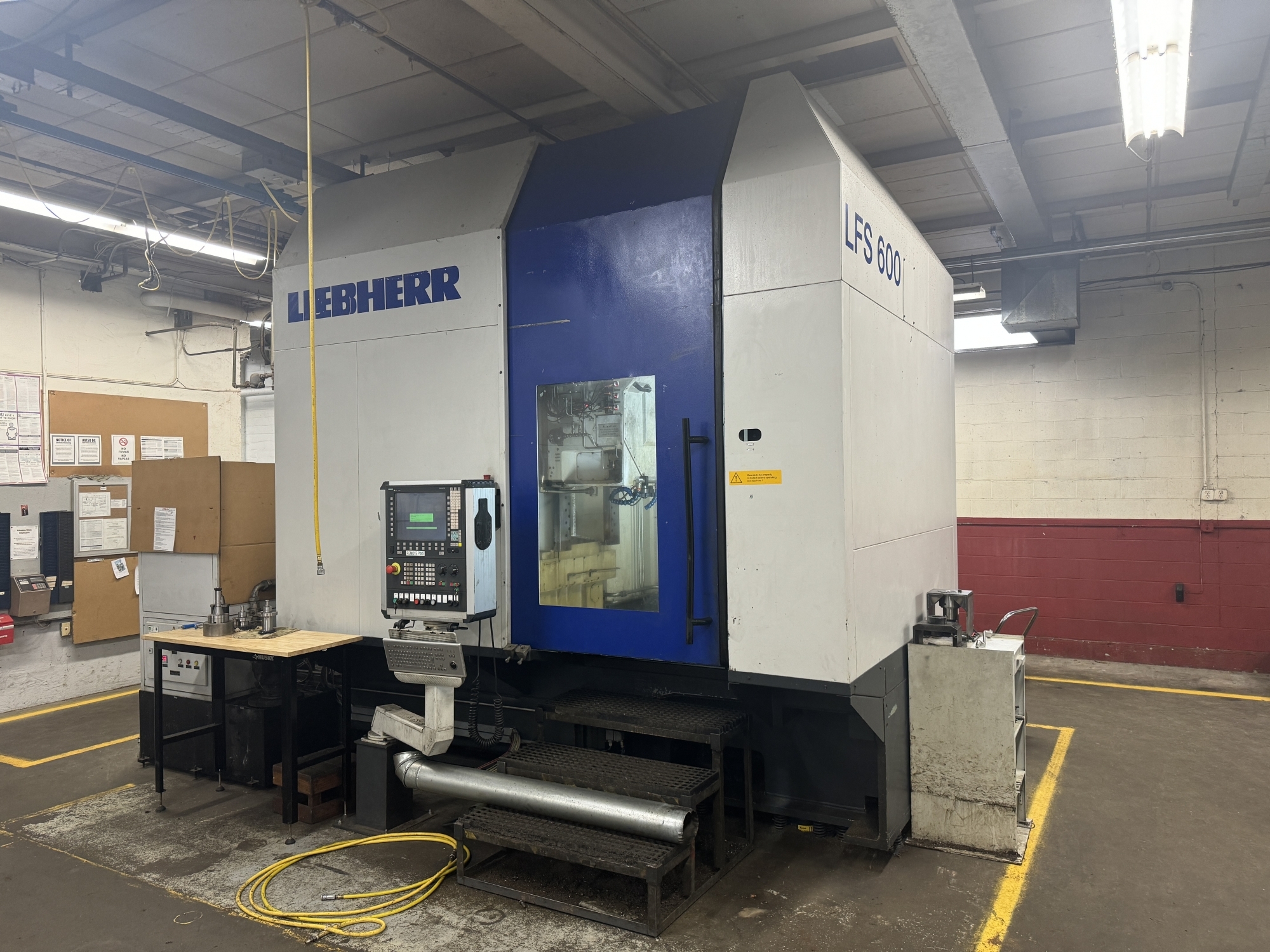

  • Liebherr LFS 600 Gear Shaper, S/N 2144 (2009): Siemens Sinumerik 840 D Control, Pendant Control, Spur Guide, Magnetic Chip Conveyor, Hydraulic Clamping, Coolant System, Chiller, Transformer, Max. Wheel Dia. 600 mm, Max. Module 12 mm, Table Dia. 700 mm, Axial Travel 600 mm, Max. Stroke 240 mm, Cutter Positioning Travel 585 mm

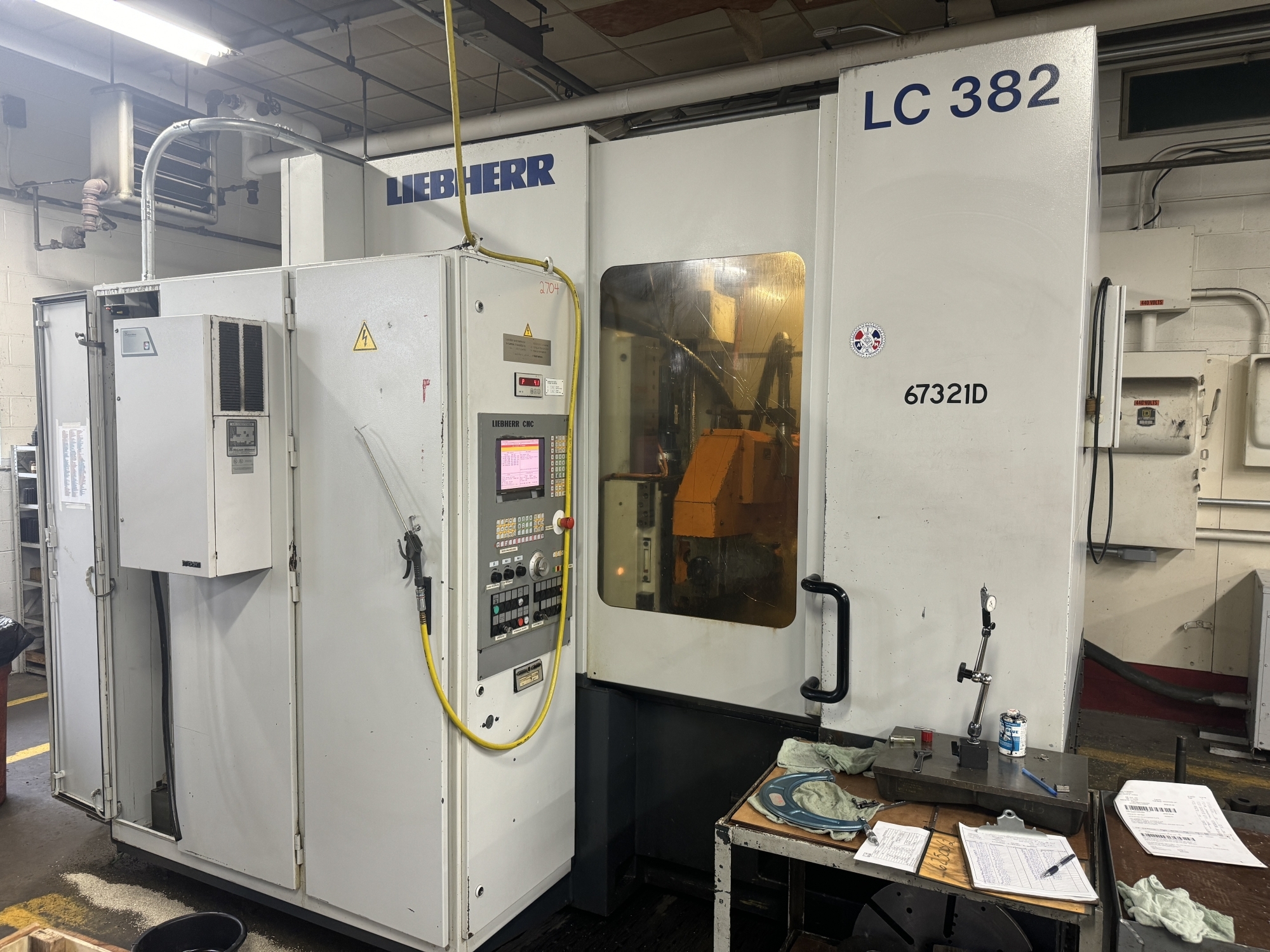

  • Liebherr LC 382 8-Axis CNC Gear Hobber, S/N 1112 (1998): Liebherr LH 90 GH Control, Tailstock, Coolant System, Hob Arbor, Chip Conveyor, Max. Work Piece Dia. 380 mm, Max. Module 7 mm, Max. Face Width 600 mm , Hob Head Swivel Angle +/- 45 Deg.

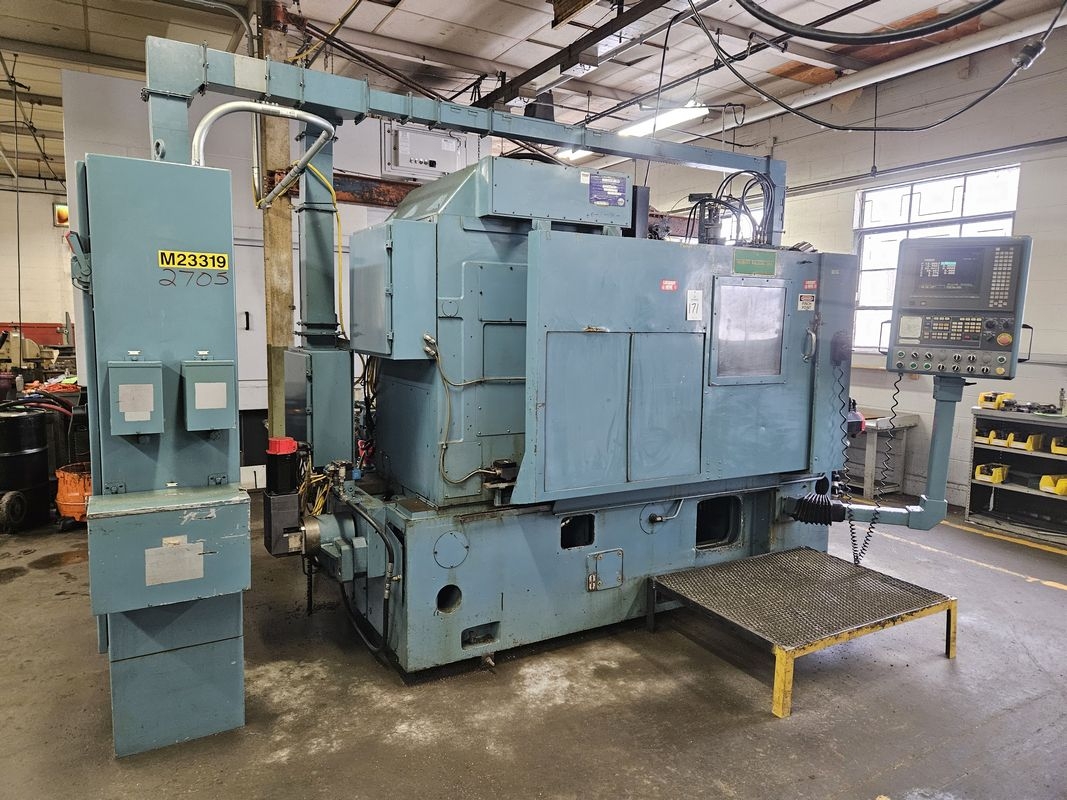

  • Liebherr L 902 6-Axis CNC Gear Hobber S/N 23319: Vermont Machine Tool Retrofit, GE Fanuc Series 16-M Control, Tailstock, Hydraulic Workpiece Clamping, Hob Arbor, Coolant System, Max. Work Piece Dia. 900 mm, Max. Module 12 mm, Diametral Pitch 2.5, Max. Hob Diameter 190 mm, Hob Head Swivel Angle +/- 45 Deg., Hob Shift 200 mm

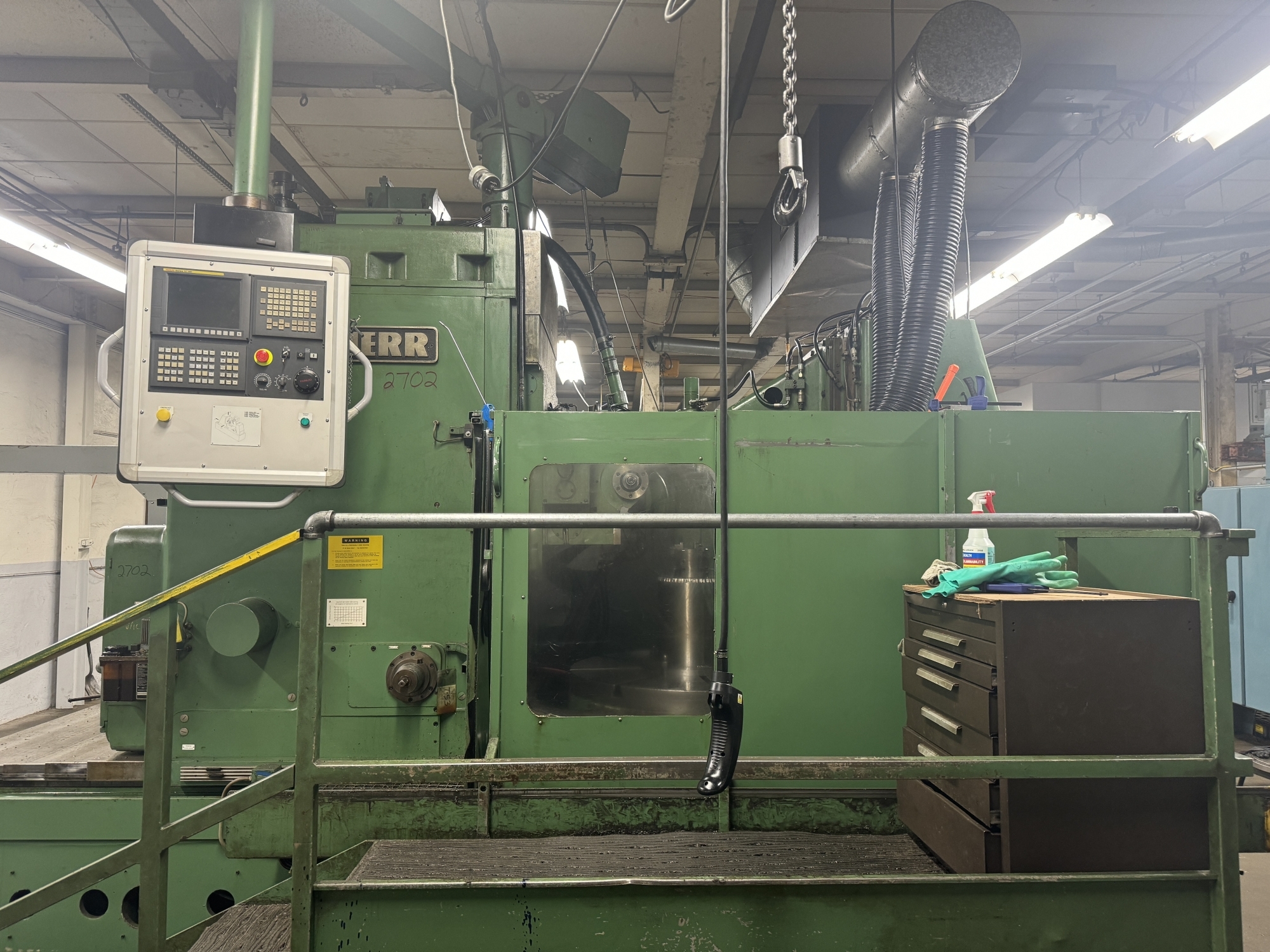

  • Liebherr L 1202 6-Axis CNC Gear Hobber, S/N 1409/04: Machine Tool Builders Fanuc Series Oi-MD Retrofit Control, Tailstock, Coolant System, Hob Arbor, Backlash Comp, Max. Work Piece Dia. 1250 mm, Table Dia. 1100 mm, X-Axis Axial Travel 740 mm, Y-Axis Tangential Travel 248 mm, Z-Axis Radial Travel 584 mm, A-Axis Hob Swivel – 240 / + 60 Deg

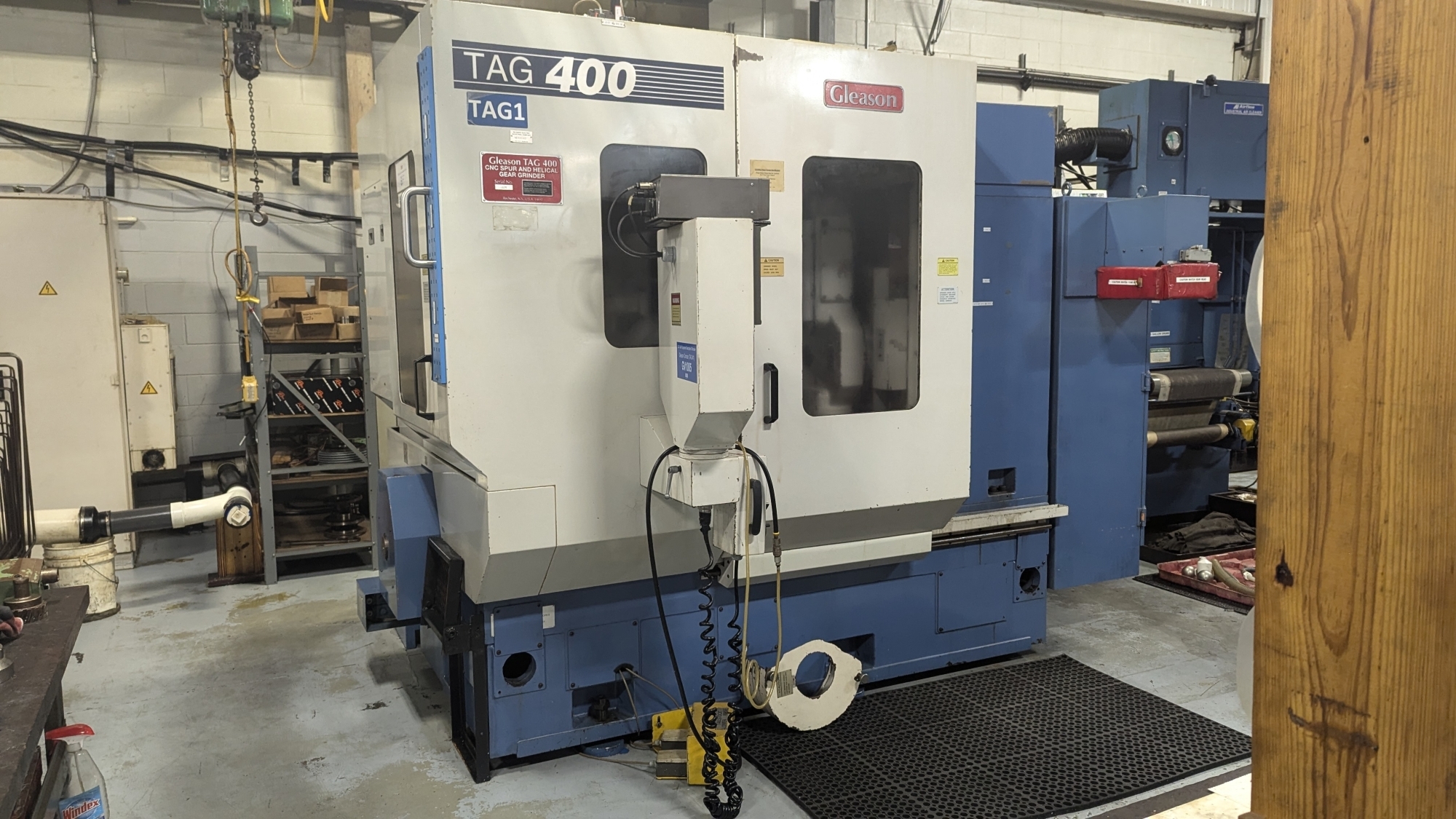

  • Gleason Tag 400 CNC Gear Grinder, S/N 1024: Coolant Filtration System, Mist Collector, Dresser, Workpiece Diameter Max. 15.7”, Distance Between Centers 8”- 31.5”, Swivel Angle +/- 45 Deg., 3 Diametral Pitch, Face Width Max. 8” (Located in St. Augustine, FL)
  • Barber Colman 6-10 Gear Hobber S/N 4633: Triple Thread Index, Arbor Support, Tailstock with Center, 6” Maximum Work Diameter, 10.5” Hob Slide Travel

CNC Machine Tools

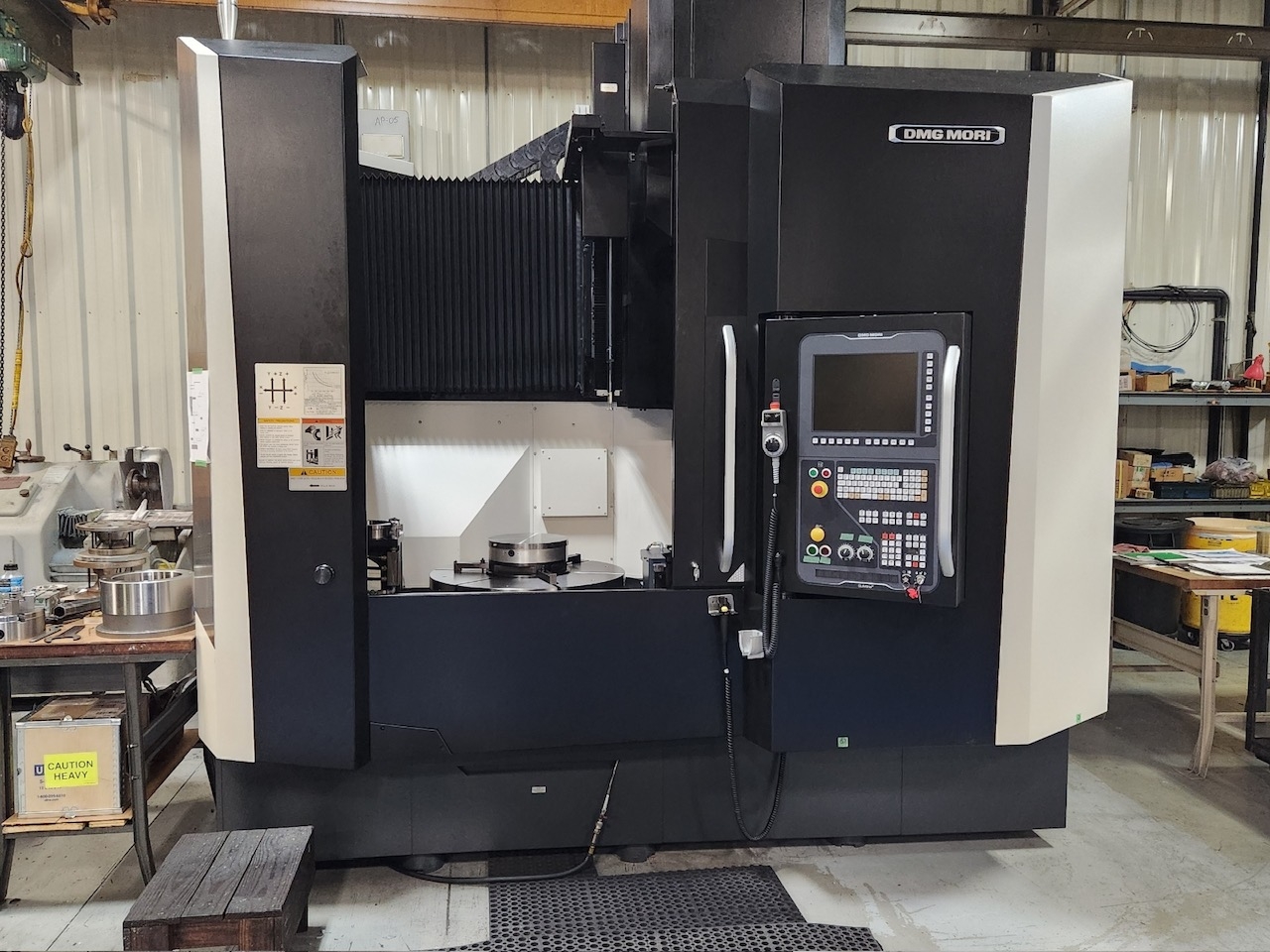

  • DMG Mori (Taiyo Koki) Vertical Mate 85 CNC Vertical Multi-Process Grinding Machine, S/N VM0852405015334 (2024): Max Swing Diameter: 33.5", Max Grinding Diameter: 31.5", Max Workpiece Height: 23.6", Max Grinding Length: 19.7", Max Spindle Speeds: 200-RPM (Working); 10,000-RPM (Grinding), Wheel Spindle: HSK-E100, 2-Position Wheel Spindle Indexing: 0 and 22.5 Degrees, with Fanuc 32iB CNC Control, 6-Position ATC (Located in St. Augustine, FL)

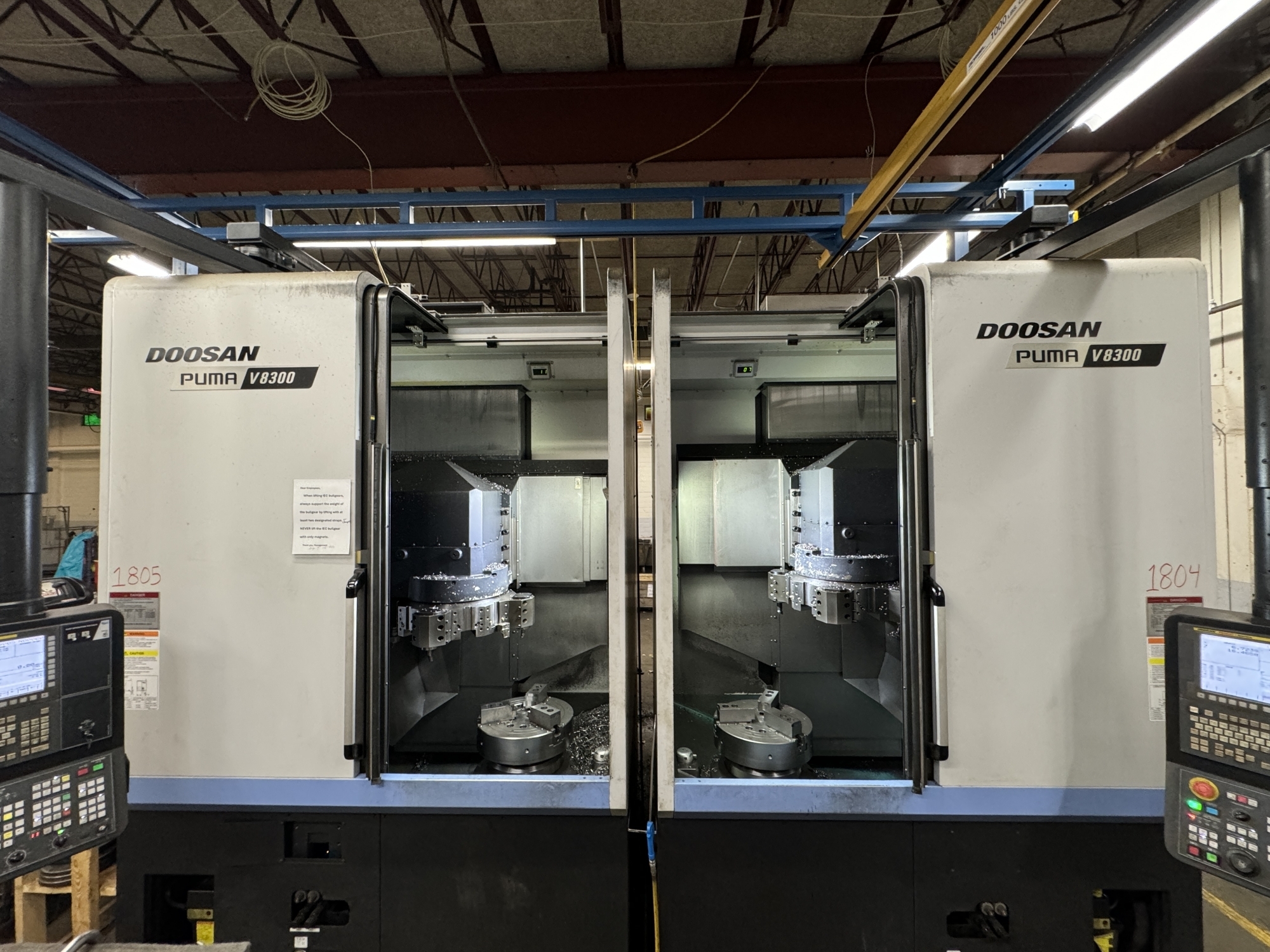

  • Doosan Puma V8300 Vertical Turning Center, S/N MT0048-000116 (2018): Fanuc I series Control, Max. Spindle Speed 2000 RPM, 445 mm Chuck, 12-Position Turret, 1100 mm Swing, Max. Turning Dia. 830 mm, Max. Turning Length 750 mm, Travels; X-Axis 495 mm, Z-Axis 780 mm, Chip Conveyor
  • Doosan Puma V8300 Vertical Turning Center, S/N MT0049-000149 (2017): Fanuc I series Control, Max. Spindle Speed 2000 RPM, 445 mm Chuck, 12-Position Turret, 1100 mm Swing, Max. Turning Dia. 830 mm, Max. Turning Length 750 mm, Travels; X-Axis 495 mm, Z-Axis 780 mm, Chip Conveyor

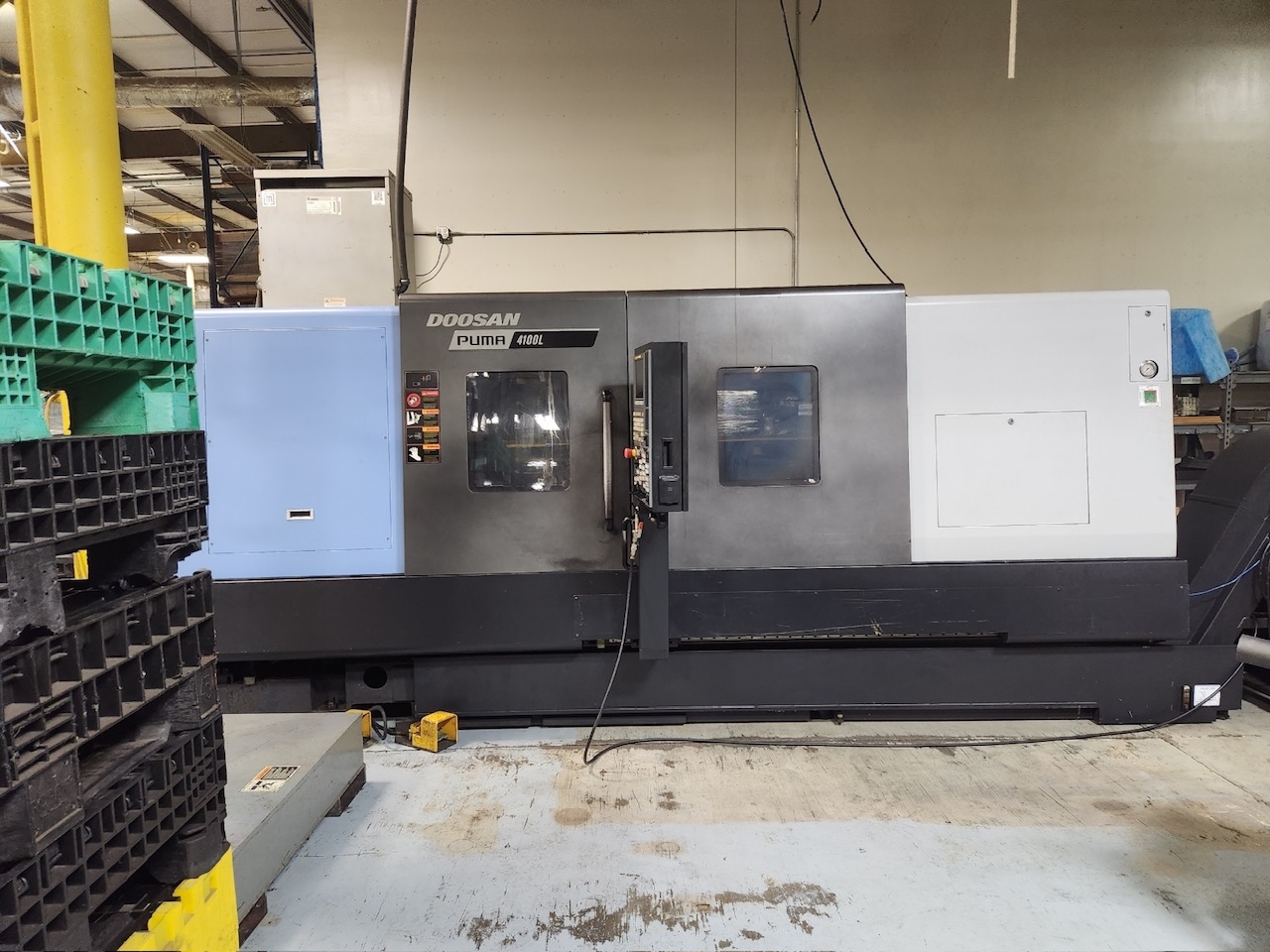

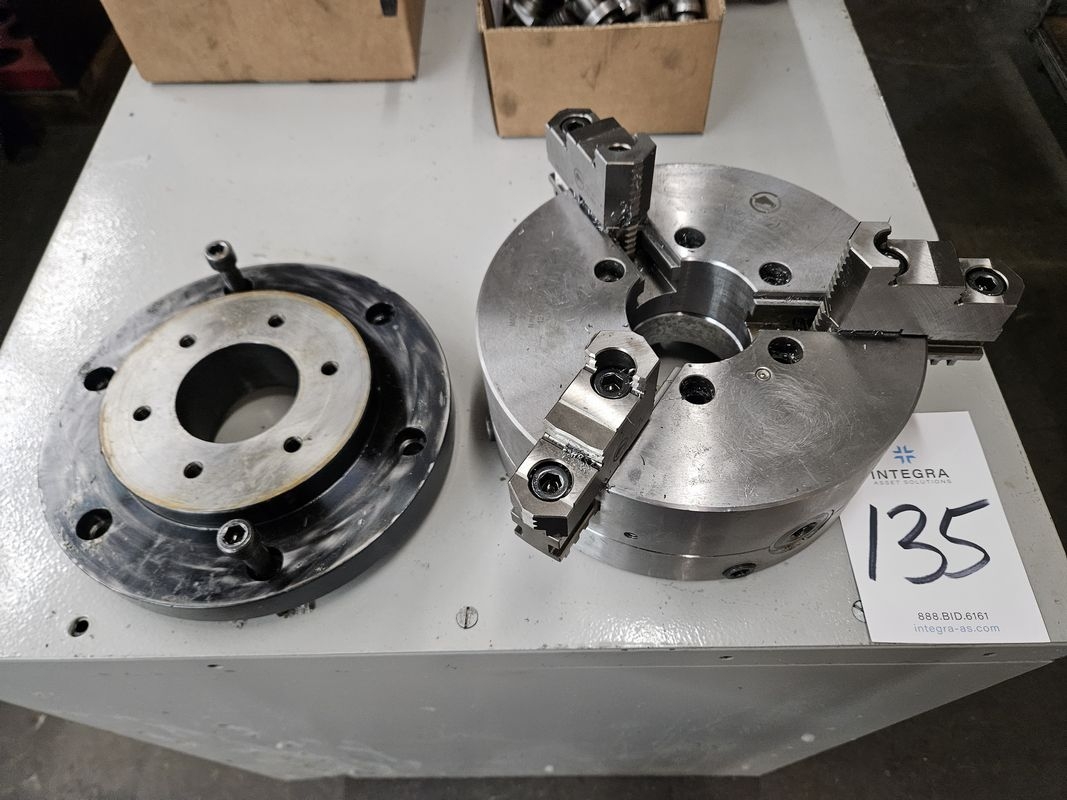

  • Doosan Puma 4100LB CNC Lathe, S/N ML0280-000022 (2015): Max Swing: 31.1" (790mm), Max Turning Diameter: 21.7" (550mm), Max Turning Length: 82.4" (2092mm), Through Hold Diameter: 4.6" (117.5mm), Boring Bar Diameter: 2.5" (60mm), Travels: X-13.8" (352mm); Z-84.8" (2155mm), Rapid Traverse Rate: X-630 IPM (16 m/min); Z- 787-IPM (20 m/min), Chuck Size: 15", Spindle Speed: 2000-RPM, Spindle Motor: 50-HP (37-kW), with Fanuc i-Series CNC Control, Tool Presetter, Samchully HCH-18 18" 3-Jaw Hydraulic Chuck, Schunk Hydraulic Steady Rest, Tailstock, 10-Position Turret, Coolant System, Chip Conveyor (Located in St. Augustine, FL)

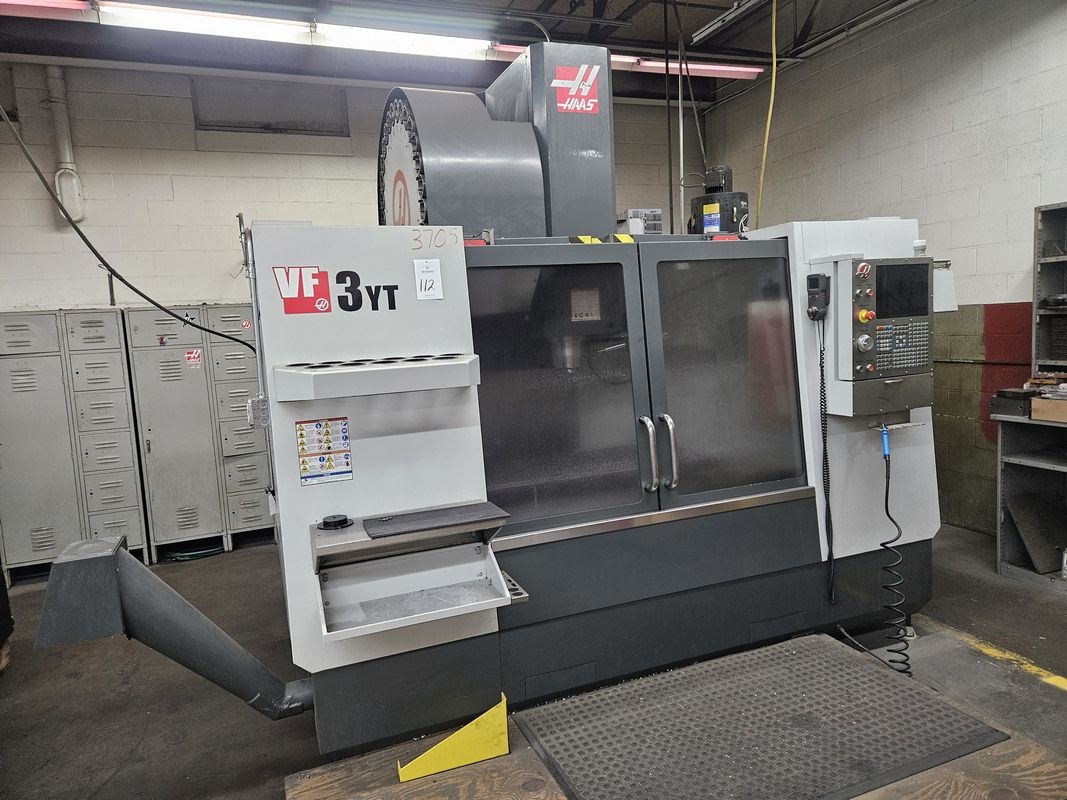

  • Haas VF-3YT/50 CNC Vertical Machining Center, S/N 1100211 (2012): 23" x 52" Table, Travels: X-40; Y-26"; Z-25", CAT 50 Taper, up to 7500-RPM, with 30-Position ATC, Wired For 4th & 5th Axis, Renishaw Probing, Programmable Coolant Nozzle, Chip Auger, 480 Volt

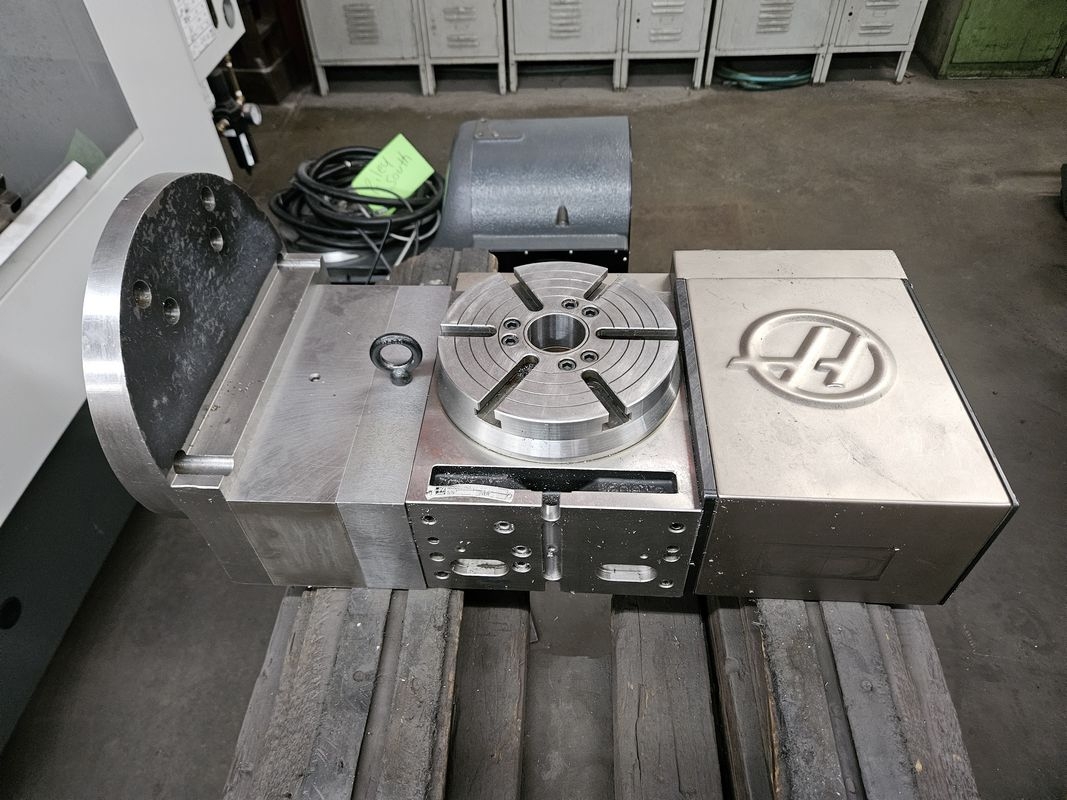

  • Haas TRT-210 4th & 5th Axis Rotary Indexer: S/N 904978A & B
  • Doosan Puma V550R Vertical Turning Center, S/N MT0013-001040 (2011): Fanuc I series Control, Max. Spindle Speed 2000 RPM, 445 mm Chuck, 12-Position Turret, 800 mm Swing, Max. Turning Dia. 730 mm, Max. Turning Length 750 mm, Travels; X-Axis 490 mm, Z-Axis 780 mm, Chip Conveyor
  • Doosan Puma V550L Vertical Turning Center, S/N MT0012-001034 (2011): Fanuc I series Control, Max. Spindle Speed 2000 RPM, 445 mm Chuck, 12-Position Turret, 800 mm Swing, Max. Turning Dia. 730 mm, Max. Turning Length 750 mm, Travels; X-Axis 490 mm, Z-Axis 780 mm, Chip Conveyor

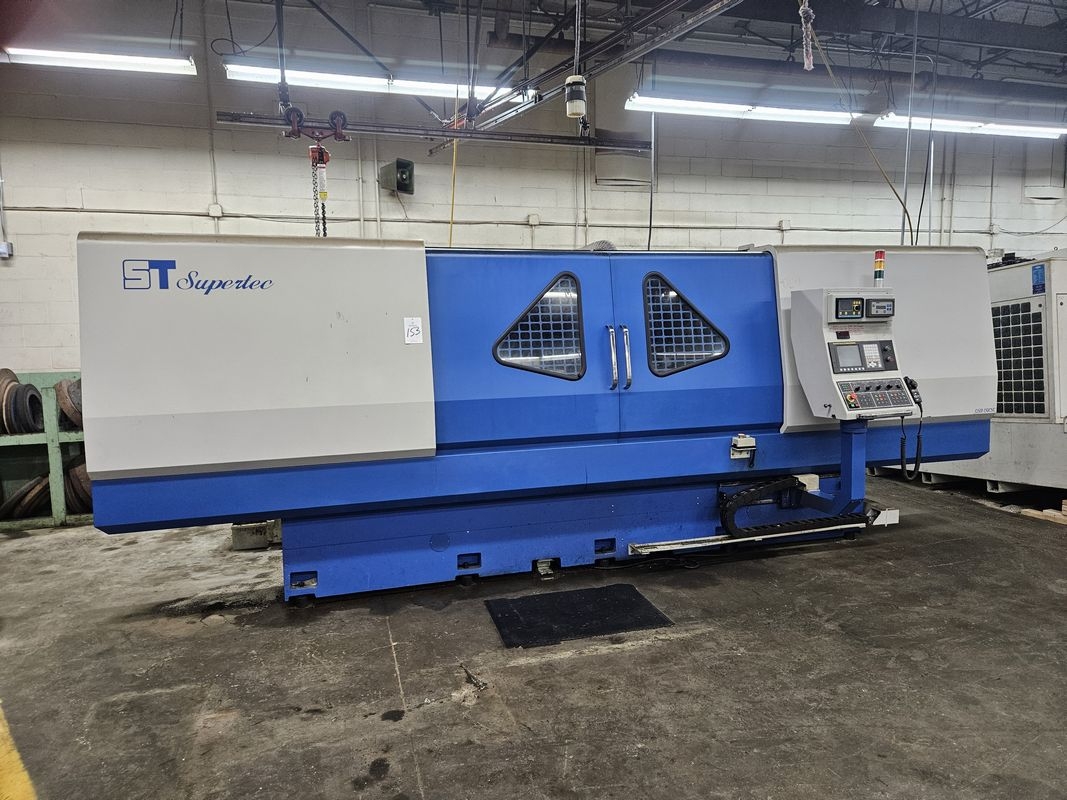

  • Supertec G50P-150CNC Cylindrical Grinder, S/N GT14002 (2014): Fanuc Series Oi Mate-TD Control, 500 mm Swing, 1500 mm Centers, 330 lbs Maximum Load Between Centers, Movamatic ES124 Gaging, SBS SB-1000 Balance Control, Touch Probing, Coolant System w/ Magnetic Separator & Paper Filter

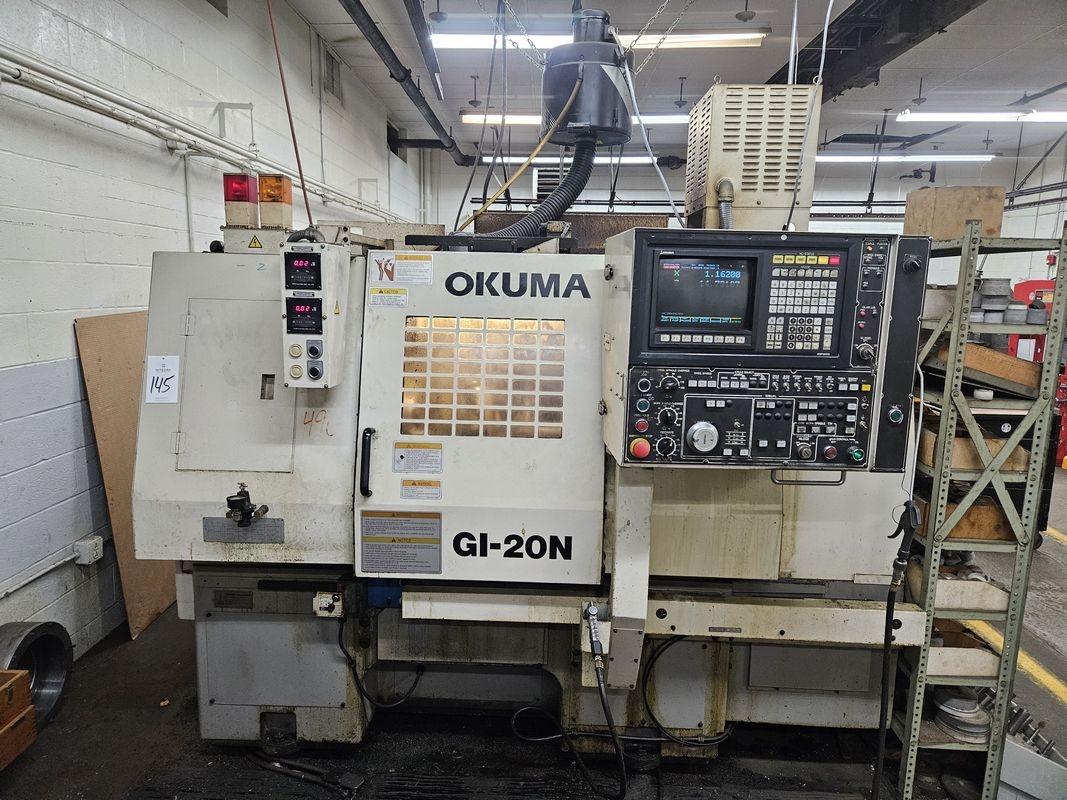

  • Okuma GI-20N CNC Internal Grinder, S/N 0466 (1997): OSP5020G Control, 15.75" Swing, 7.87" Grinding Length, (2) Grinding Spindles, Wheel Dresser, Coolant System w/ Magnetic Seperator & Paper Filter
  • Fortuna FM43D1000S42 CNC Cylidrical Grinder, S/N 15974: Fortuna-tango FM4-CNC Control, 350 mm Swing, 1000 mm Centers, CGI 900 Gaging, Wheel Dresser, Coolant System with Bed Filter

Tool Shop Equipment

  • Nardini ND1785E Engine Lathe:

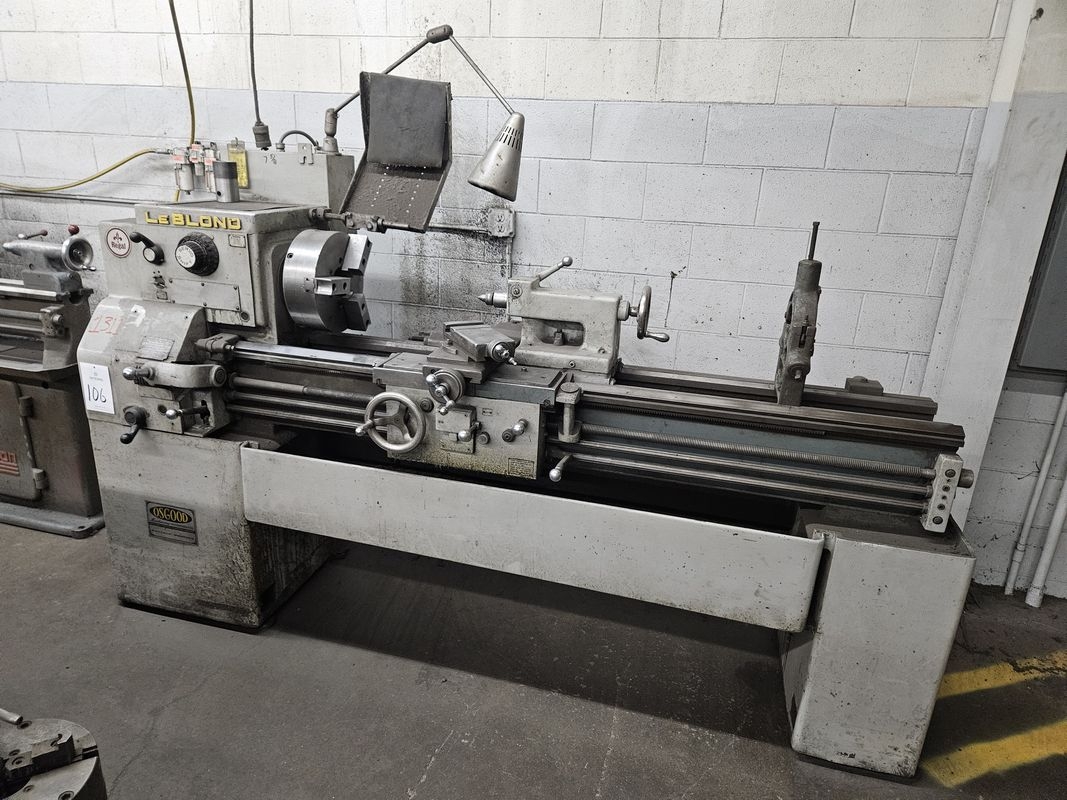

  • LeBlond Regal Servo Shift Engine Lathe:

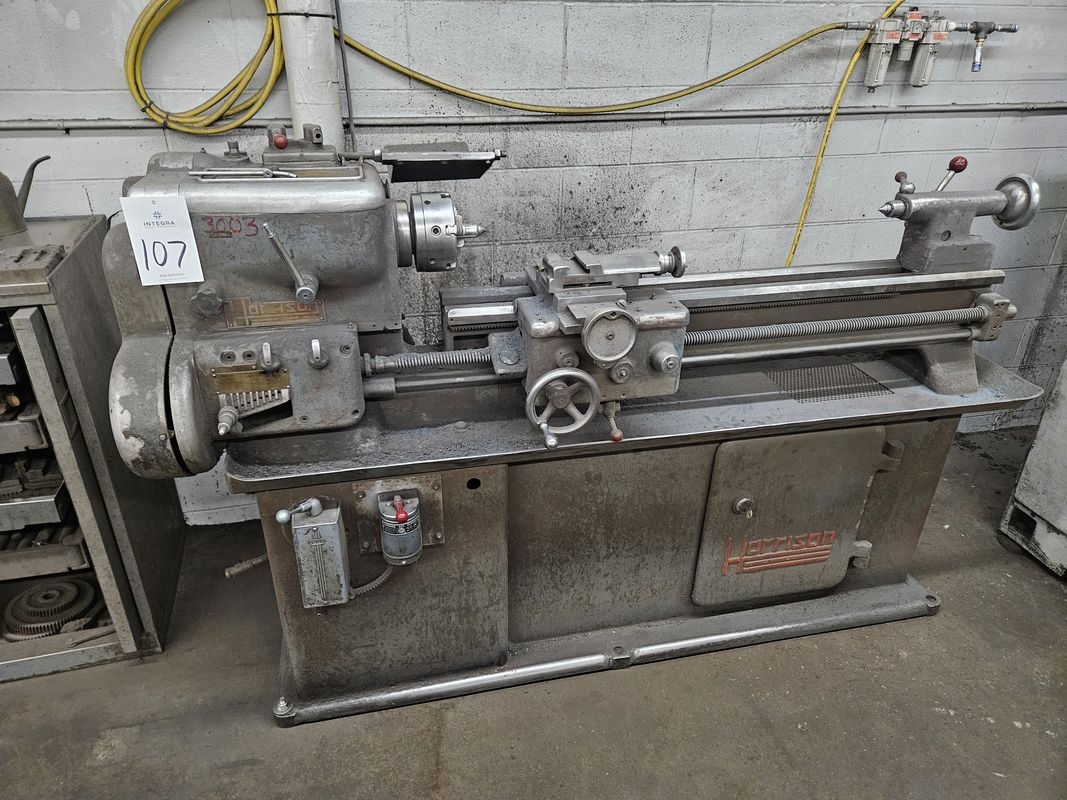

  • Harrison 10" x 36" Engine Lathe:
  • Bridgeport 1.5-HP Vertical Milling Machine:
  • Myford 5" x 12" Plain Cylindrical Grinder:

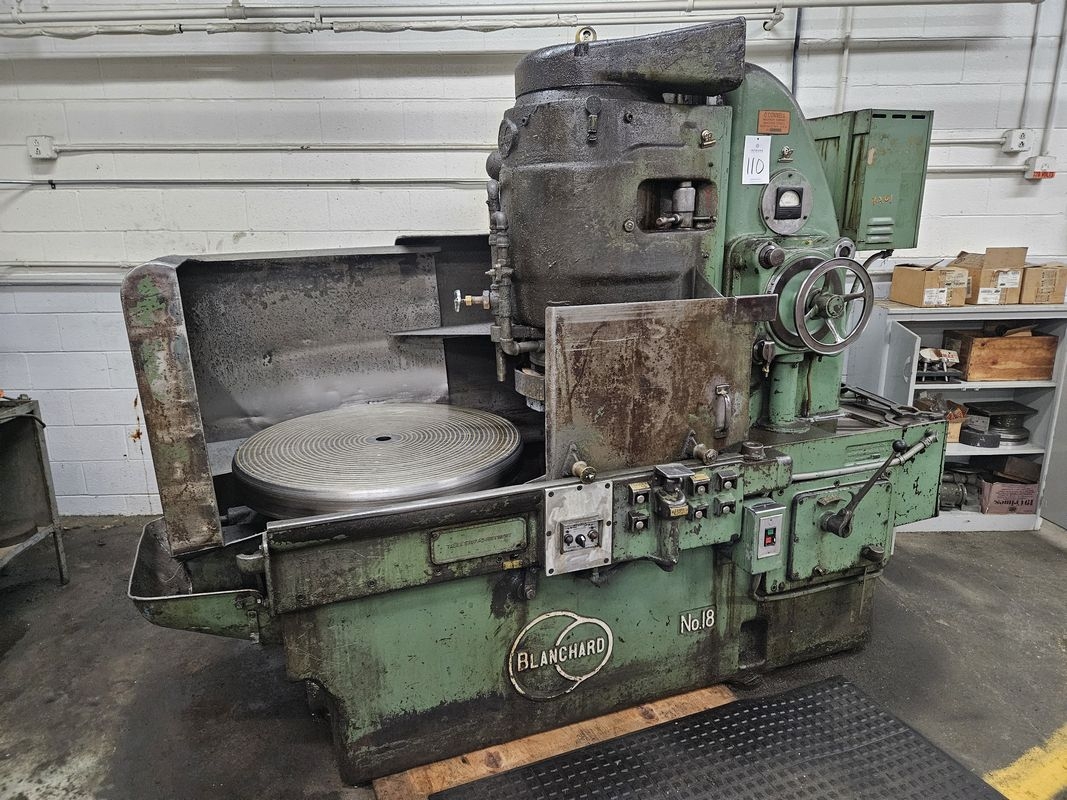

  • Blanchard #18 Rotary Surface Grinder:
  • Cincinnati-Milacron XPT25x1600 Hydraulic Vertical Broach:
  • Grizzly G0962 10" Table Saw:

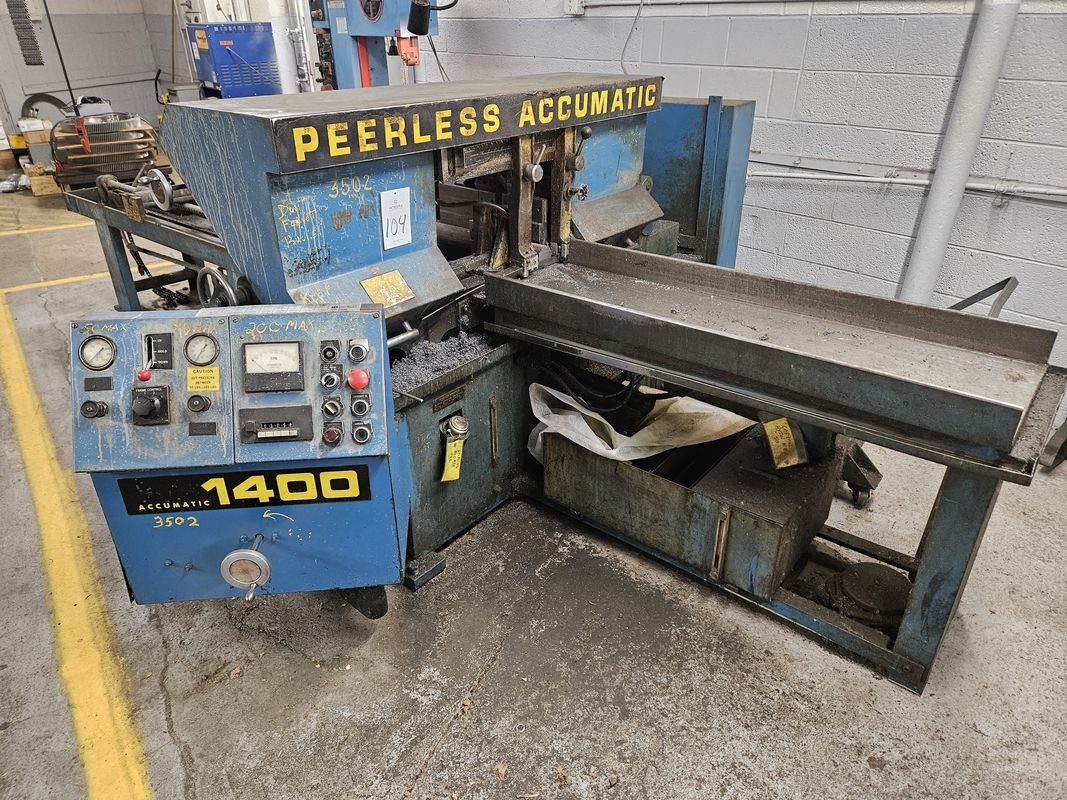

  • Peerless Accumatic 1400 Horizontal Band Saw:

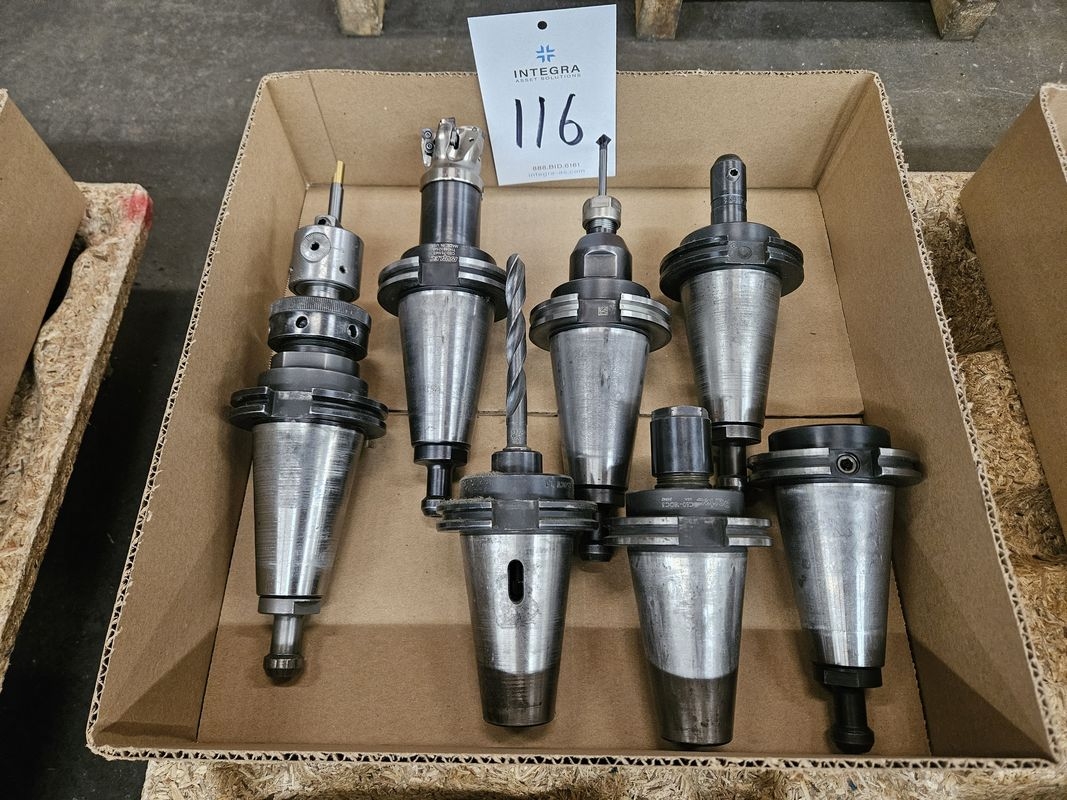

  • Assorted Machining Accessories CAT 50 Tooling, Vises, Milling Heads, etc.

Inspection Equipment

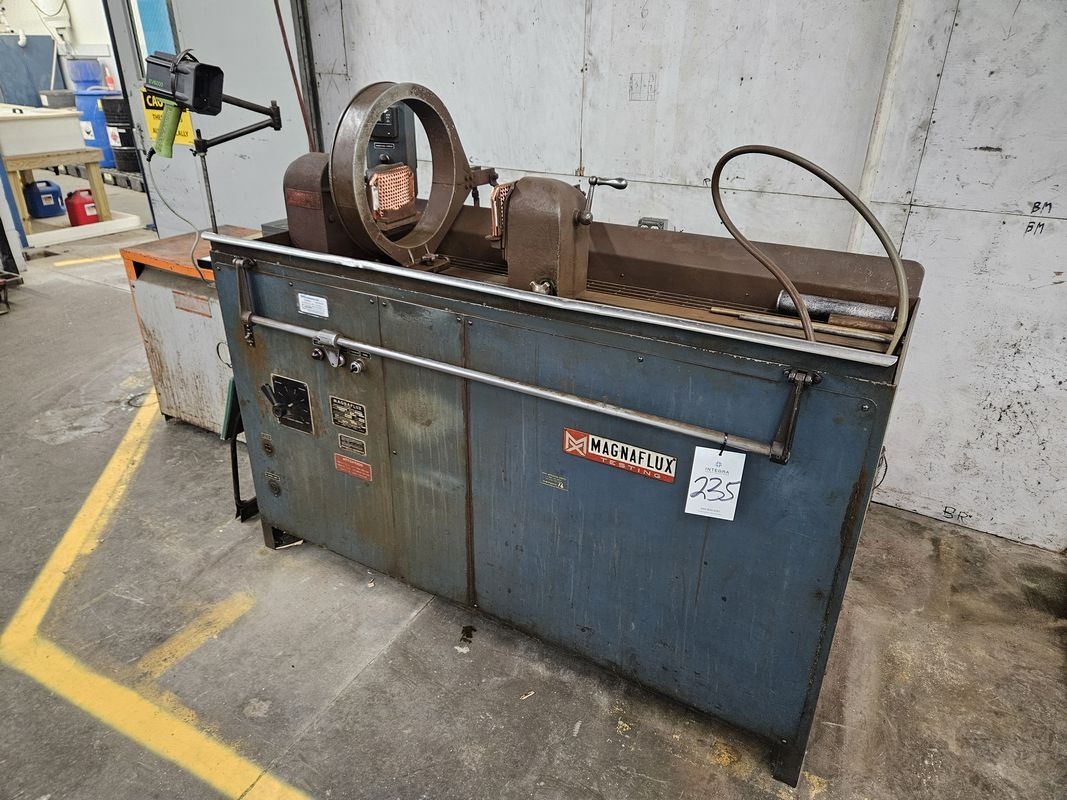

  • Magnaflux TAQ 525 Magnetic Particle Inspection Unit
  • Magnaflux SB 1416 Demagnetizer
  • Scientemp 85-6.8B Industrial Freezer Chest
  • Wilson 3JR Rockwell Hardness Tester
  • Tinius Olsen Hardness Tester
  • Kodak 14" Optical Comparator

Support Equipment

  • (3) Free-Standing Bridge Crane Systems – to 1 Ton, 22’ Span
  • (6) Jib Cranes – to 1-Ton x 12’
  • (15) Cecor DB-244-8P 13.4-Cu.Ft. Dump Containers
