Sale Type: Negotiated Sale
Date: Ongoing
Preview: By Appointment Only
Address: Detroit, MI
Contact Name: Nick Gibbs
Email: nick@gibbsmachinery.com

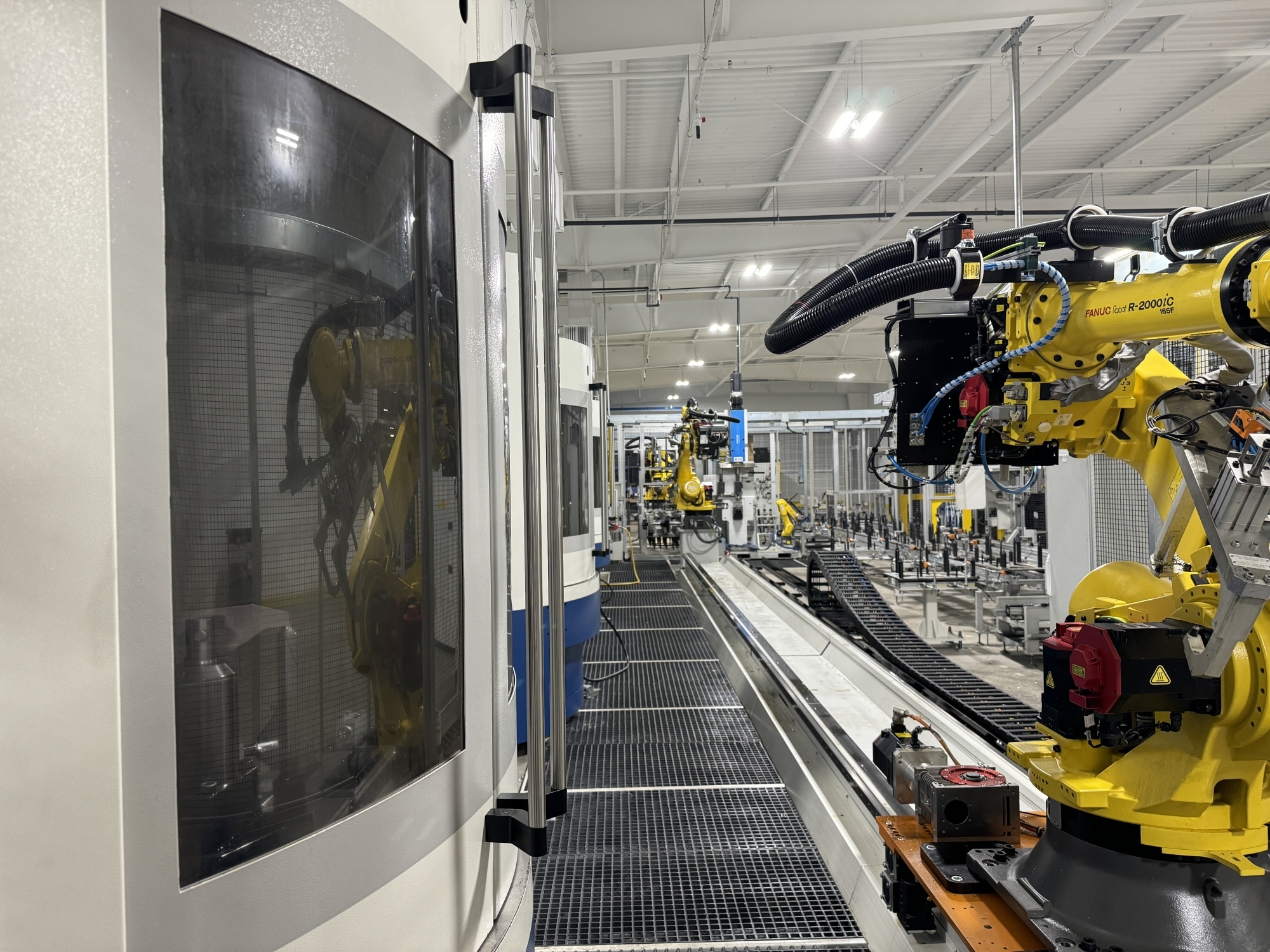

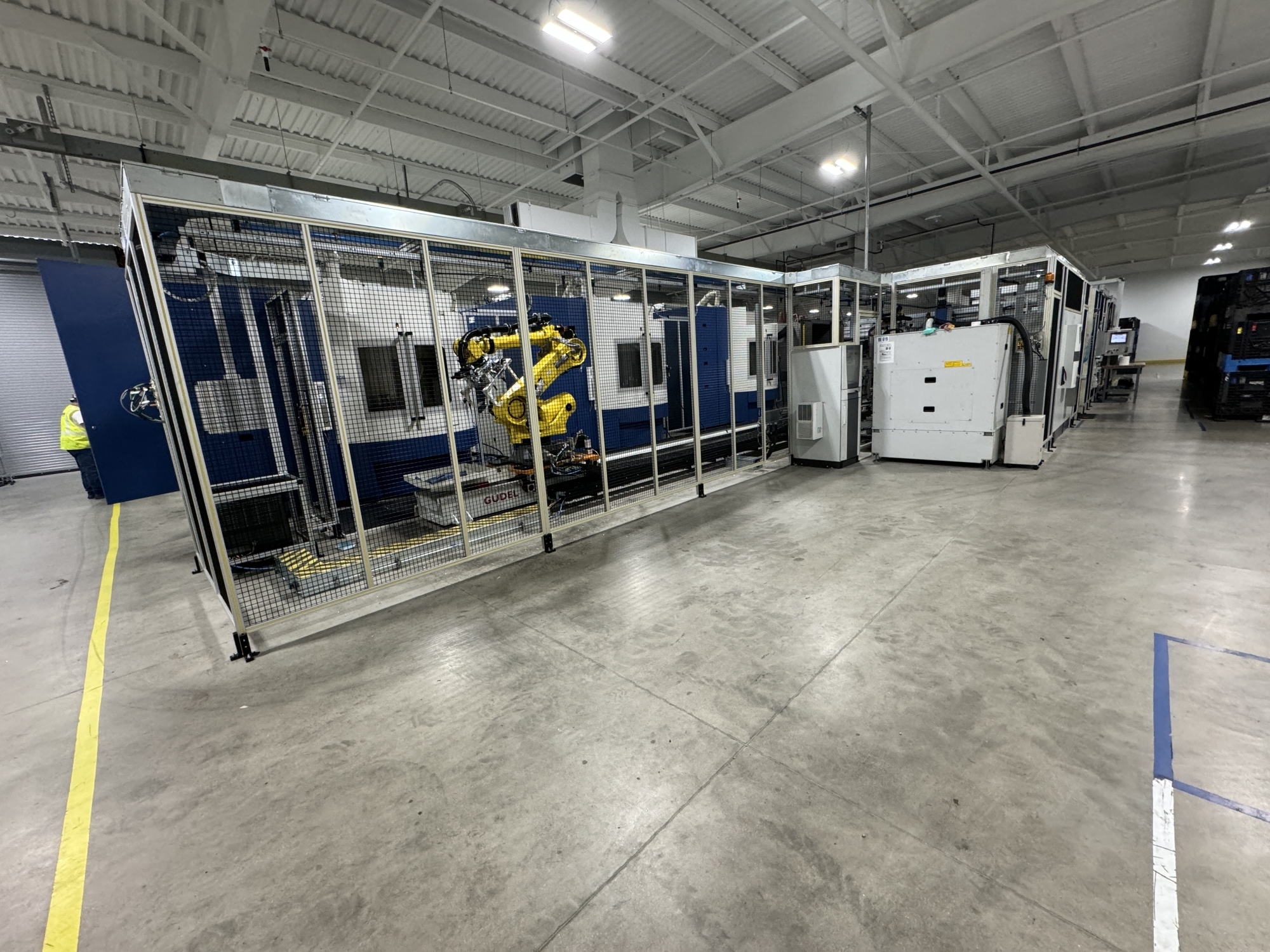

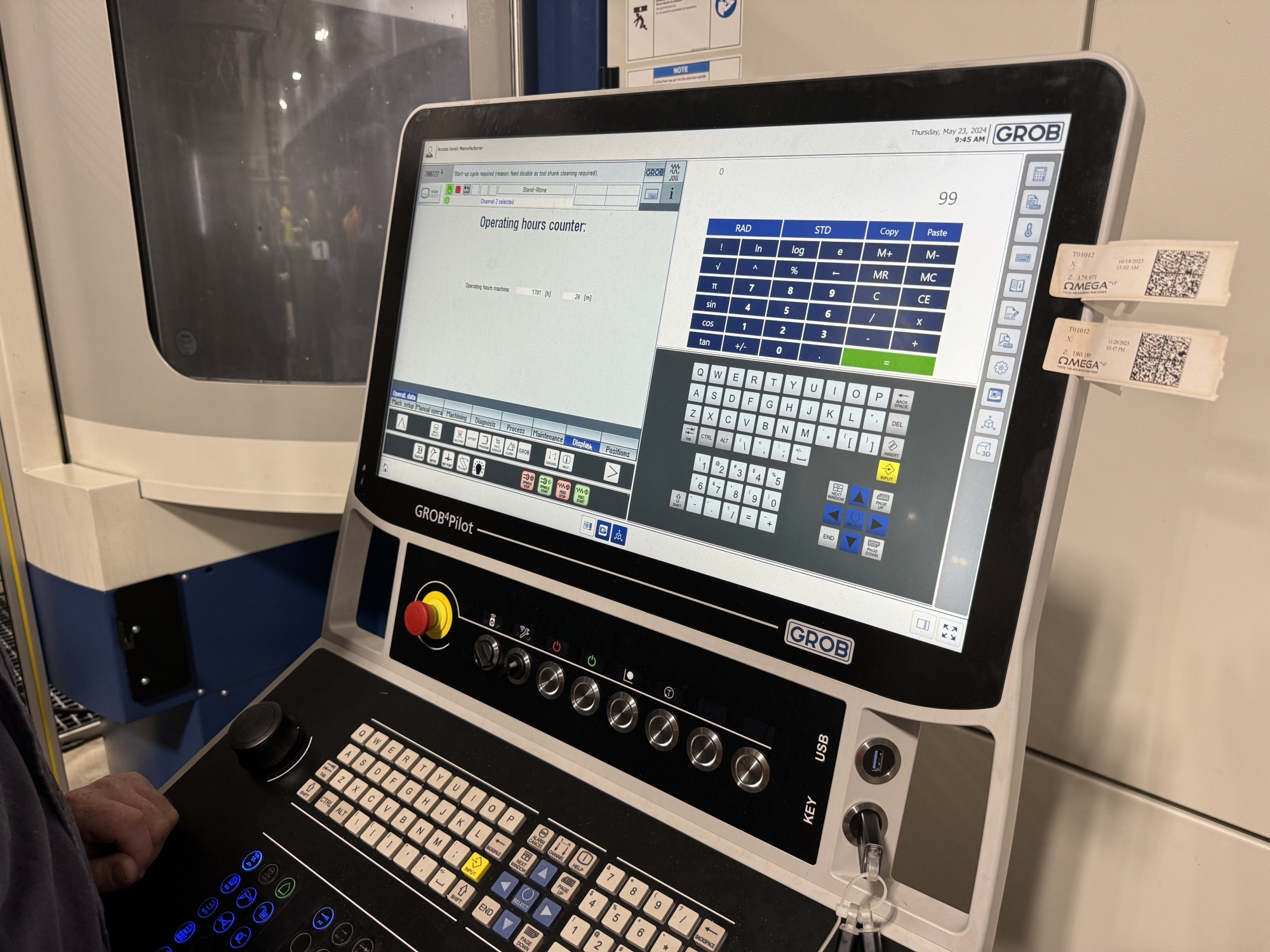

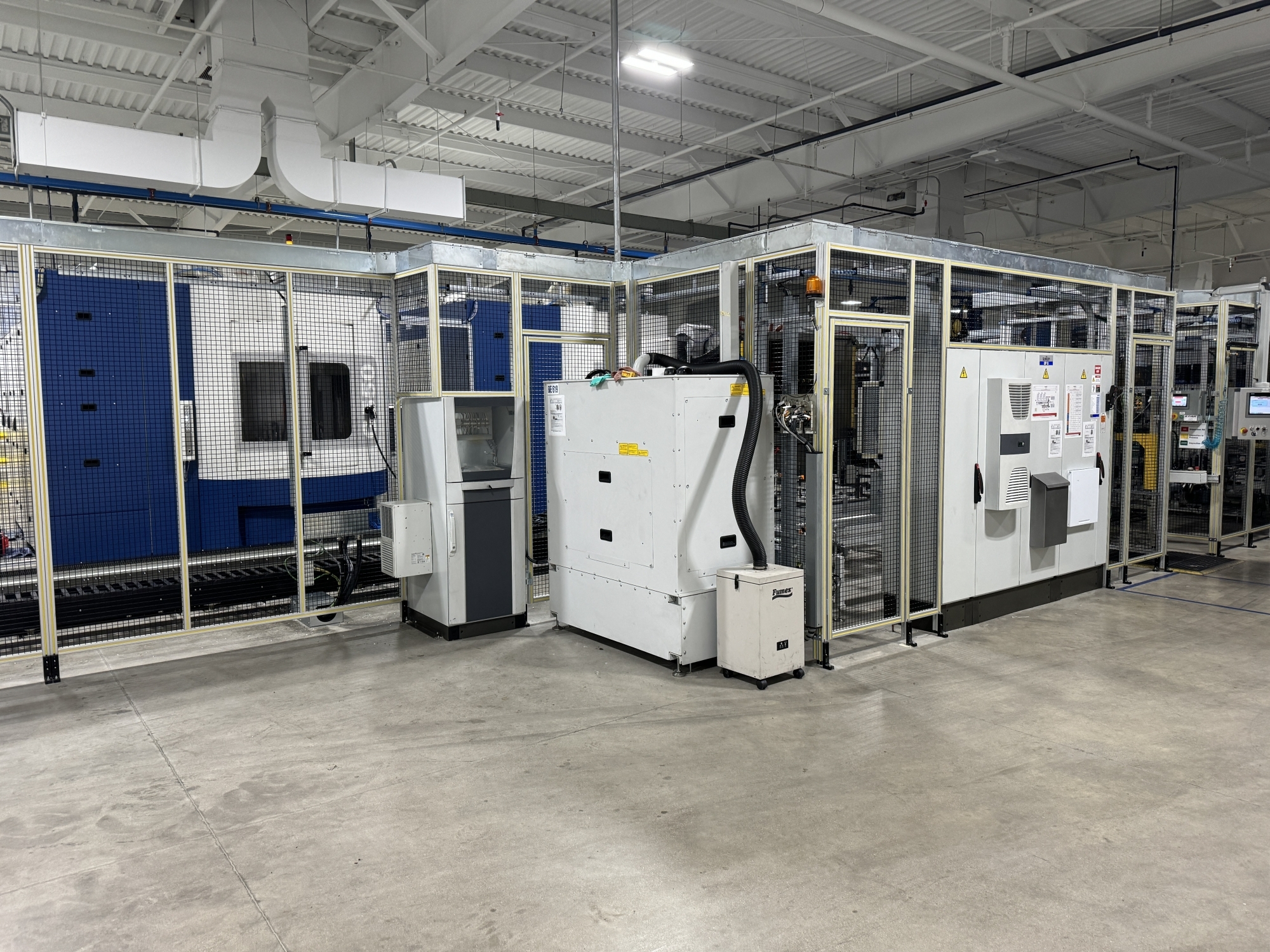

Description: With 1700 Operating Hours, this Grob Flexible Manufacturing System is in like new condition. Comprised of (3) 5-Axis Horizontal Machining Centers, (4) Fanuc Robots, (1) Cabinet Parts Washer, and an enclosed conveyance system, this line will take your production to the next level with immediate delivery.
SystemDETAILS
AVAILABLE ASSETS

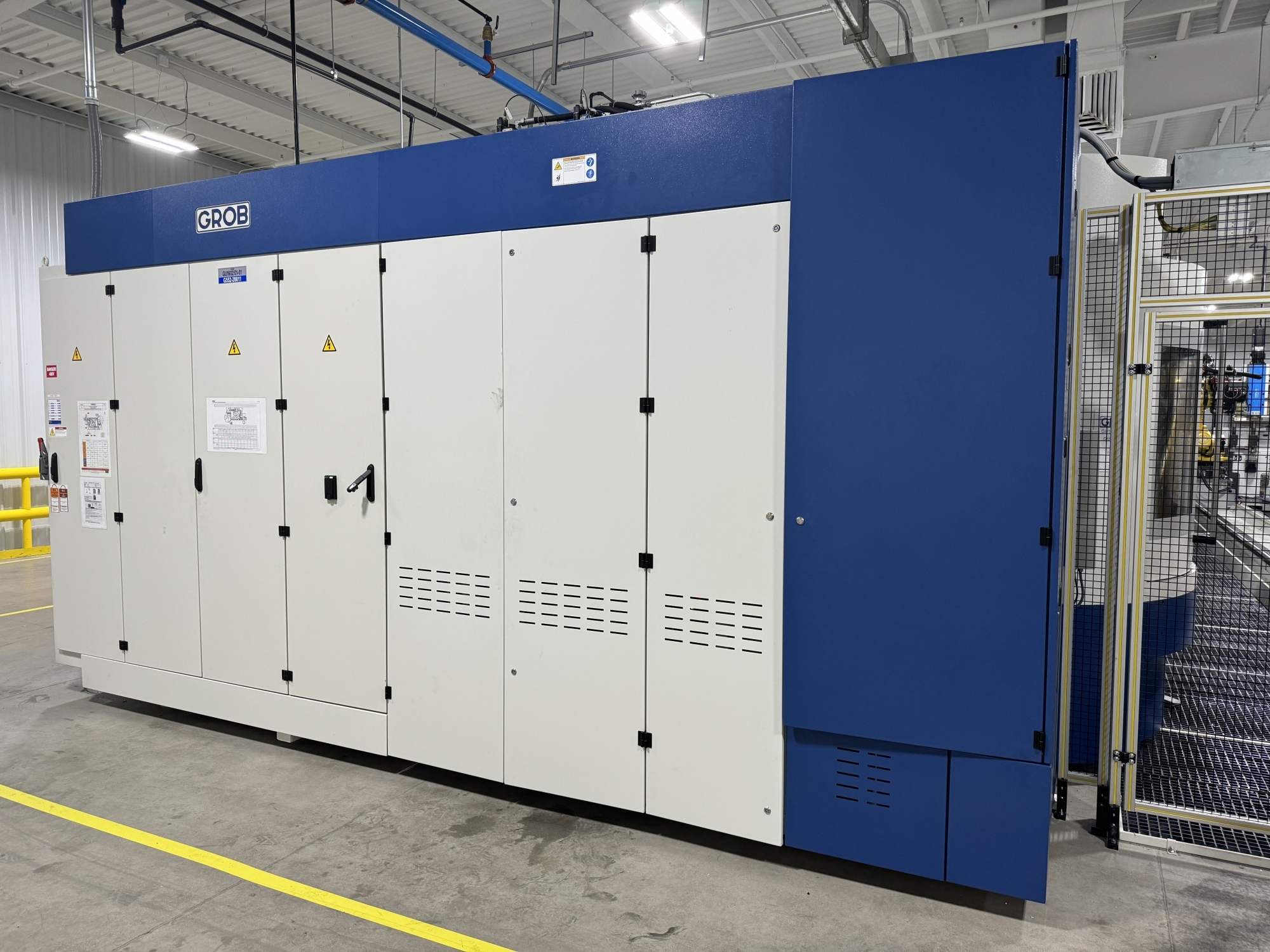

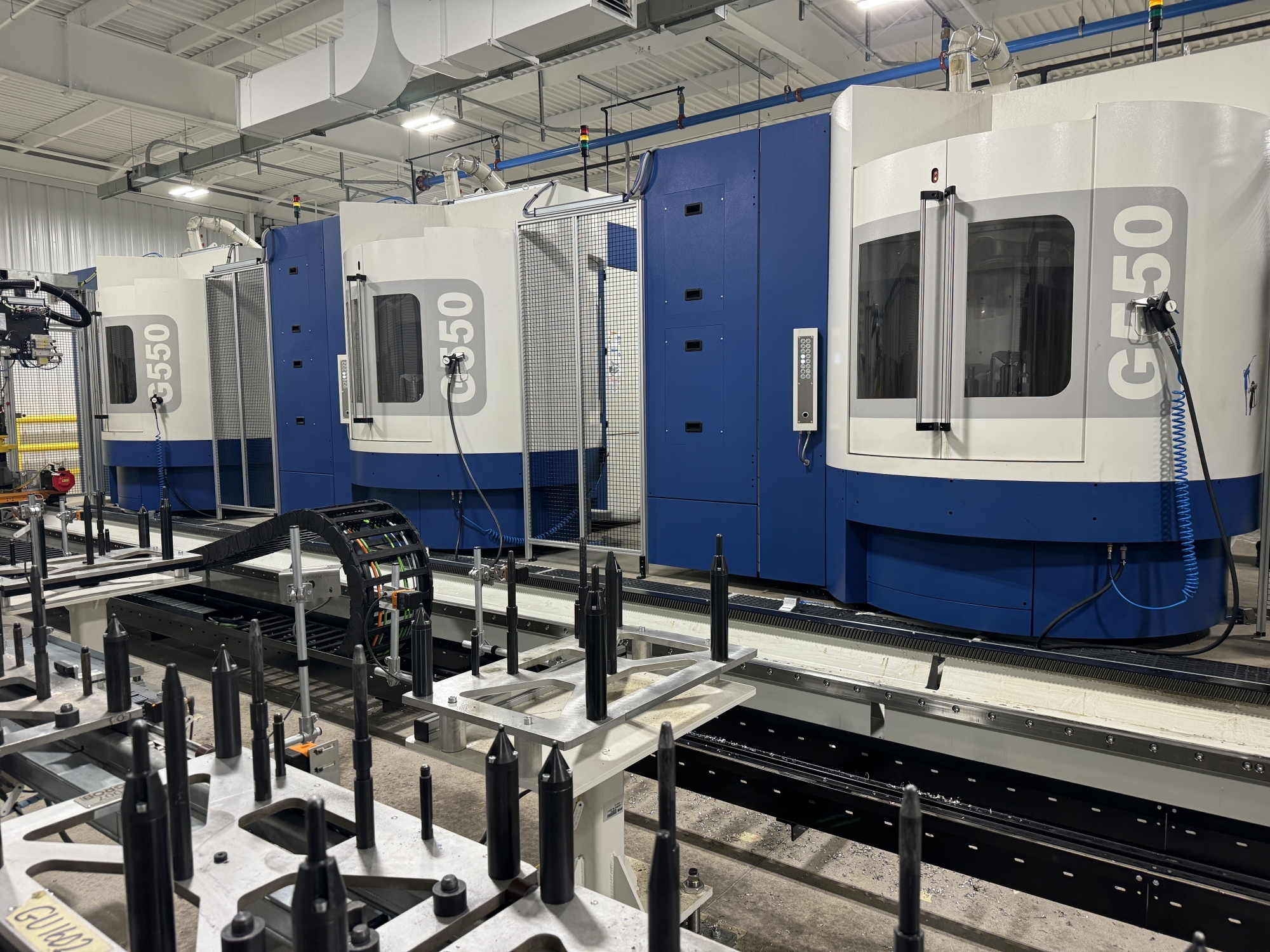

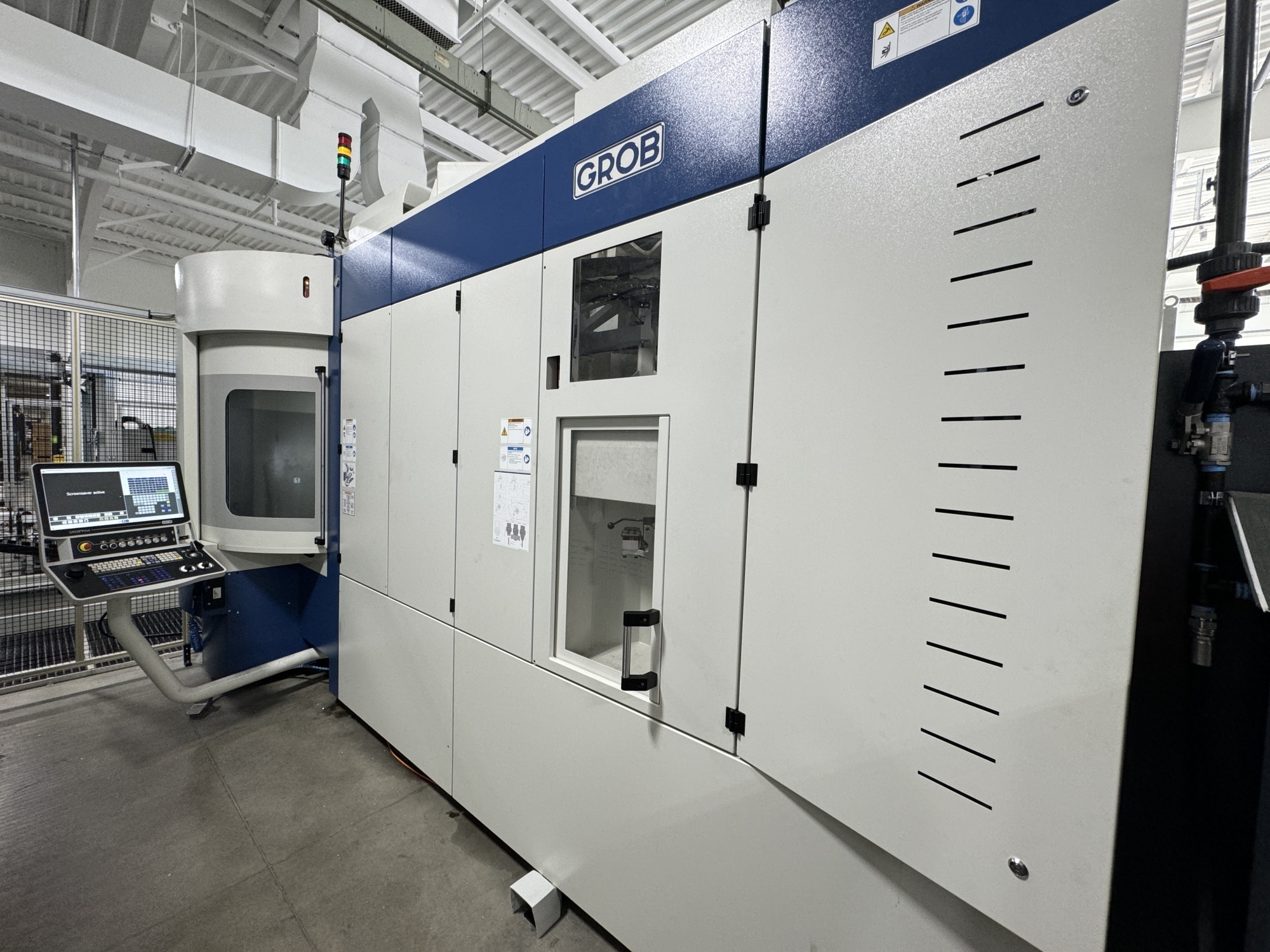

5-Axis Horizontal Machining Centers

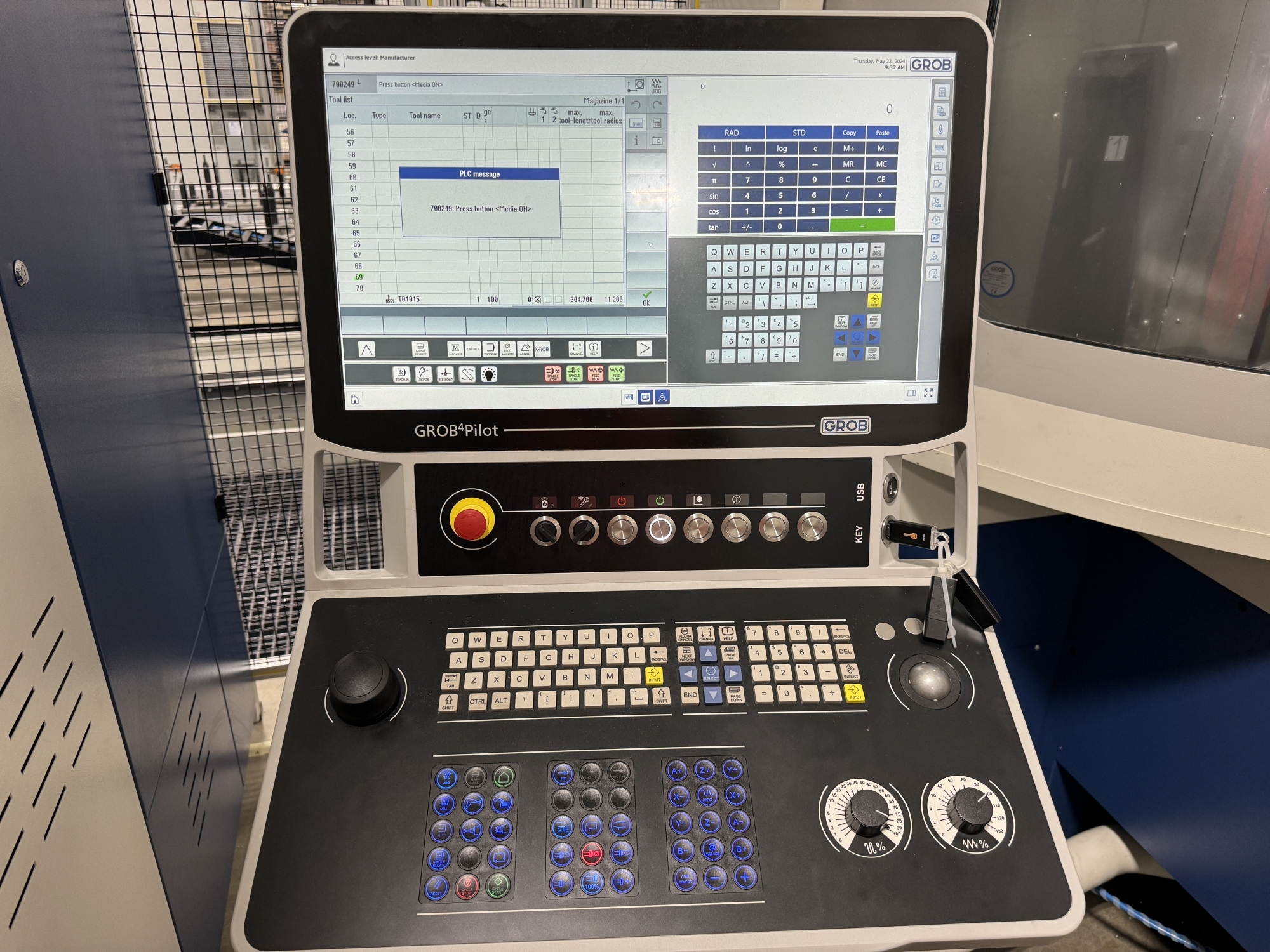

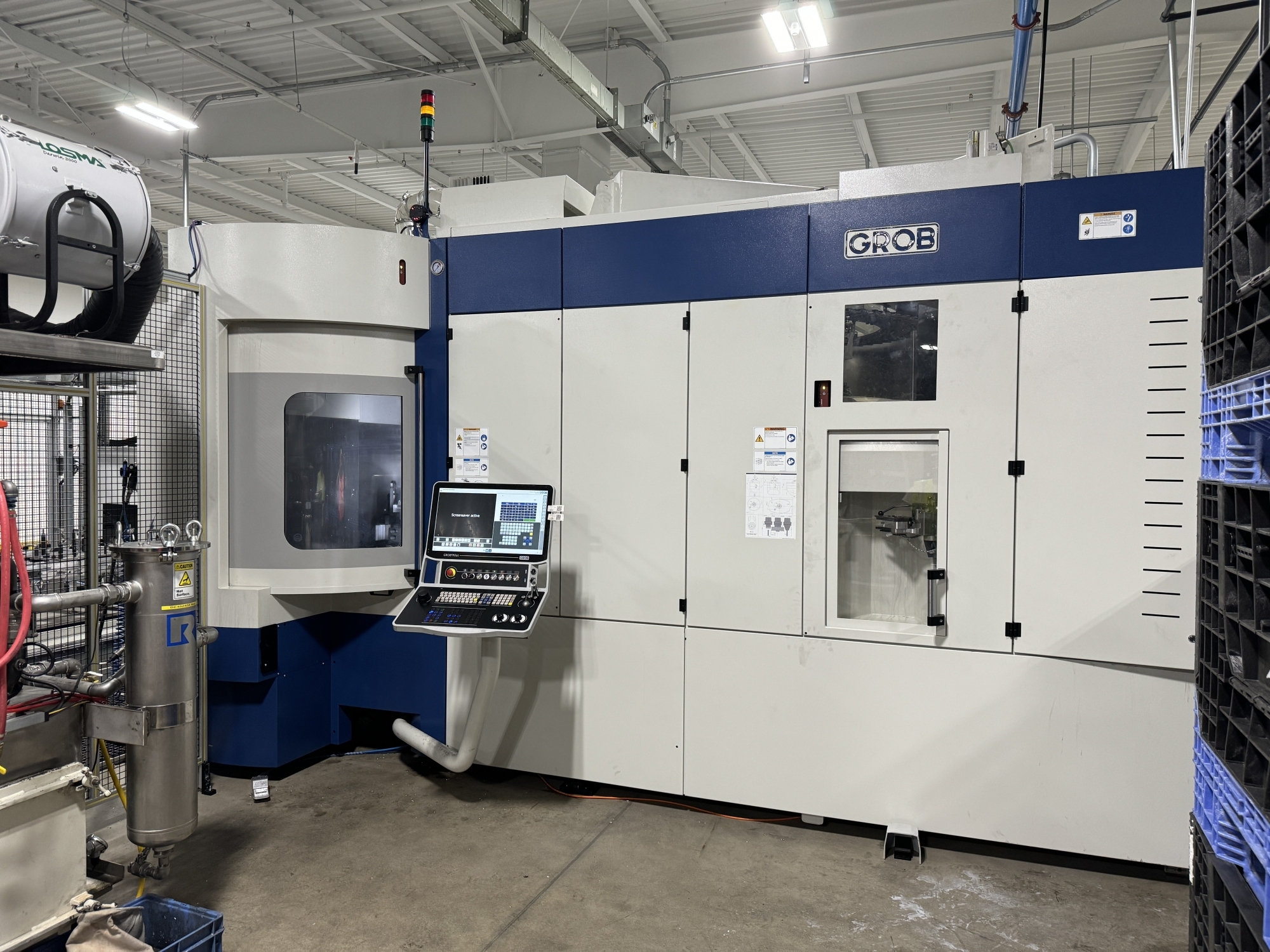

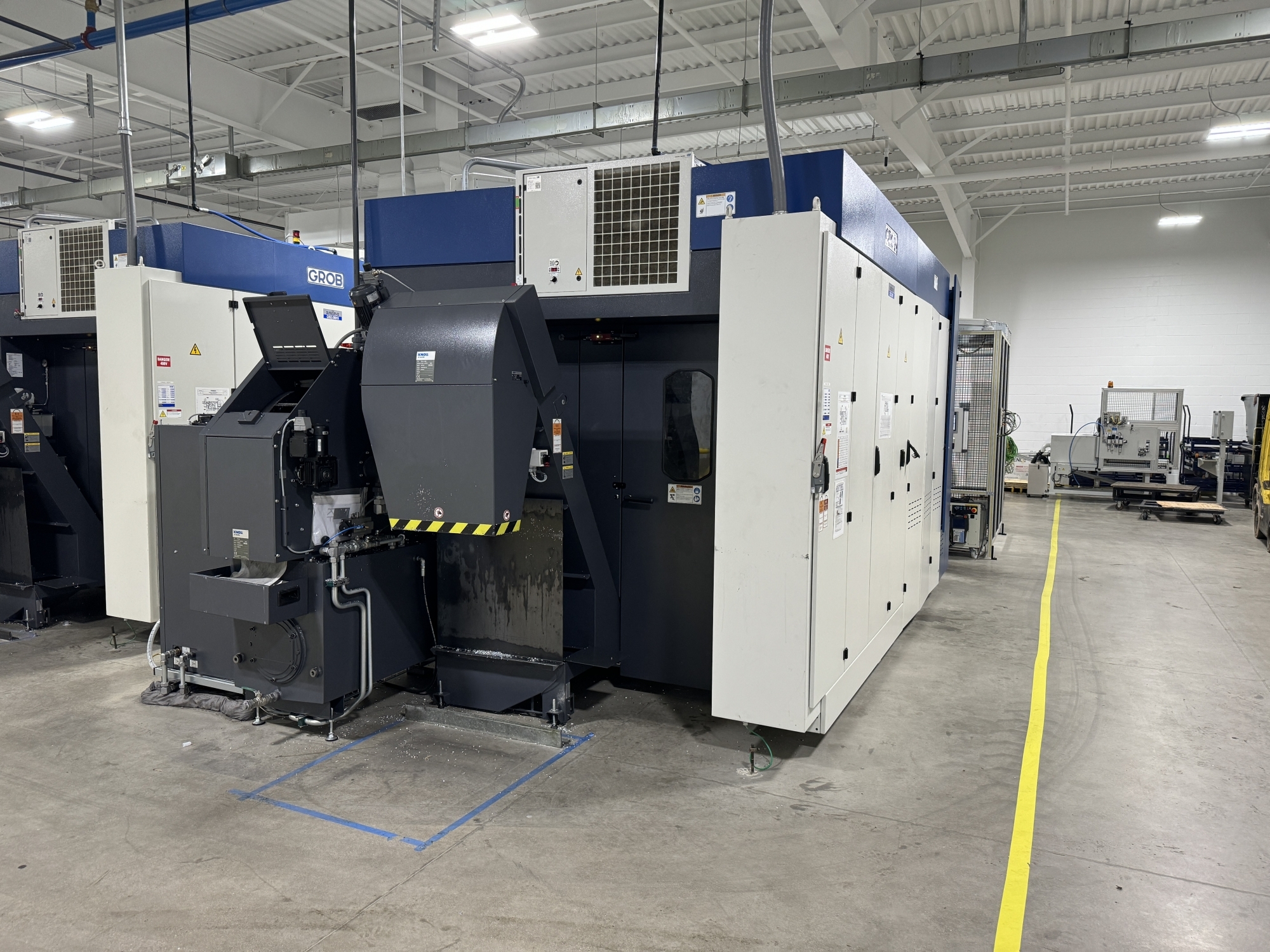

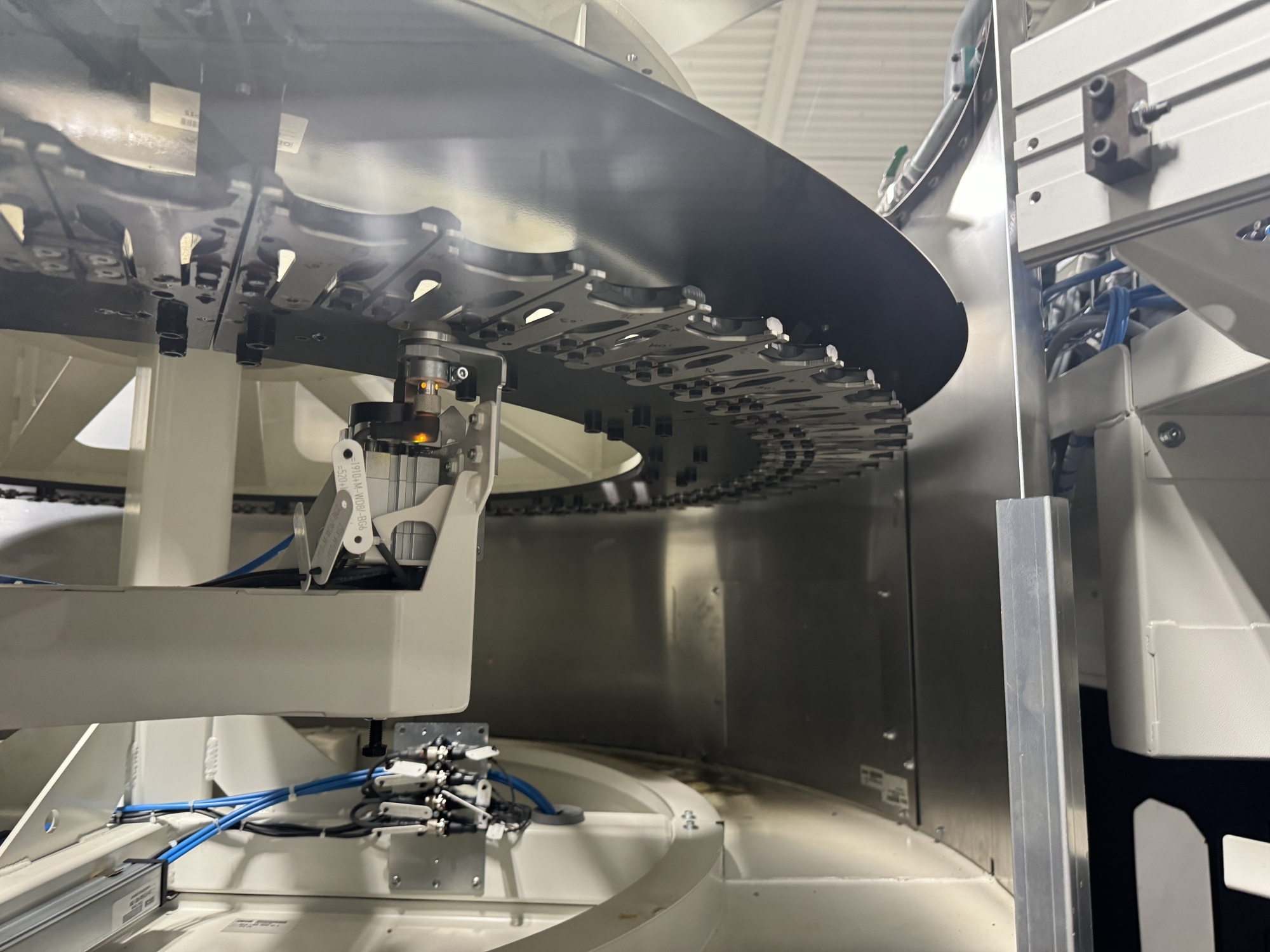

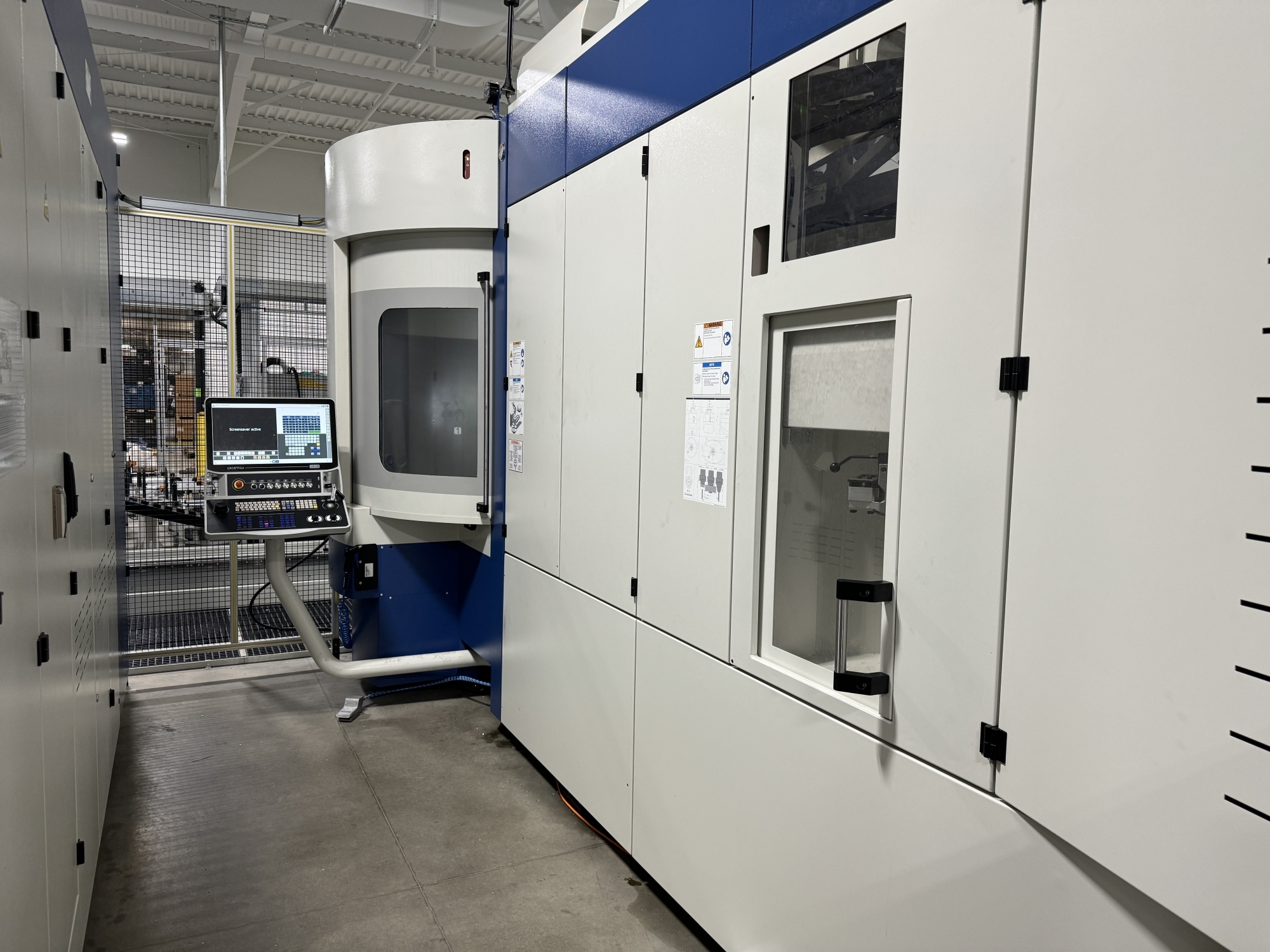

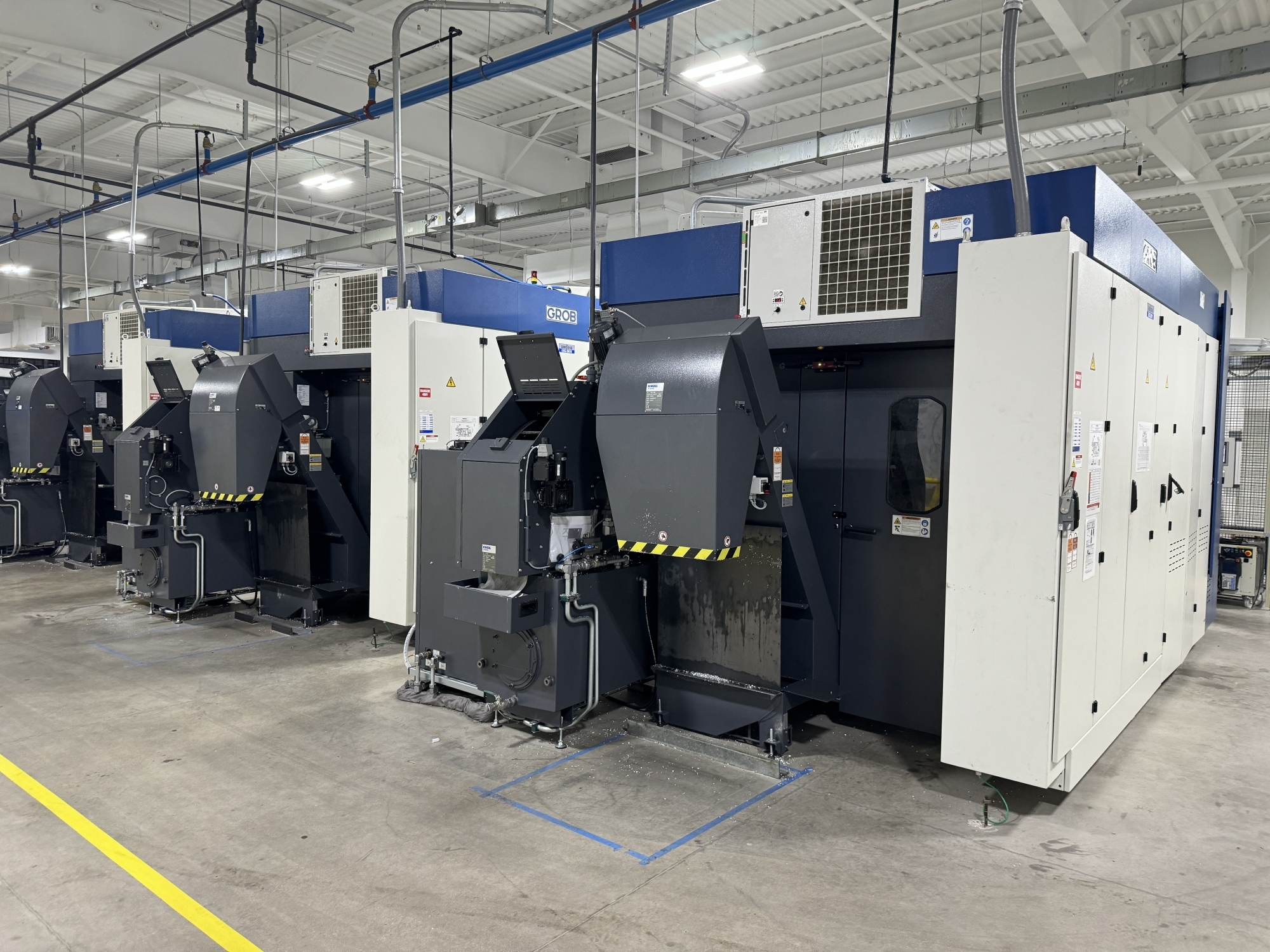

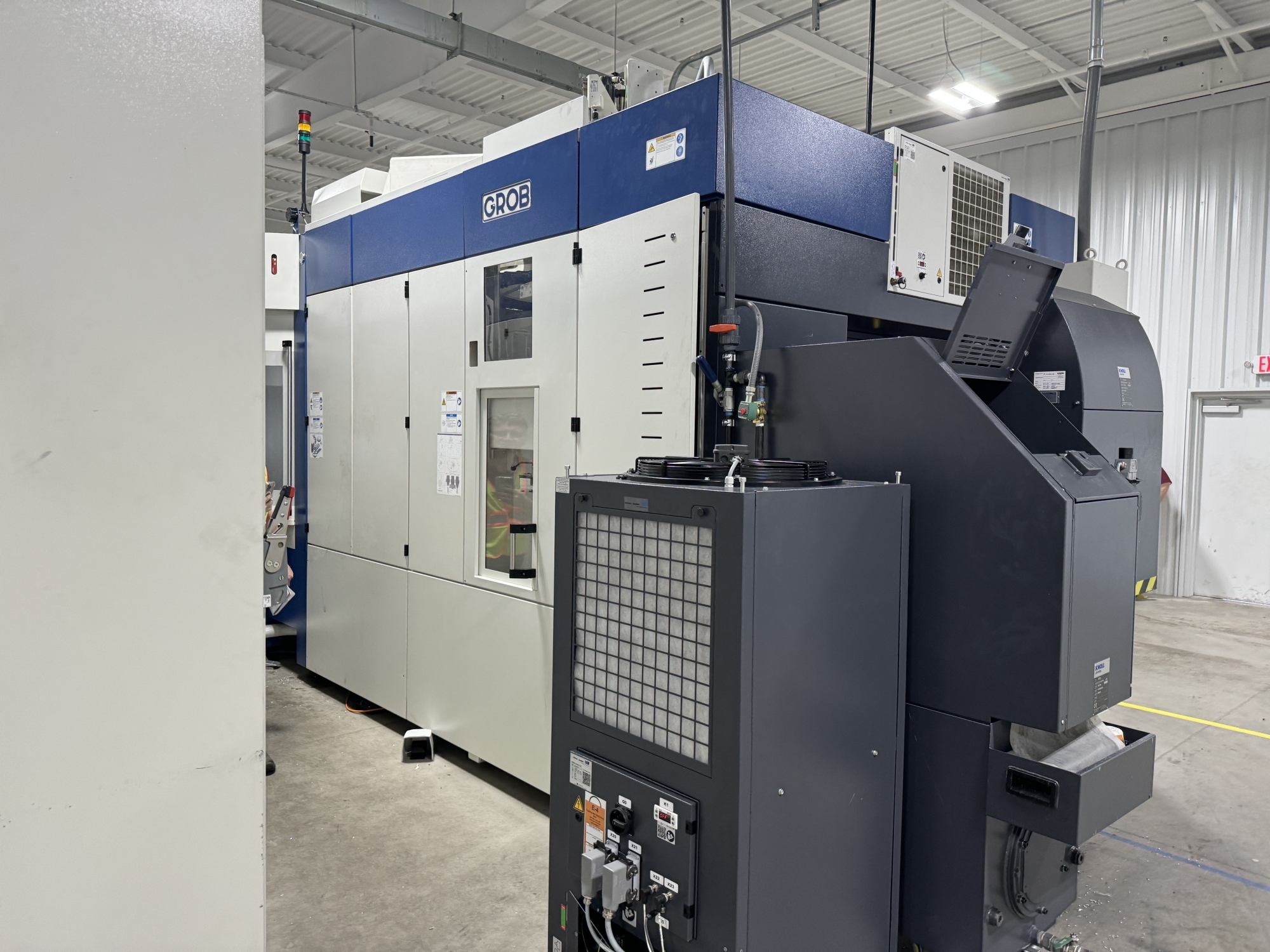

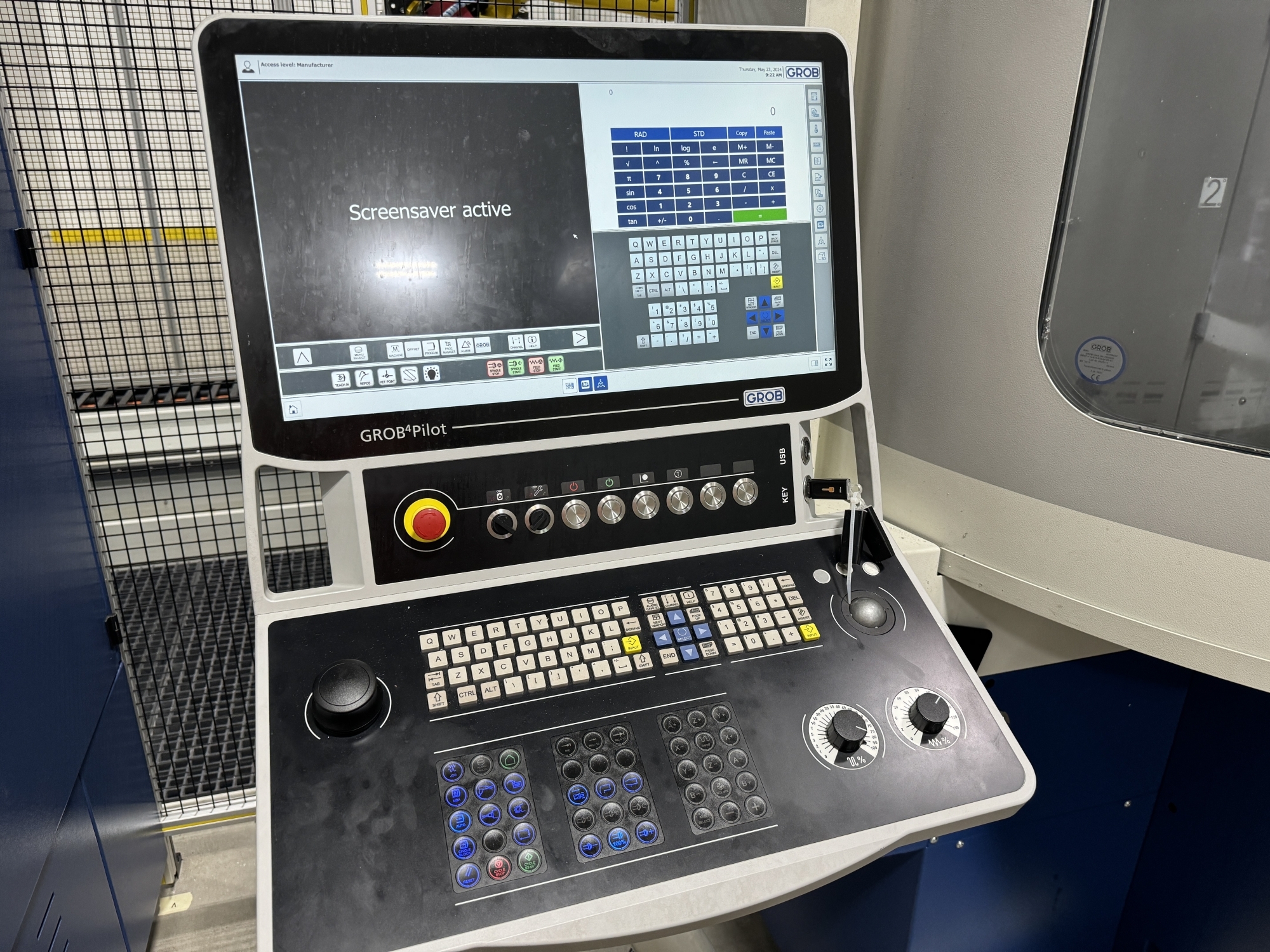

- 2022 GROB G552: Siemens 840DSL CNC Control, Coolant Through Spindle, Tool Break Detection, Chip Blaster, Chip Conveyor, 12,000 RPM Spindle, HSK-63, 70 ATC, 800 mm X-Axis, 1020 mm Y-Axis, 970 mm Z-Axis, 65 m/min X-Axis, 50 m/min Y-Axis, 80 m/min Z-Axis, 900 mm Interference Diameter, 770 mm Table Diameter, 700/800 kg Table Load (with/without pallet), 465 mm Tool Length S/N
- 2022 GROB G552: Siemens 840DSL CNC Control, Coolant Through Spindle, Tool Break Detection, Chip Blaster, Chip Conveyor, 12,000 RPM Spindle, HSK-63, 70 ATC, 800 mm X-Axis, 1020 mm Y-Axis, 970 mm Z-Axis, 65 m/min X-Axis, 50 m/min Y-Axis, 80 m/min Z-Axis, 900 mm Interference Diameter, 770 mm Table Diameter, 700/800 kg Table Load (with/without pallet), 465 mm Tool Length S/N
- 2022 GROB G552: Siemens 840DSL CNC Control, Coolant Through Spindle, Tool Break Detection, Chip Blaster, Chip Conveyor, 12,000 RPM Spindle, HSK-63, 70 ATC, 800 mm X-Axis, 1020 mm Y-Axis, 970 mm Z-Axis, 65 m/min X-Axis, 50 m/min Y-Axis, 80 m/min Z-Axis, 900 mm Interference Diameter, 770 mm Table Diameter, 700/800 kg Table Load (with/without pallet), 465 mm Tool Length S/N
Robots

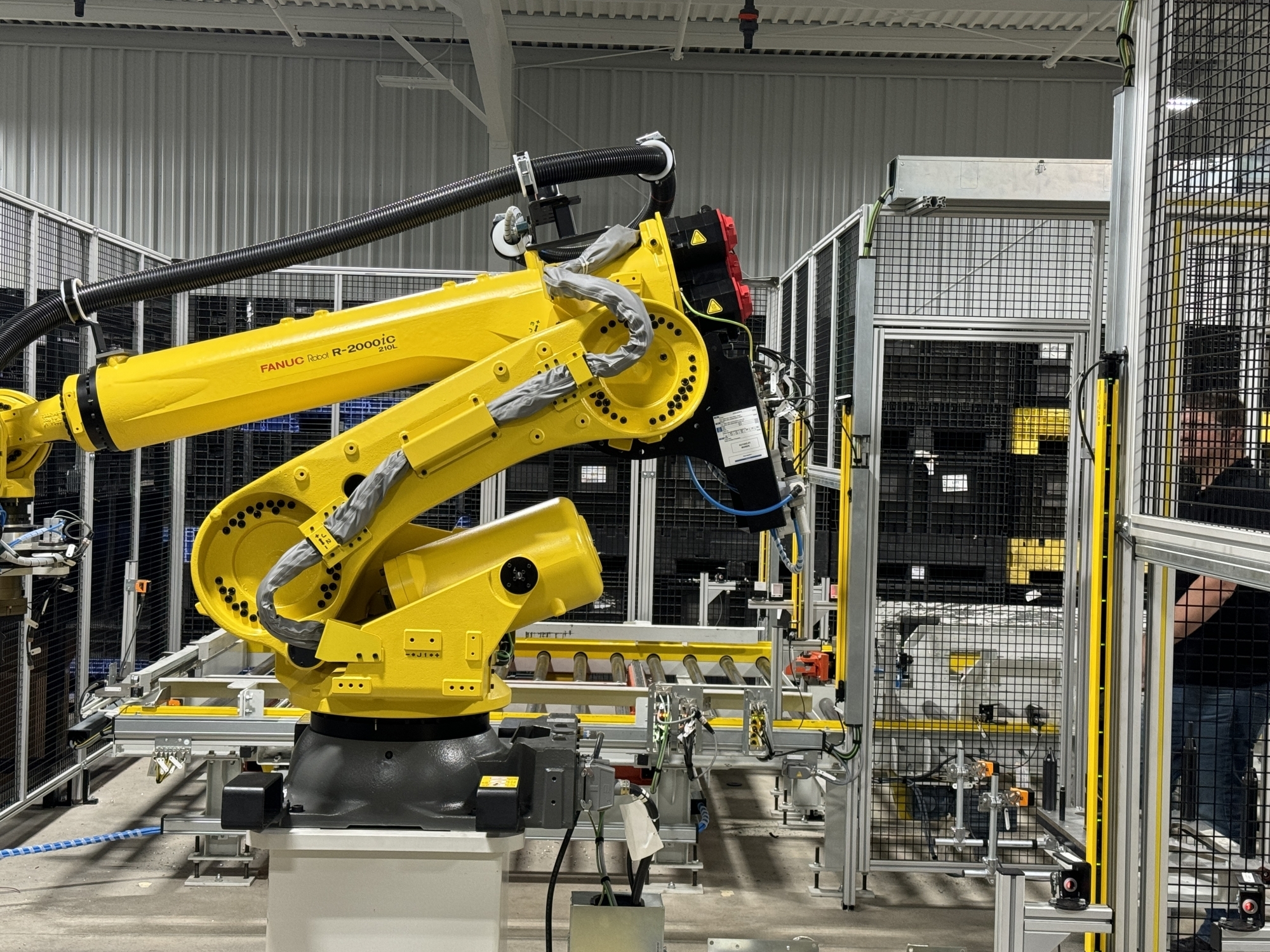

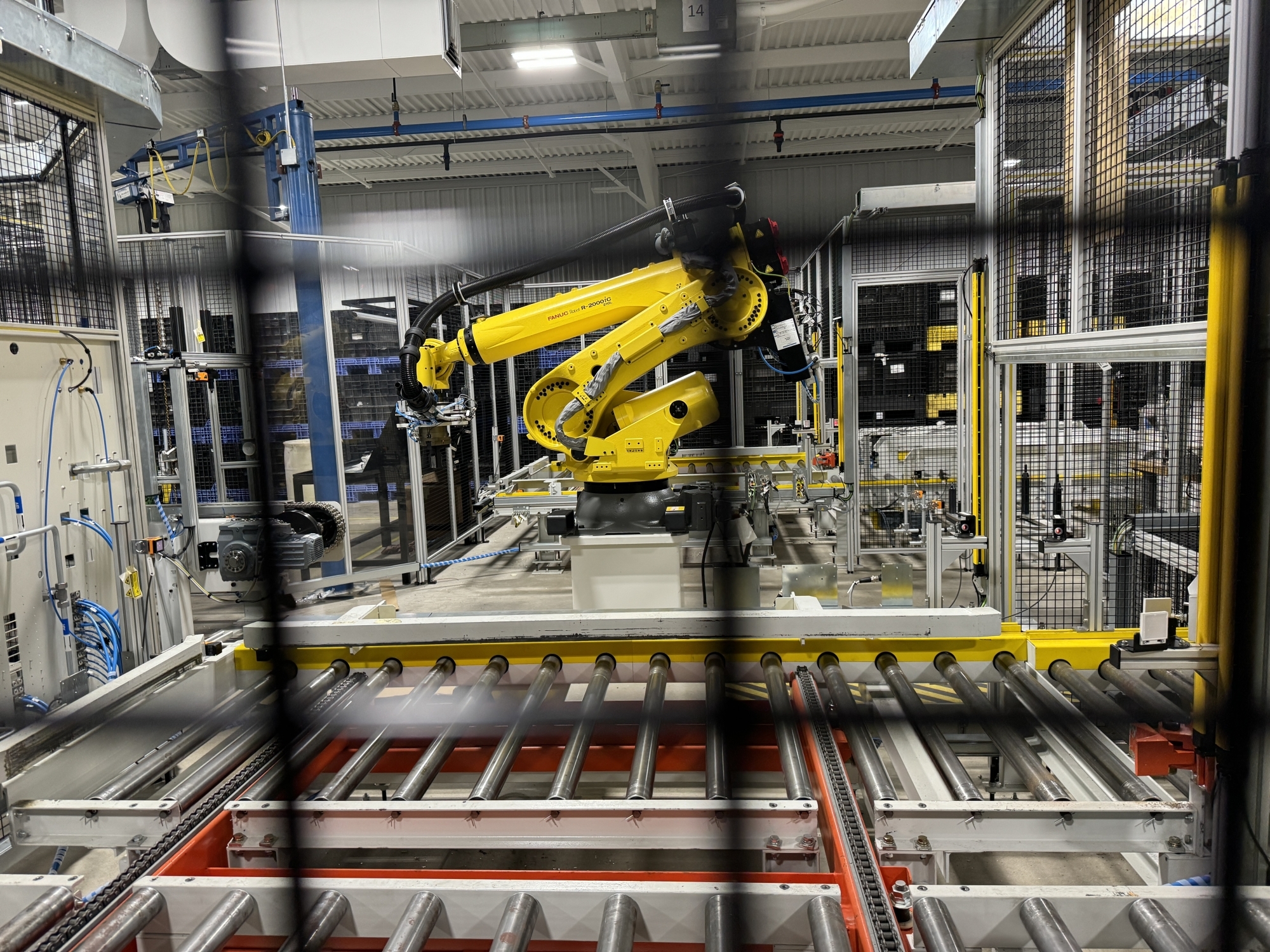

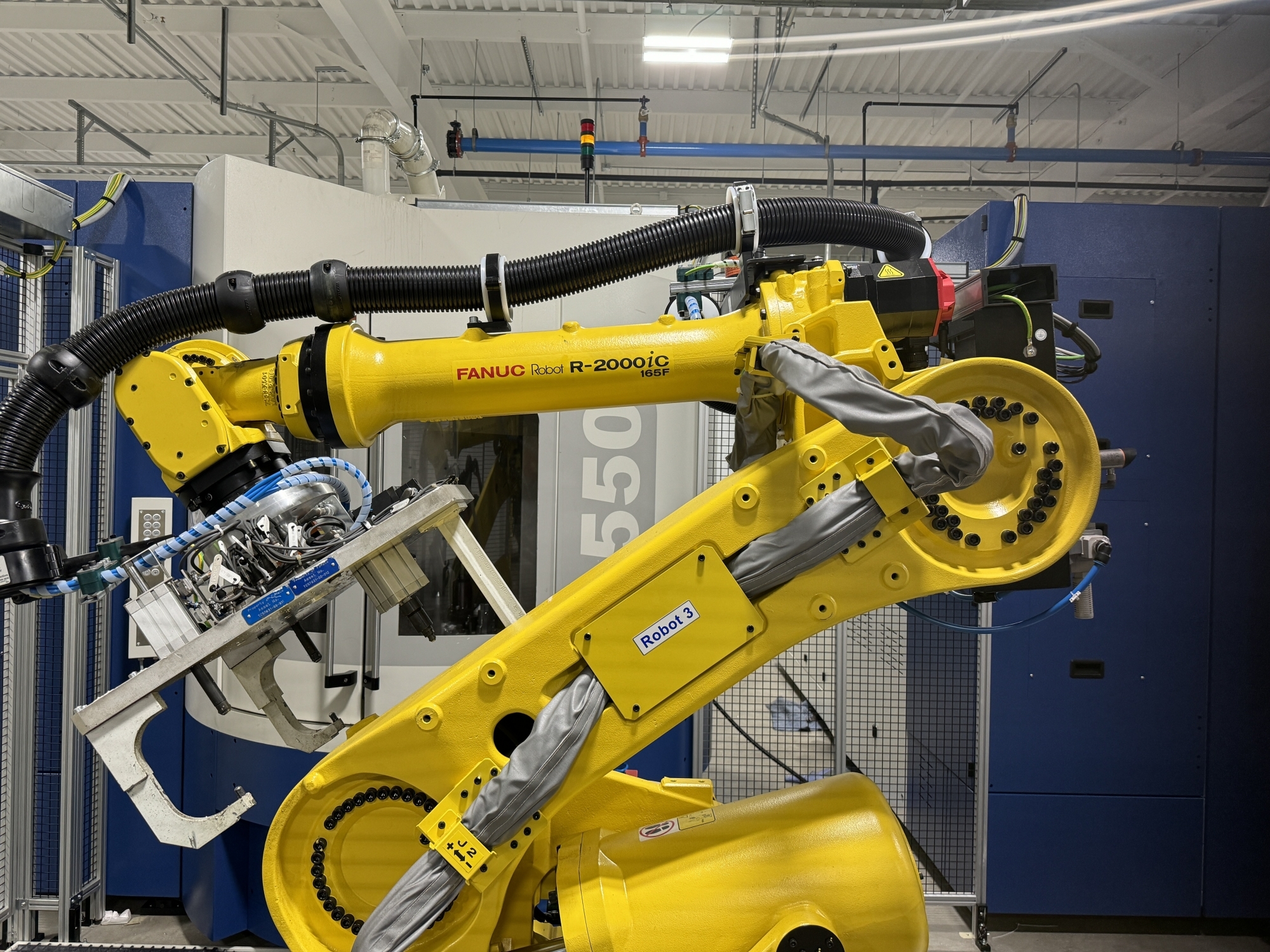

- 2022 Fanuc R2000ic 165F 6-Axis Mechanical Unit: Fanuc R-30iB Plus Controller, Pendant, 165 kg Maximum Payload, 2,655 mm Reach
- 2022 Fanuc R2000ic 165F 6-Axis Mechanical Unit: Fanuc R-30iB Plus Controller, Pendant, 165 kg Maximum Payload, 2,655 mm Reach
- 2022 Fanuc R2000ic 210L 6-Axis Mechanical Unit: Fanuc R-30iB Plus Controller, Pendant, 210 kg Maximum Payload, 3,100 mm Reach

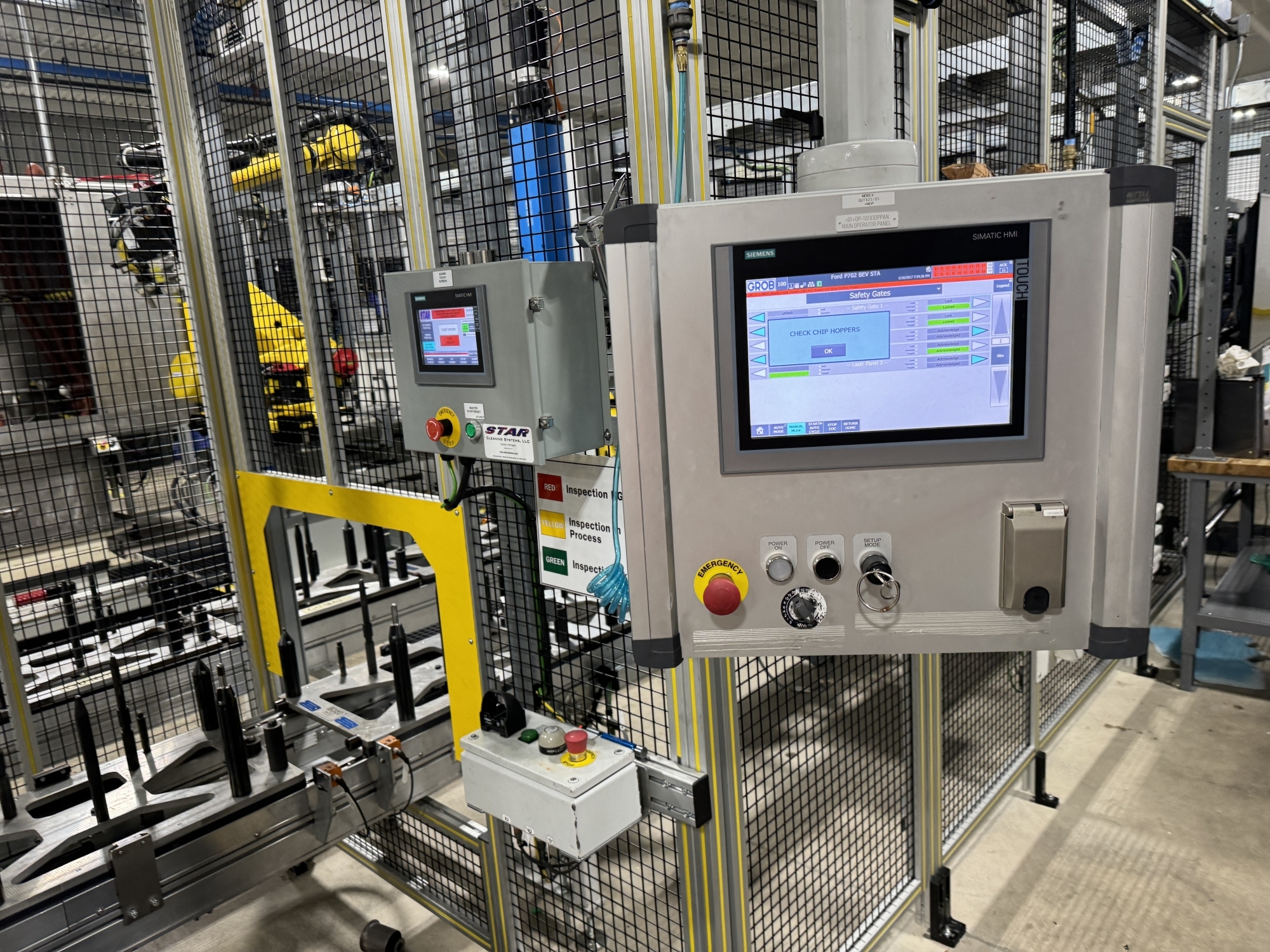

Peripheral Equipment

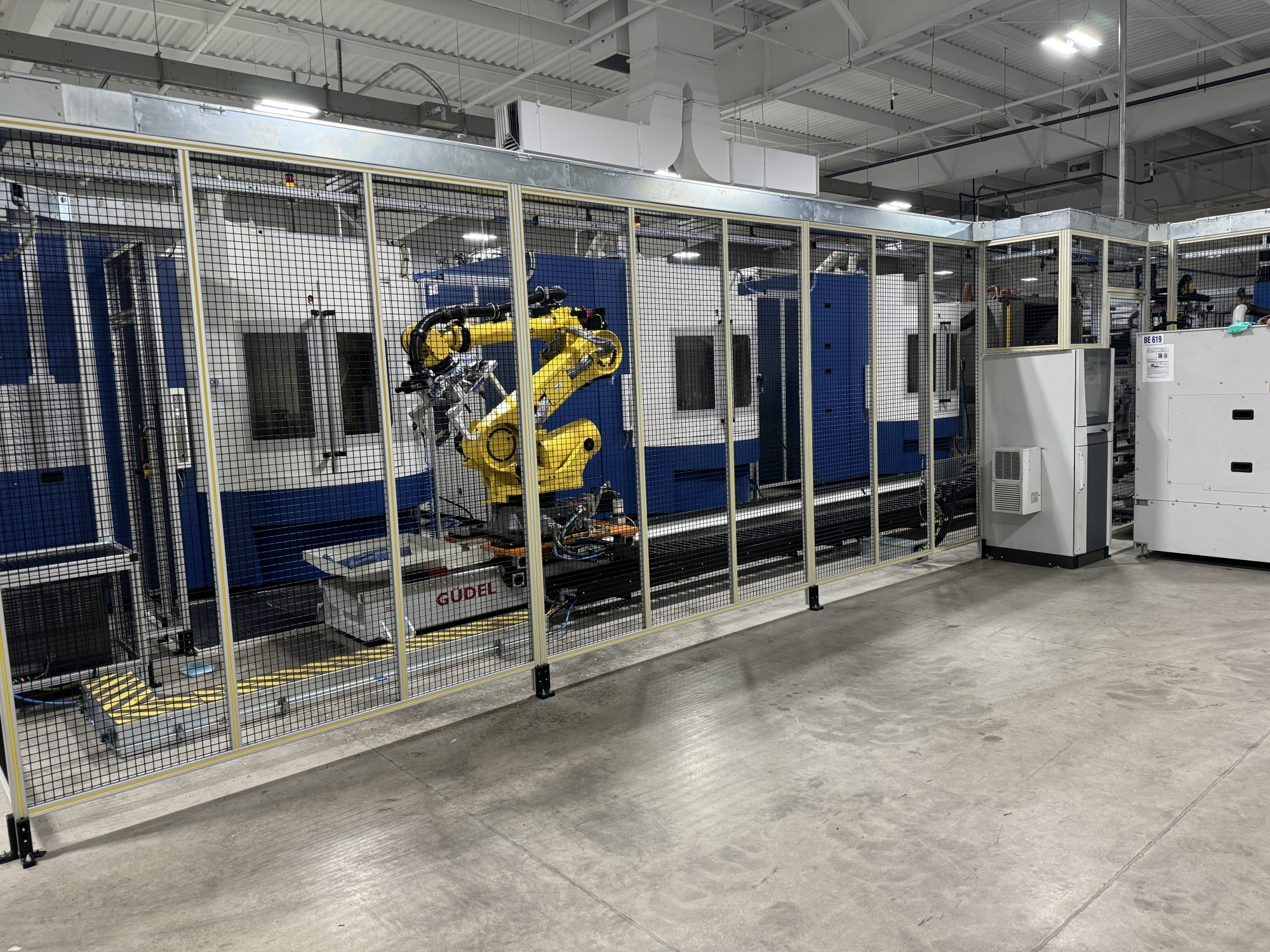

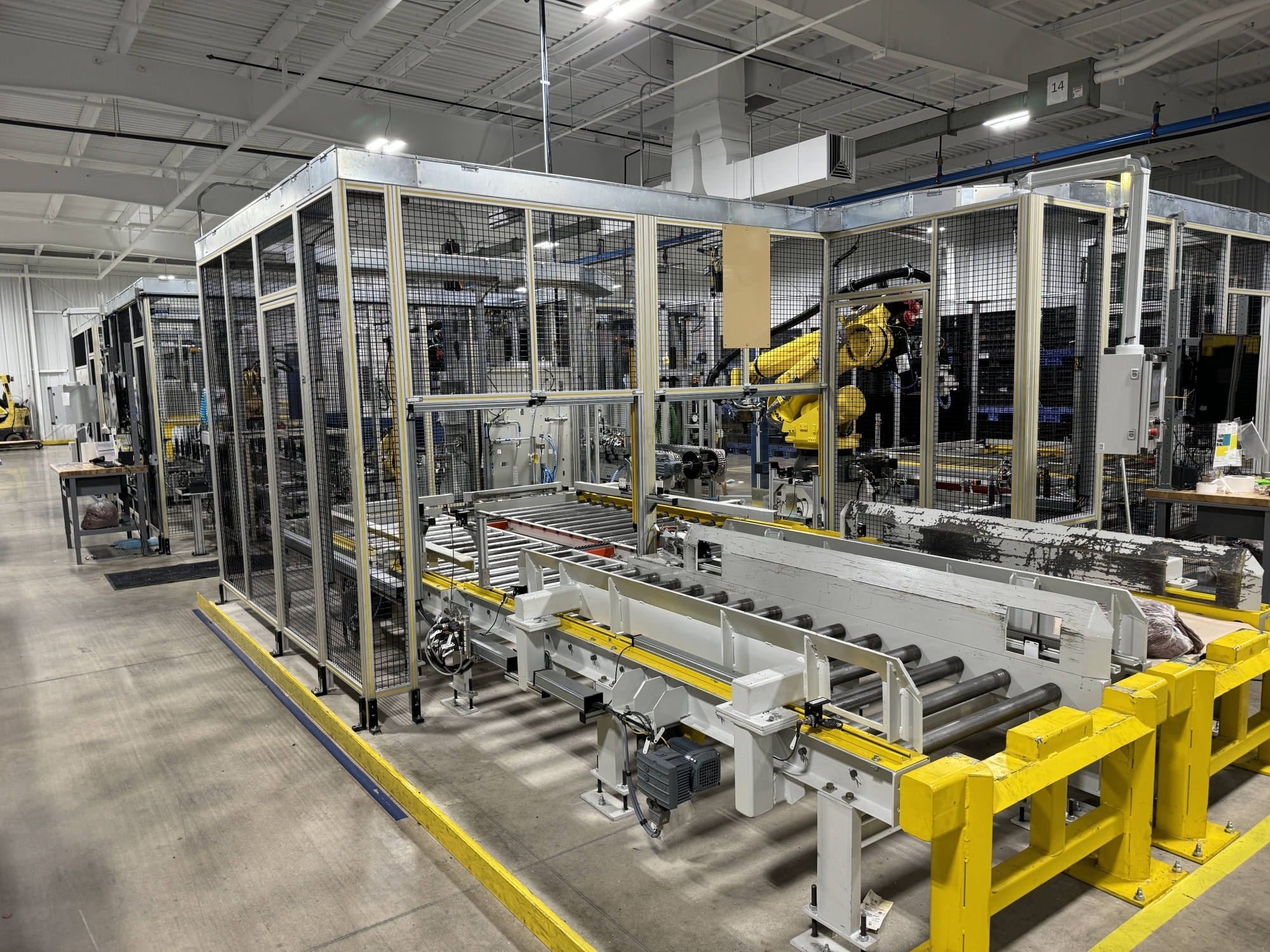

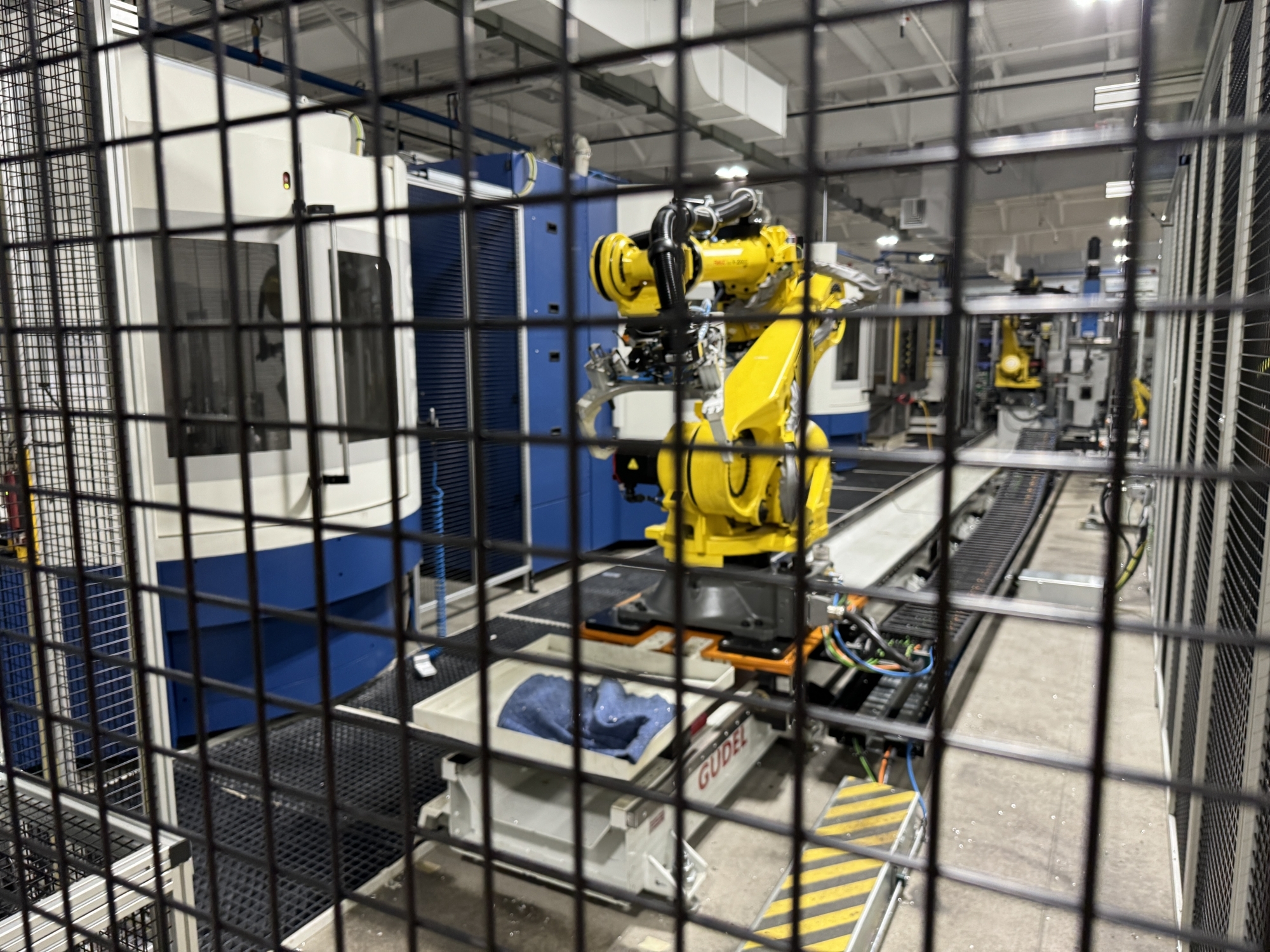

- 2022 GUDEL TMF-3 Robotic Rail System: Approximately 45' with Wire Track, Siemens HMI
- 2021 Star Cleaning Systems Cabinet Washer: Panel Box, Mist Collector, Filtration System
