North America’s Largest Inventory of CNC Gear Machinery, Production Machinery, and Machine Tools
Sale Type: Webcast Auction Sale
Date: November 19, 2024
Preview: November 18, 2024
Address: Indianapolis, IN
Contact Name: Nick Gibbs
Email: Contact

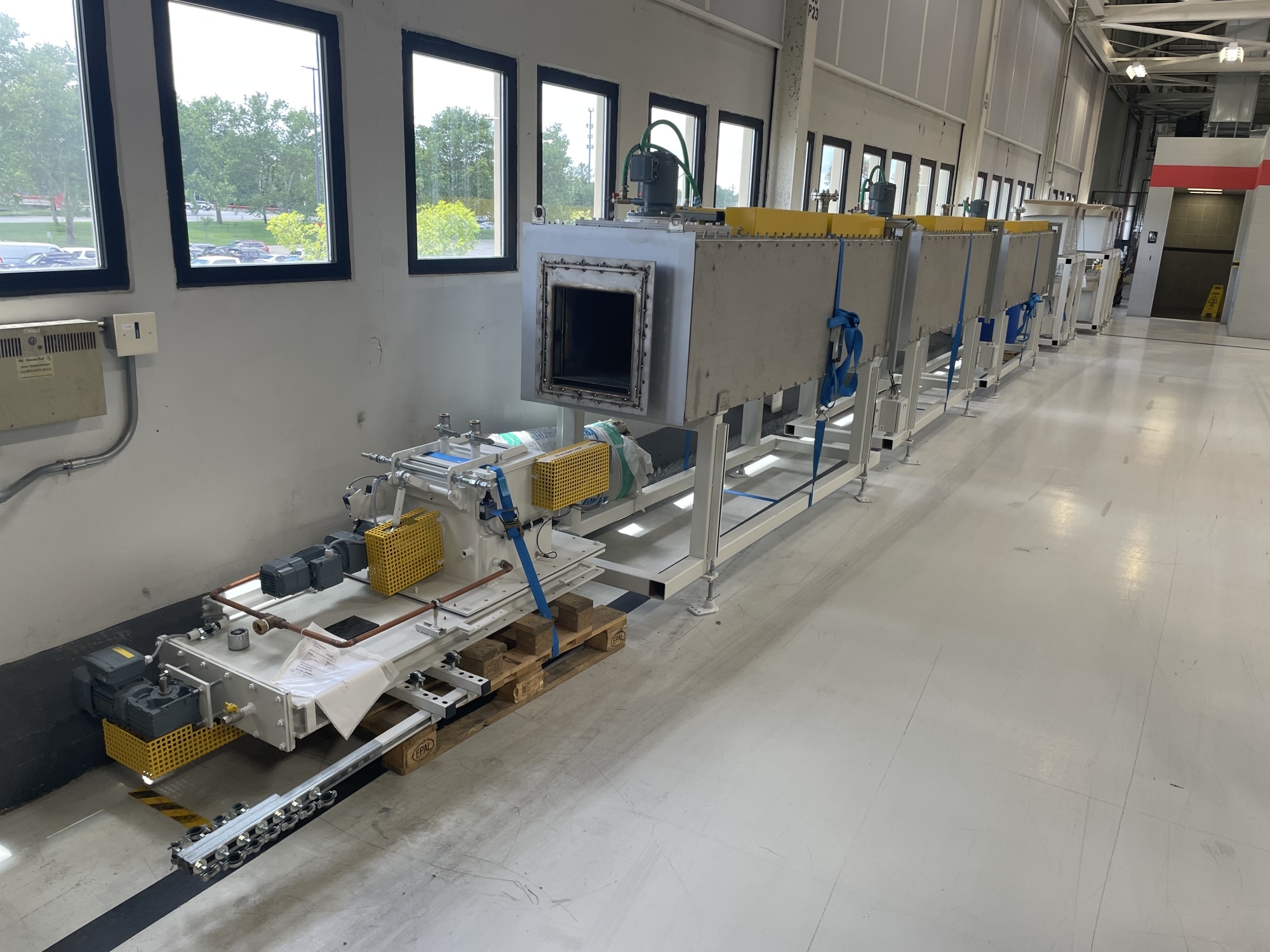

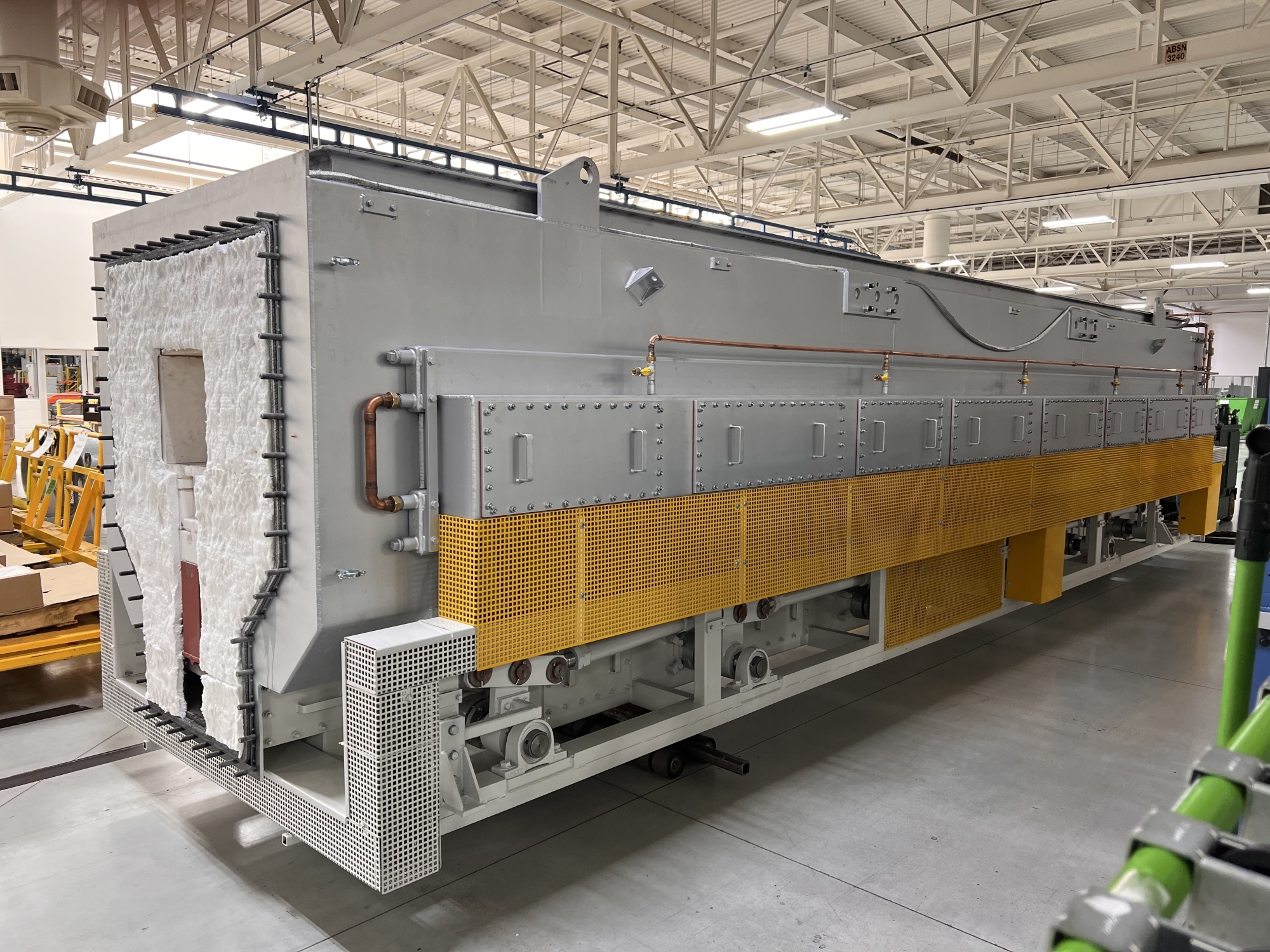

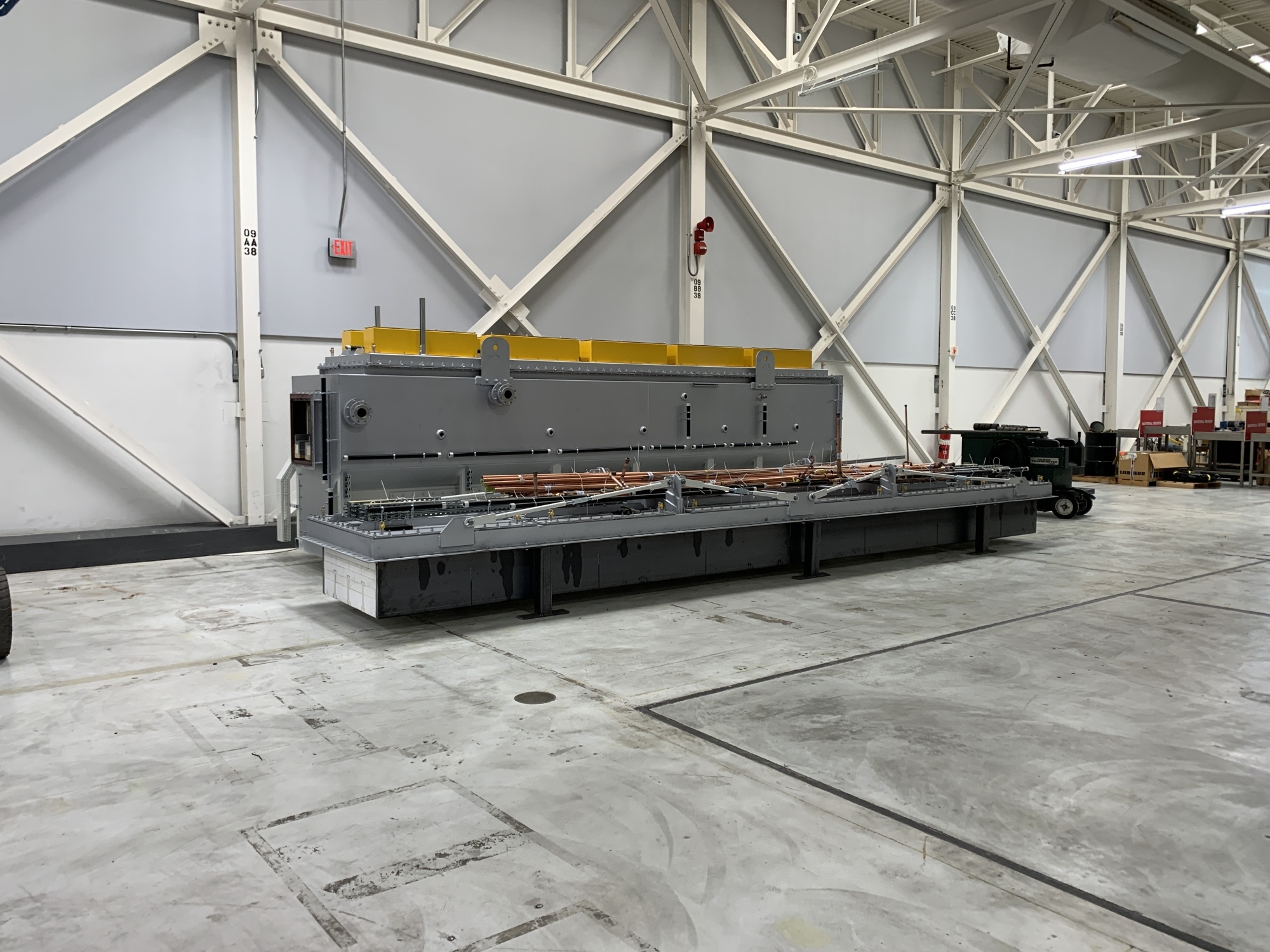

Description: Manufactured by Cremer Thermoprozessanlagen GmbH and set to be commissioned in 2024, this new continuous sintering furnace is immediately available with all associated equipment as a turnkey production ready solution.
SYSTEM DETAILS
AVAILABLE ASSETS
COMPONENTS

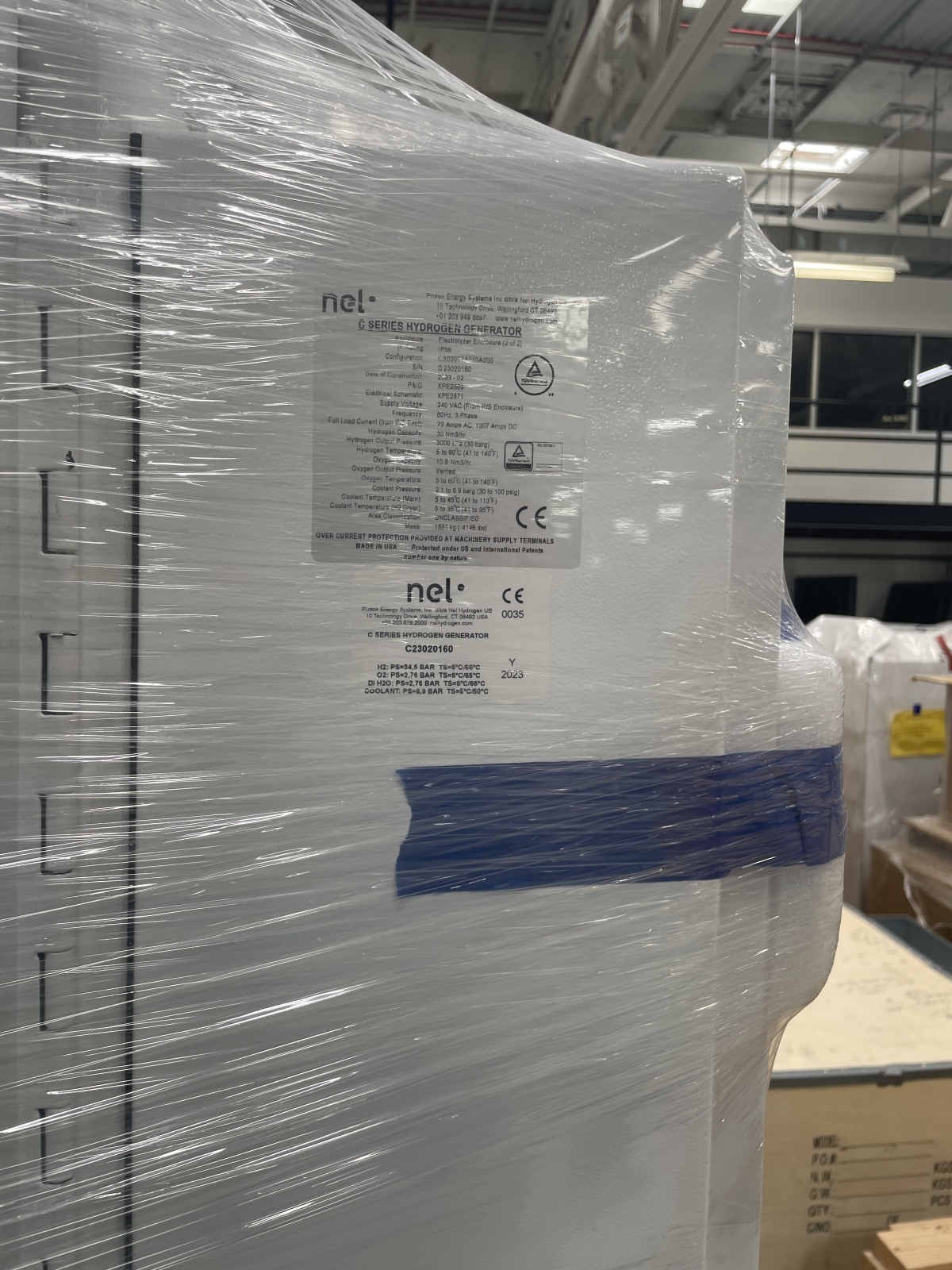

- (2) NEL C 30 HYDROGEN GAS GENERATORS
- ON SITE GAS SYSTEMS N-500-TGN NITROGEN GENERATOR
- 110 CARRIER TRAY SETS

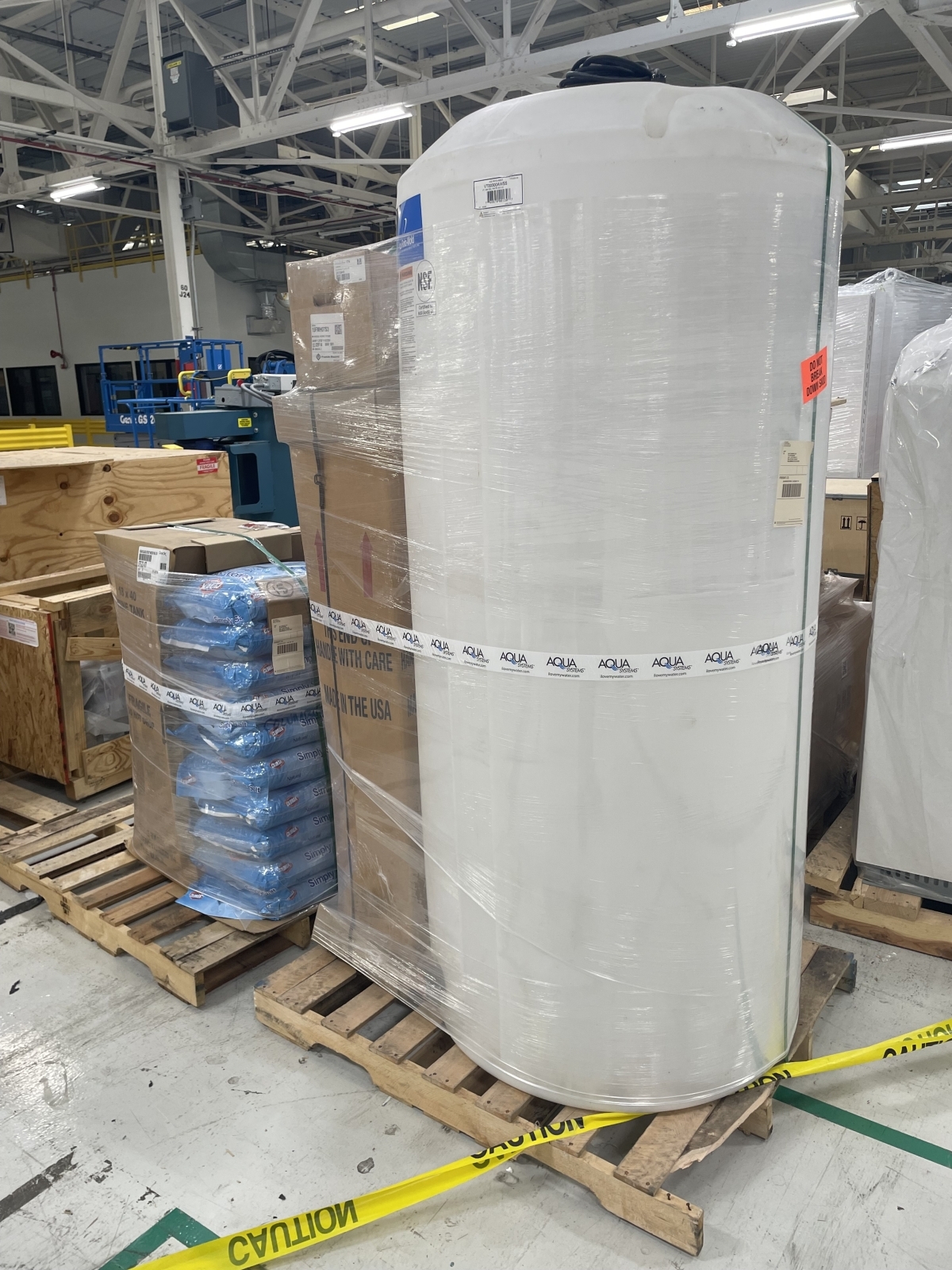

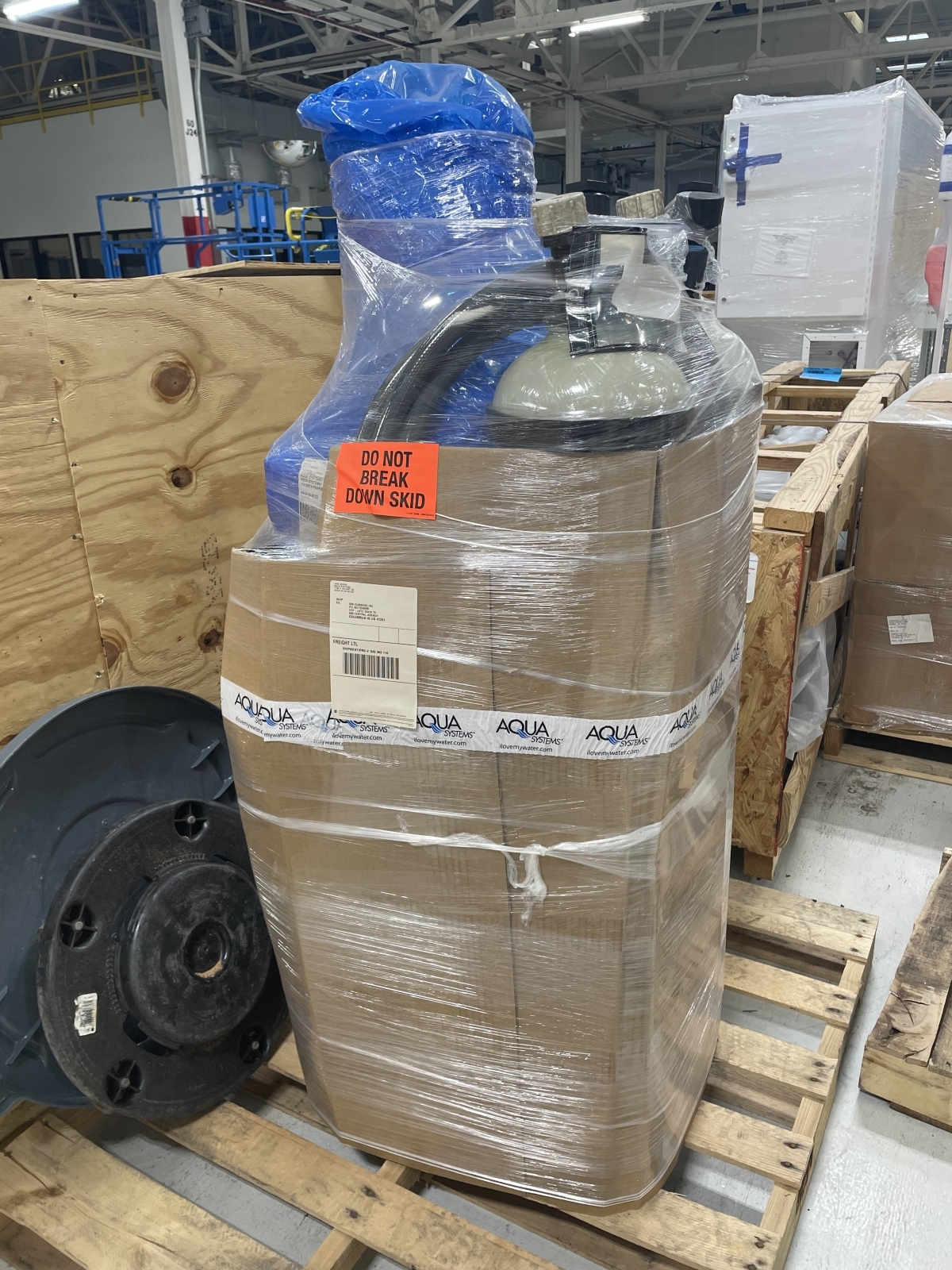

- RO/DI WATER SYSTEM

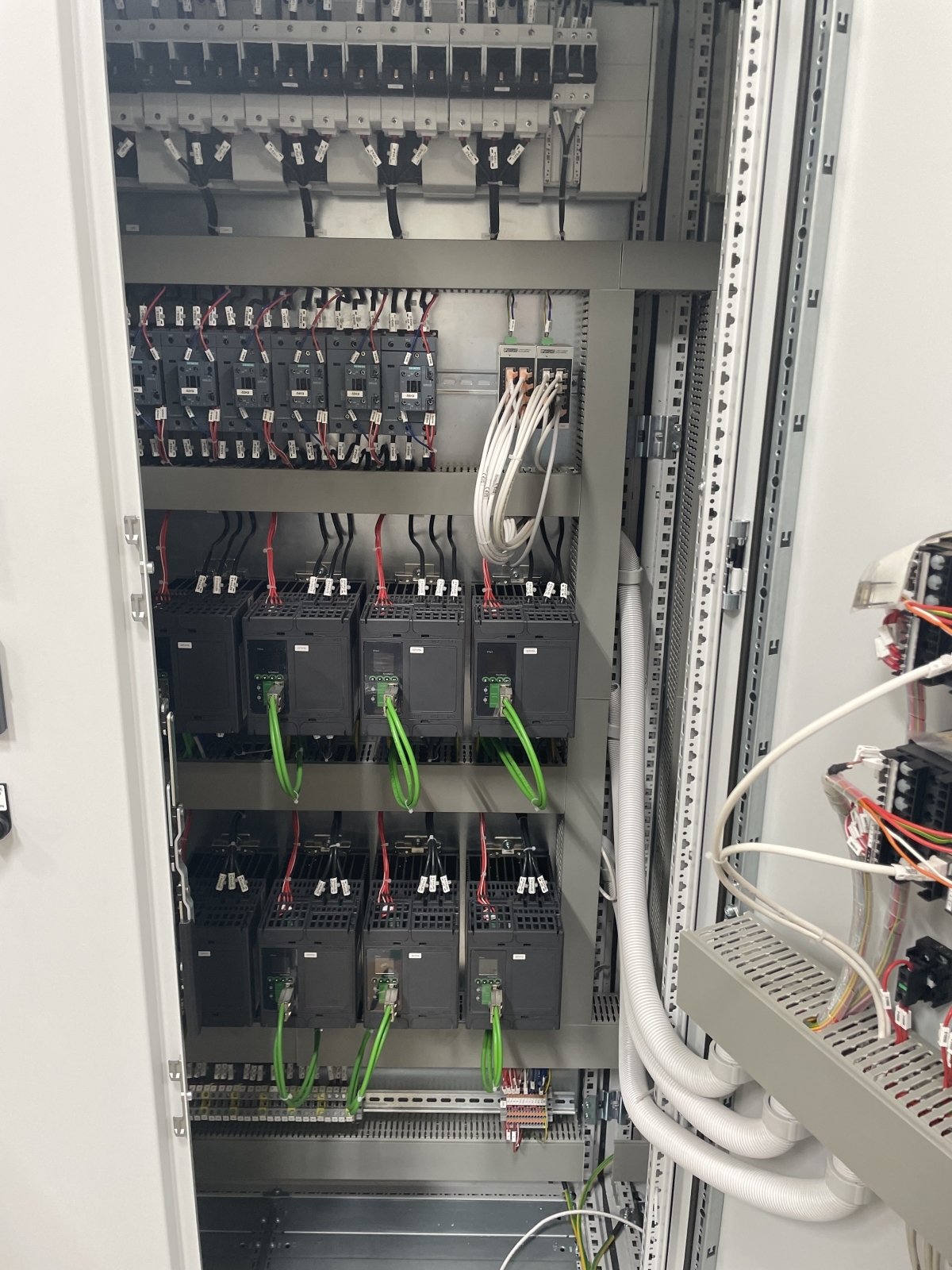

- ABB BUS RAIL
- EATON 93E UPS 20-60KVA
FURNACE DATA
- TRAY SIZE: 330 mm W x 330 mm L
- LOADING HEIGHT: 300 mm H
- CAPACITY IN 316L CYCLE: 8-10 Trays/hr
- NUMBER OF REST DEBINDING ZONES: 10 x 20 kW Top/Bottom Control
- NUMBER OF SINTERING ZONES: 10 x 30 kW
- SEGMENTS OF COOLING ZONE: 2 x 3m, 1 x 2m +Belt Drive and Return
- MAXIMUM TEMPERATURE REST DEBINDING: 800 C
- MAXIMUM SINTERING TEMPERATURE: 1,500 C
- PROCESS GAS CONSUMPTION (H2): 30-50 m3/h
- PURGE LOCK NITROGEN GAS CONSUMPTION: 34 m3/h
- POWER CONSUMPTION: 70kWh
- COOLING WATER CONSUMPTION: 3 m3/h
- POWER: 3 x 480V / 60Hz
- INSTALLED POWER: 500 kW
- IDLE MODE NITROGEN GAS CONSUMTPION: 15-16 m3/h
- IDLE MODE HYDROGEN GAS CONSUMPTION: 1-1.5 m3/h
TRANSPORT SYSTEMS

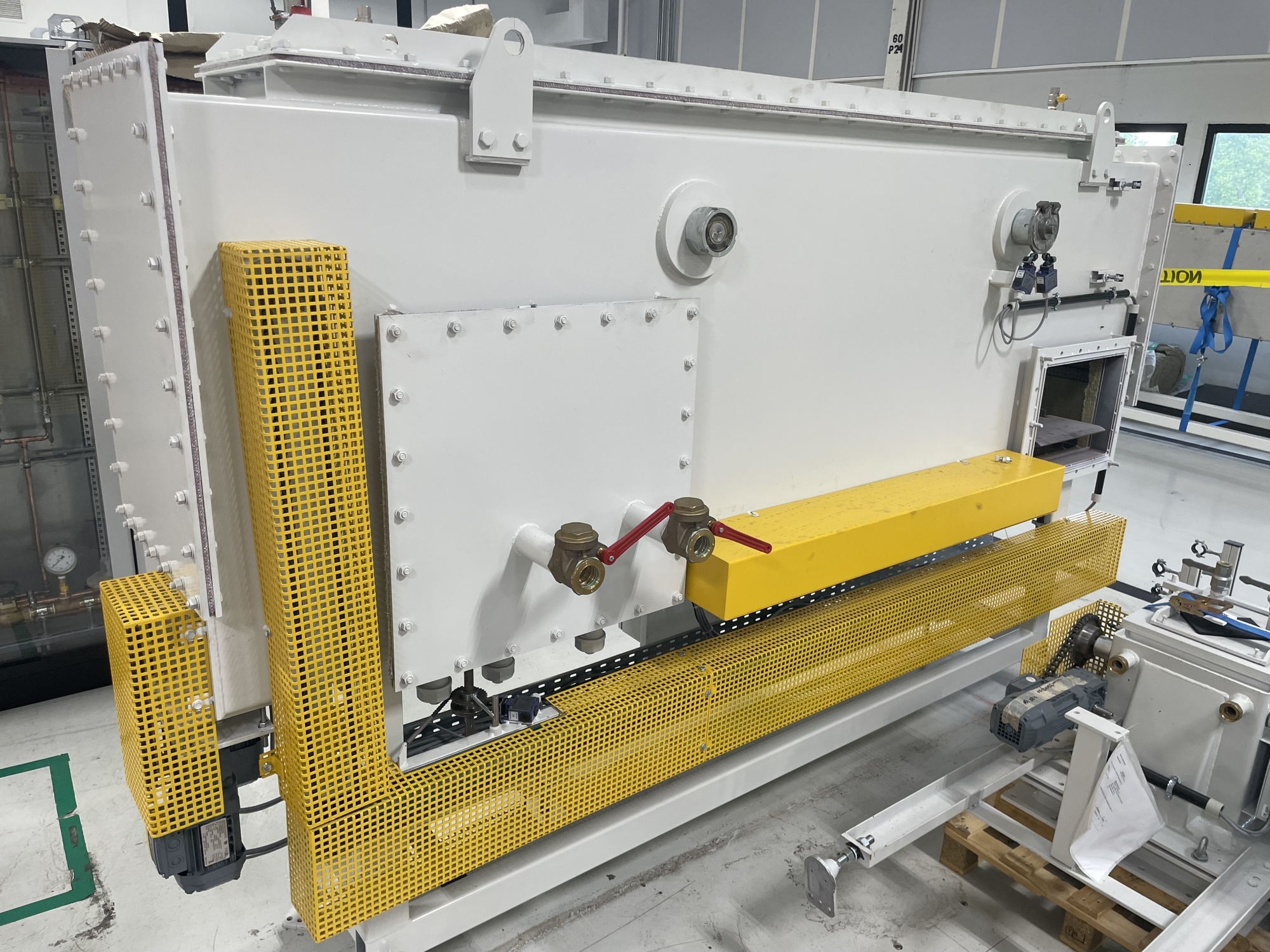

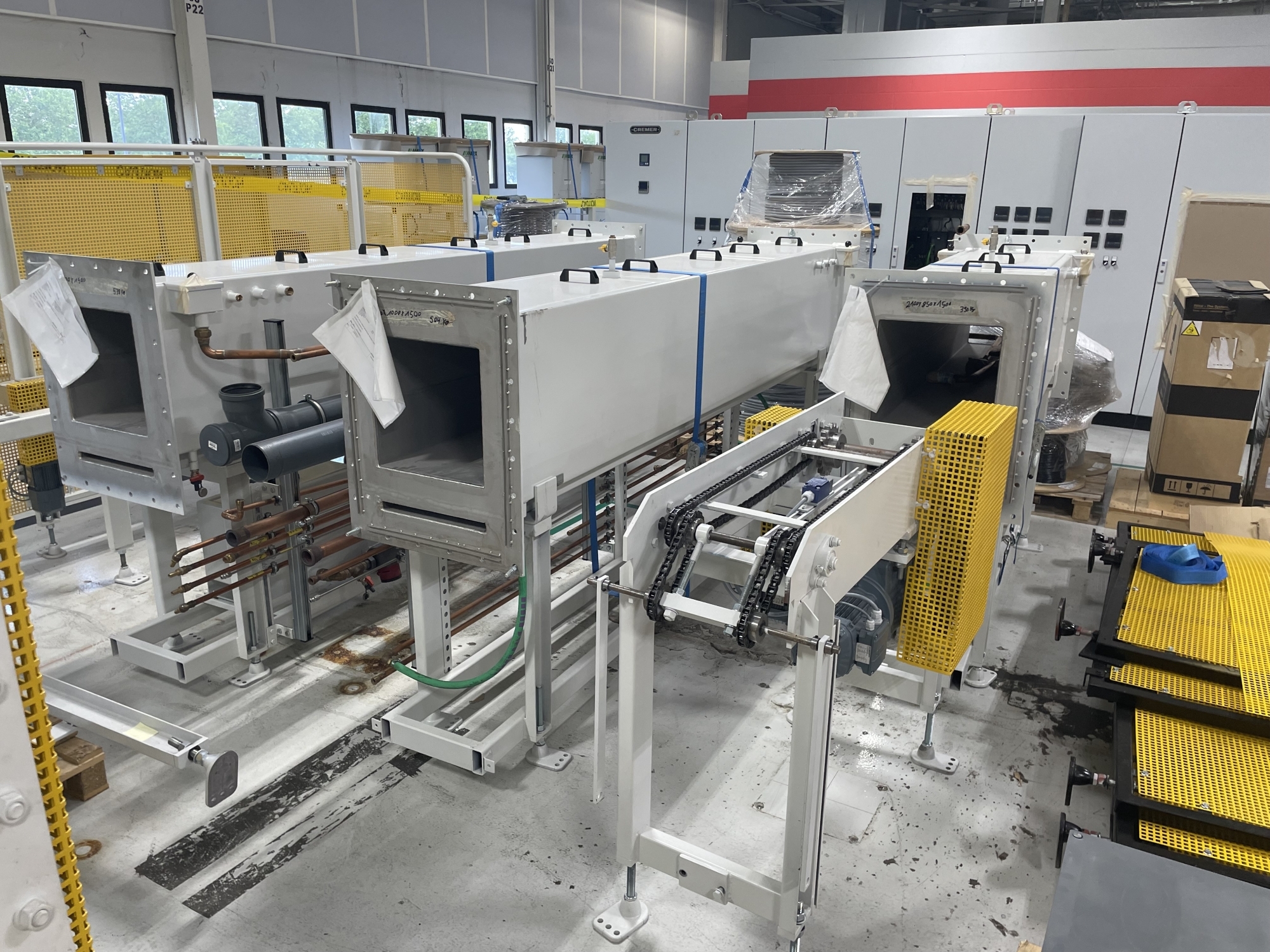

- Debinding Channel with Special Muffled Walking Beam (Furnace Line)
- Electric-Mechanical Walking Beam in High-Temperature Zone (Furnace Line)
- Conveyor Belt in Cooling Zone (Furnace Line)

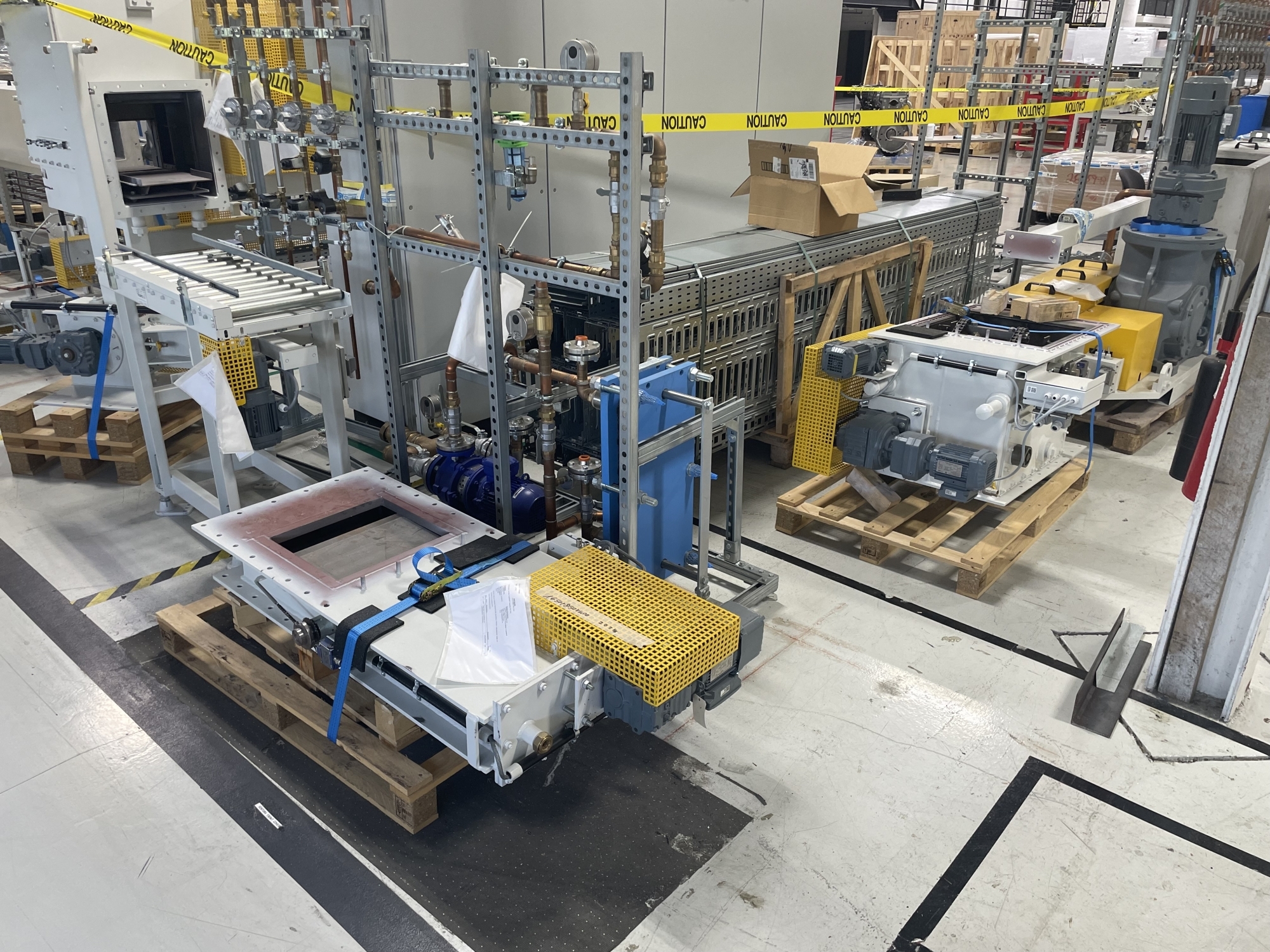

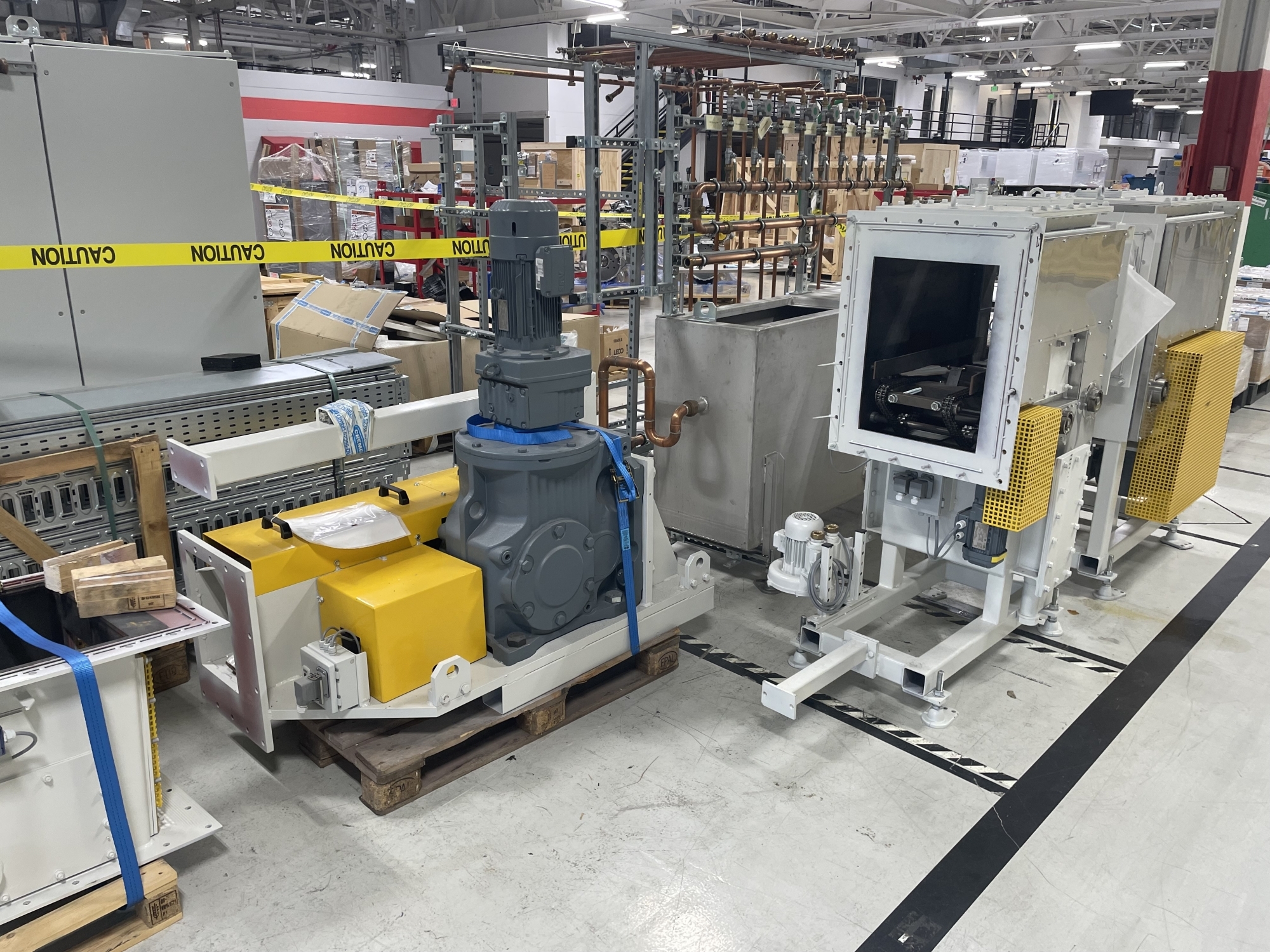

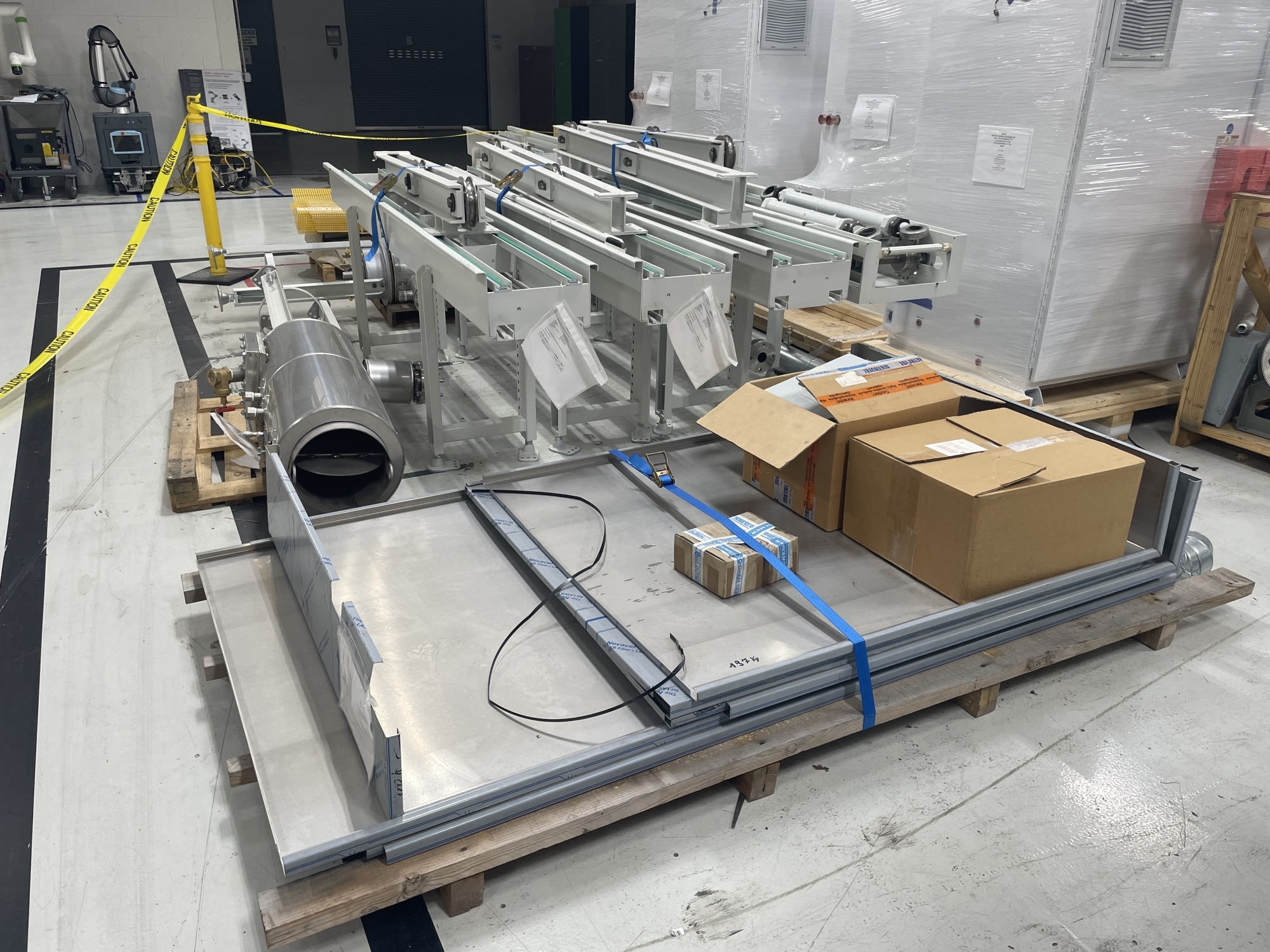

- Cross Conveyor with Chain Trolley (Circulation)
- Cross Conveyor with Chain Trolley (Circulation/Exit)
- Storage Track Connecting Cross Conveyor (Circulation)
ADDITIONAL/SPECIAL ACCESORIES

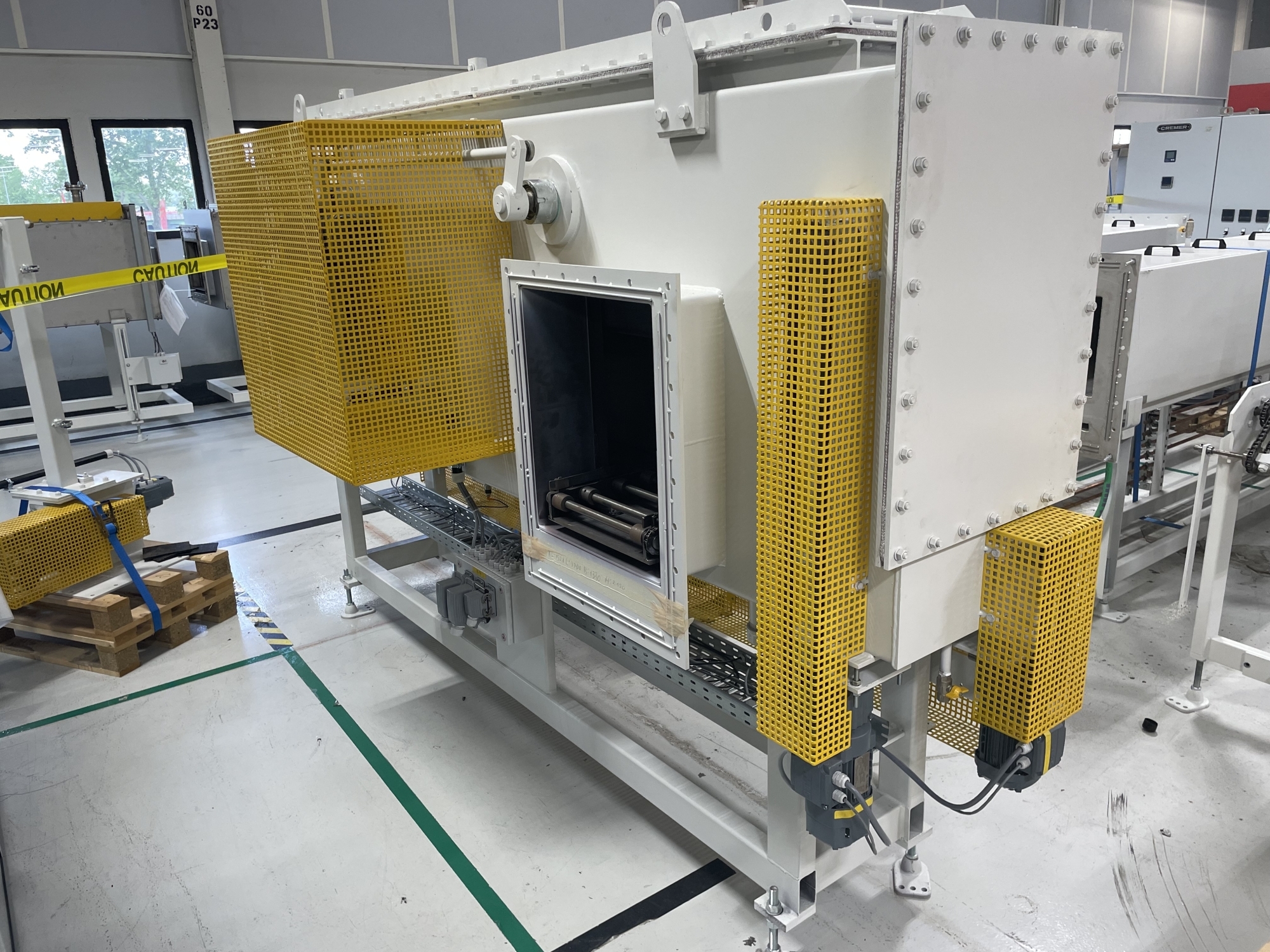

- Preheating section including double door lock chamber
- Gastight cross conveyor

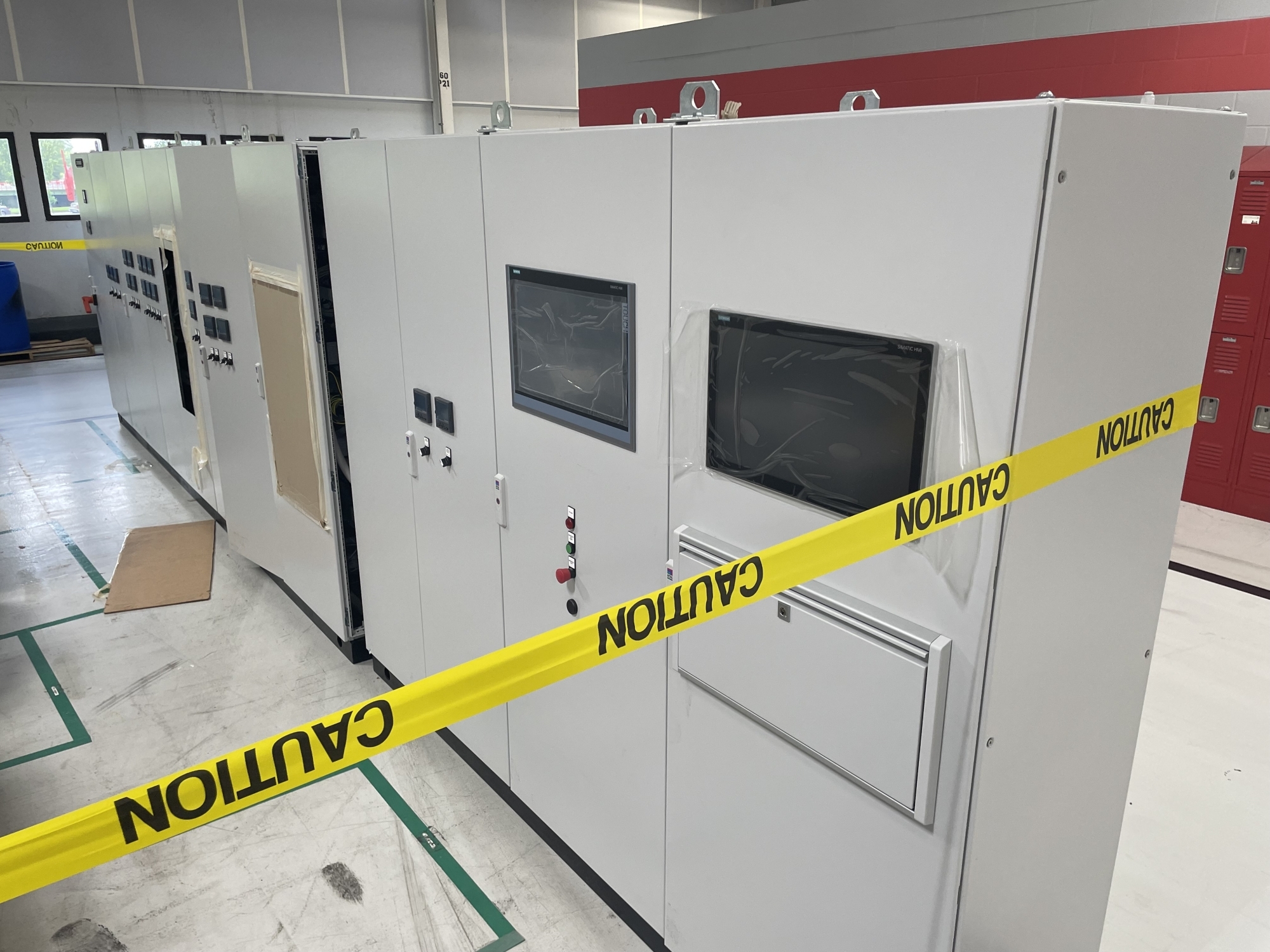

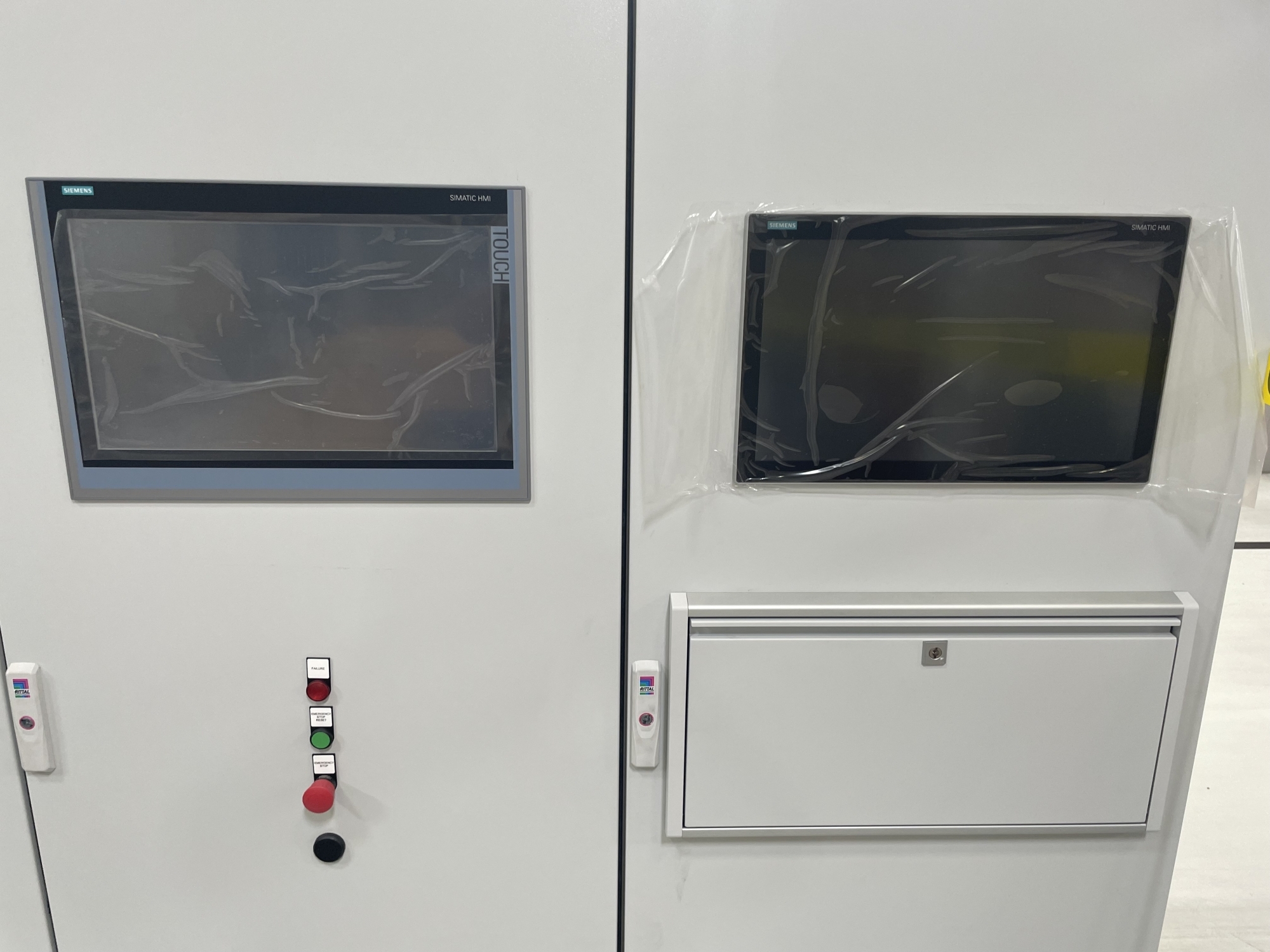

- TPC-System 4.0 Computer based visualization
- Cover lifting devices
- Cooling water basin

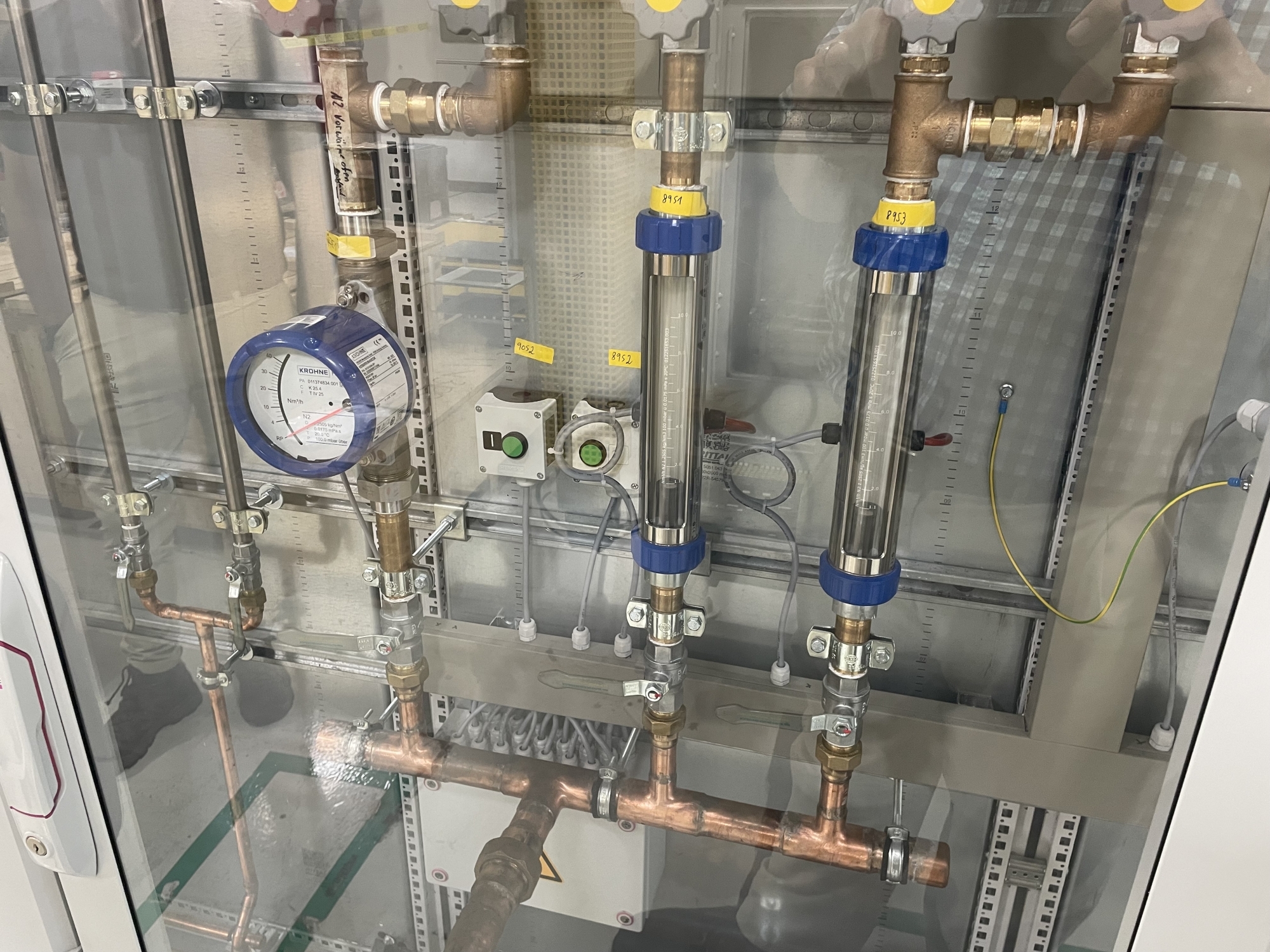

- Gas analyzing with three lambda sensors and one Dew Point sensor
- Cooling water temperature control
- UPS

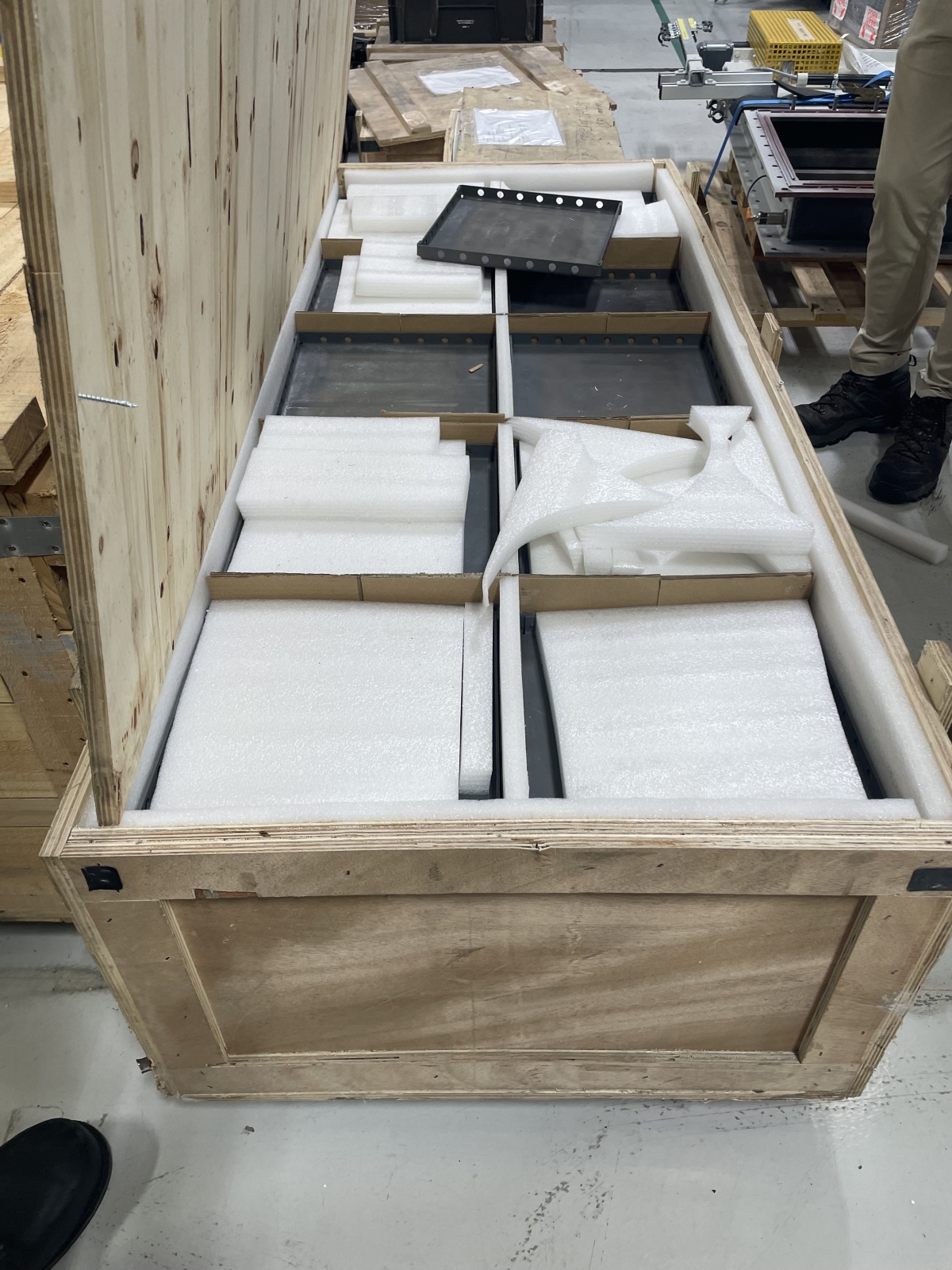

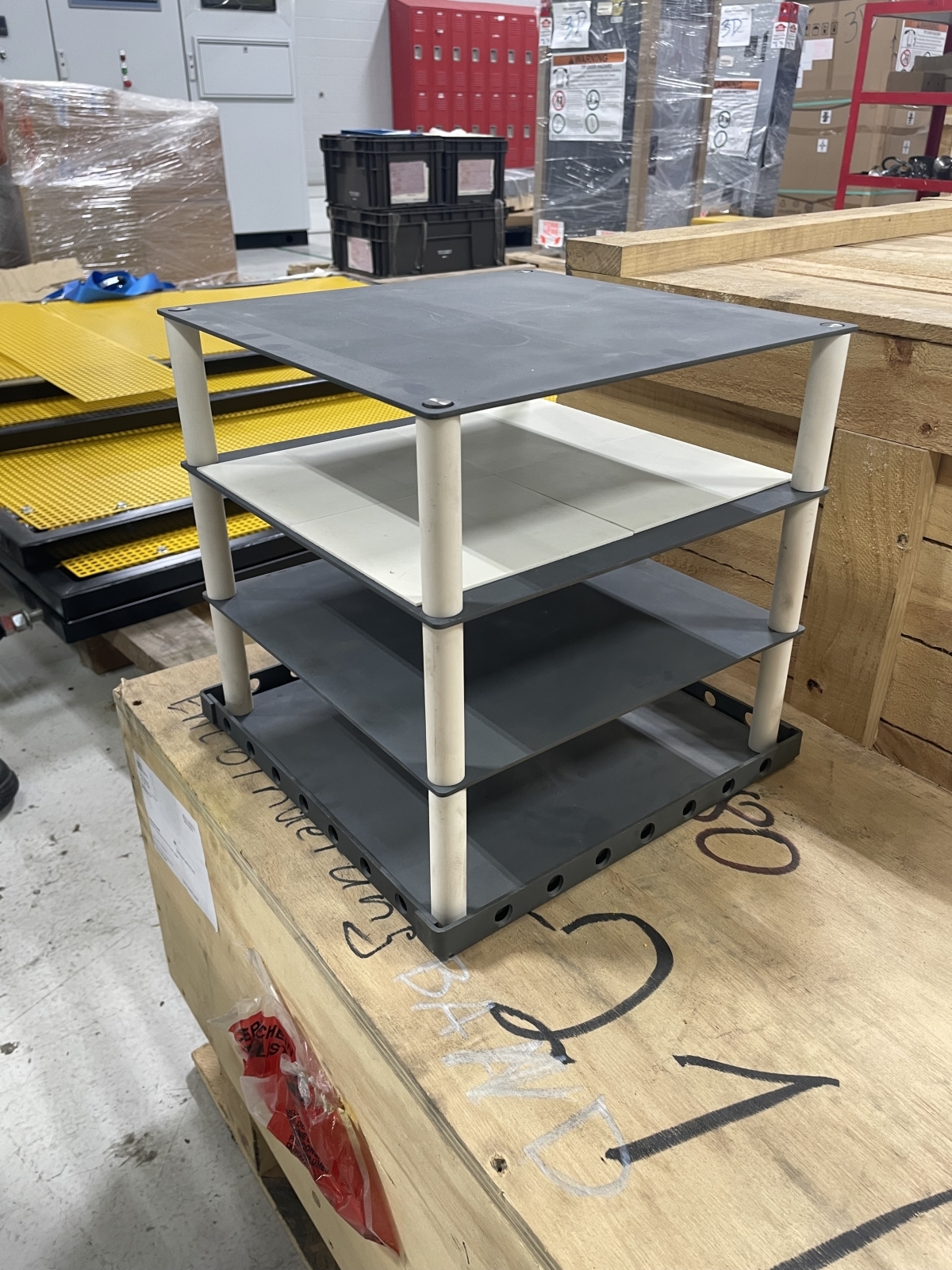

CARRIER TRAY DETAILS & COMPONENTS
- Technical Data: 330 x 330 mm Outer Size, 316 x 316 mm Useable Size, 300 mm Total Height
- 110 MoLa Trays
- 440 MoLa Plates
- 1320 Ceramic Tiles
- 240 Ceramic Spacer 47mm
- 840 Ceramic Spacer 97mm
- 240 Ceramic Spacer 147mm
- 440 MoLa Posts
